Description

Ignite 10" Dual Row Laser LED Driving Lamp Lightbar

The Ignite 10" Dual Row Laser LED Driving Lamp Lightbar is a premium lighting solution designed to elevate your off-road and on-road driving experience. With cutting-edge features and robust construction, this lightbar delivers outstanding illumination and reliability.

At the heart of this lightbar is its innovative Laser and LED Illumination Technology. Featuring 12 x 4 Watt High-Intensity LP LEDs paired with 1 x 20 Watt High-Intensity Osram Laser LEDs, it provides a powerful and adaptable lighting experience. The combination of an 8° Laser Pencil Beam and a 20° LED Flood Beam creates a versatile Combo Beam pattern, effectively addressing a wide range of lighting requirements.

Built with a black anodised polyester powder-coated extruded 6063 aluminium housing, this lightbar is both lightweight and exceptionally durable. The integrated heat sink and pressure equalising vent facilitate efficient heat dissipation, ensuring prolonged operation without the risk of overheating.

Designed for resilience, the Ignite Lightbar is UV, water, and shock resistant up to 15G, making it ideal for various weather conditions and rugged terrains. Its construction also offers resistance to rust, corrosion, and freezing, ensuring long-lasting performance.

With an IP68 and IP69K rating, this lightbar is engineered to endure the harshest environments. It operates seamlessly in temperatures ranging from -40°C to +60°C, making it suitable for diverse conditions.

The product comes with a 5-year warranty, providing assurance of quality and durability. It is also compliant with ECE R112, R10, and CE certifications, ensuring adherence to safety and regulatory standards.

In summary, the Ignite 10" Dual Row Laser LED Driving Lamp Lightbar is a top-tier lighting solution that combines exceptional performance with rugged durability. Its advanced Laser and LED Illumination Technology, along with its robust build and resistance features, make it a reliable choice for both off-road adventures and everyday driving.

Includes:

1 x 10" Dual Row Laser LED Driving Lamp Lightbar

Spare Parts:

INPB001 Licence Plate Mounting Bracket

Shop all lightbars

Features:

• Combined Laser and LED Illumination Technology

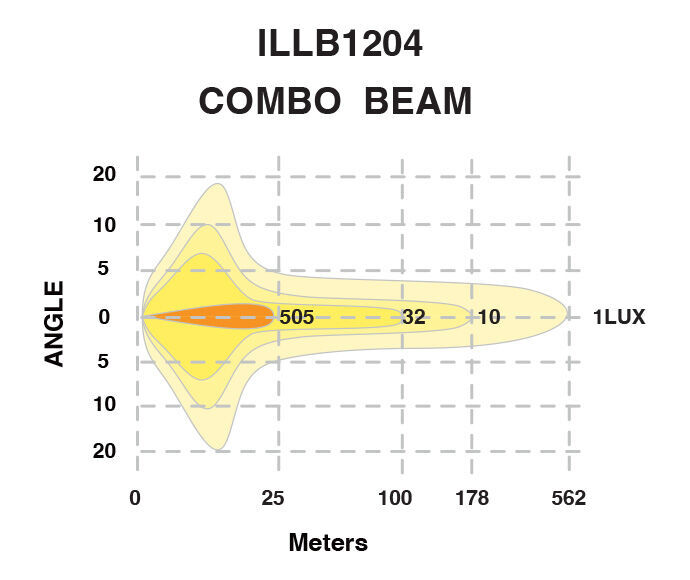

• 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern

• Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens

• Integrated Electronic Thermal Management (ETM)

• Black Anodised Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent

• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets

• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along the bar's length

• 500mm Lead with 2 Pin Deutsch Plug

• Over and Under Voltage Protection

• Reverse Polarity Protection

• UV, Water and Shock resistant to 15G

• Anti Rust, corrosion and freezing resistance

• 50,000 Hours LED Lifespan

• ECE R112, R10 and CE Approved

• IP68 and IP69K Rating

• Environment Temperature: -40°C ~ +60°C

• 5 Year Warranty

Specifications:

Type: LED

Beam Type: Combined

Mount: Bottom and Side Brackets

IP Rating: IP68 and IP69K Rated

Voltage: Multivolt (9 - 36V)

Power: Watt

No. of Rows: 2

No. of LEDs: 12 x 4 Watt High Intensity LP LEDs and 1 x 20 Watt High Intensity Osram Laser LED

Effective Lumens: 5,400

Raw Lumens: 6,400

Colour Temp: 6,000K

Current Draw: 4.9A @ 12V, 2.5A @ 24V

Max Visibility: 1 Lux @ 562m

Peak Beam Intensity: 317,000cd

Height: 65mm

Width: 274mm

Depth: 57mm

SKU: ILLB1204

Barcode #: 9323327947010

Brand: Ignite
