Description

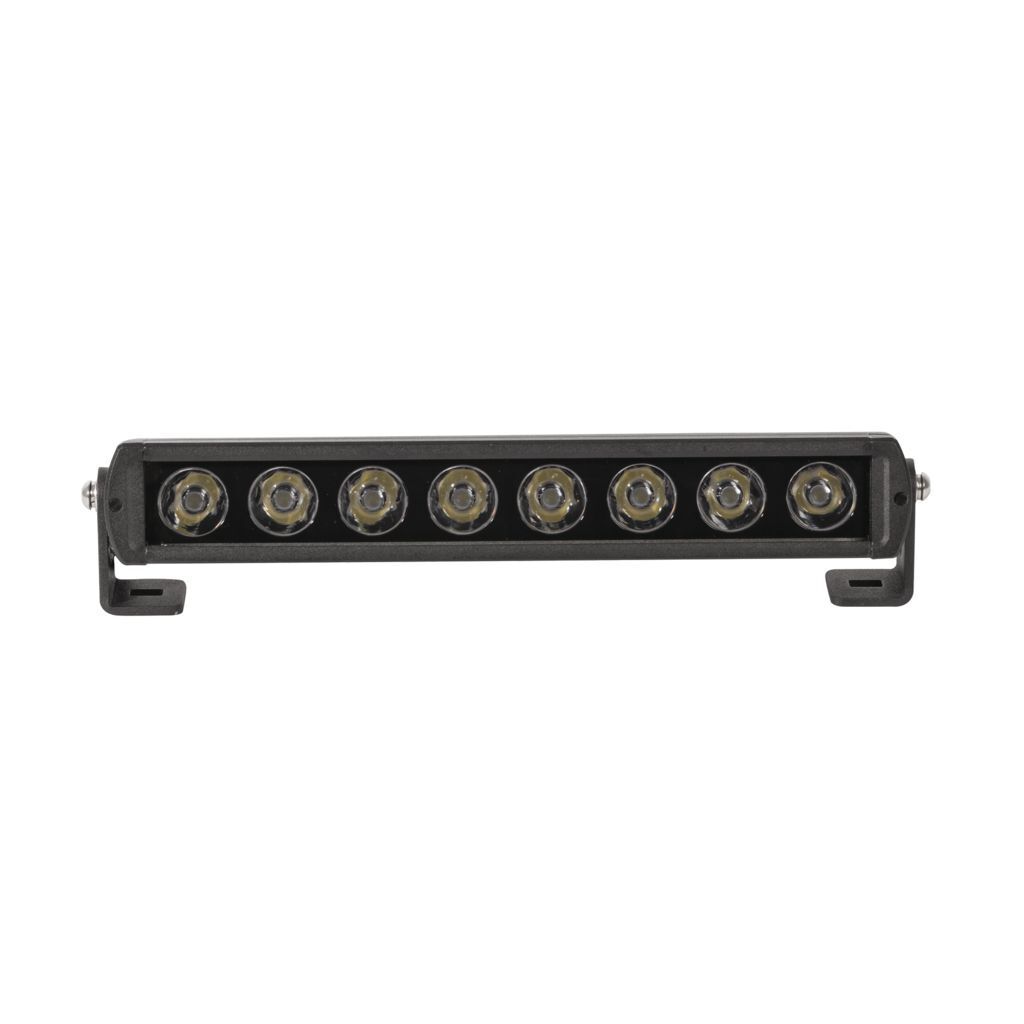

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 80 Watt. This high-performance lightbar features Integrated Electronic Thermal Management (ETM) for optimal heat dissipation. Constructed from Black Powder Coated Extruded 6063 Aluminium, it includes an integrated Heat-Sink and Pressure Equalising Vent for durability and efficiency.

Equipped with Dual Mounting Systems, the lightbar allows for versatile installation with Bottom Mount Brackets and Side Mount Brackets. The Cross Slider Bracket Assembly enables the Bottom Brackets to be positioned anywhere along the length of the bar, providing flexibility in mounting options.

With a 500mm Lead and 2 Pin Deutsch Plug, this lightbar is designed for easy connectivity. It features Over and Under Voltage Protection, as well as Reverse Polarity Protection, ensuring reliable operation in various conditions.

Utilizing 8 x 10 Watt High Intensity Osram LEDs, this lightbar delivers an impressive 8,280 Raw Lumens, with a beam pattern of 35 Degrees Flood (Spread). The lightbar is UV, Water, and Shock resistant, boasting a lifespan of 50,000 hours.

It meets ECE R112, R10, and CE standards, with an IP68 and IP69K rating for water and dust resistance. Operating in extreme temperatures from -40°C to +60°C, it is built to withstand the toughest environments.

Backed by a 5 Year Warranty, the Ignite SX Series Lightbar is a reliable choice for 4WD enthusiasts looking for high-quality lighting solutions. Spare parts available include various mounting brackets for customized installation.

Current Draw: 5amp @ 12 Volt and 2.6amp @ 24 Volt. Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens ensures light transmittance greater than 95%.

Specifications

Beam Type: Flood

Depth (mm): 70

Height (mm): 56

Rows: Single

Mount: Other

No. of LED: 8

Series: Other

Type: LED

Voltage: Multivolt

Watts: Other

Width (mm): 350

SKU: ILB350FB

Barcode #: 9323327944475

Brand: Ignite
