Description

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 160 Watt. This lightbar features a proprietary Polycarbonate TIR Optical System Reflector Technology paired with a durable Lexan Polycarbonate Lens, ensuring light transmittance greater than 95%. It is equipped with Integrated Electronic Thermal Management (ETM) to maintain optimal performance.

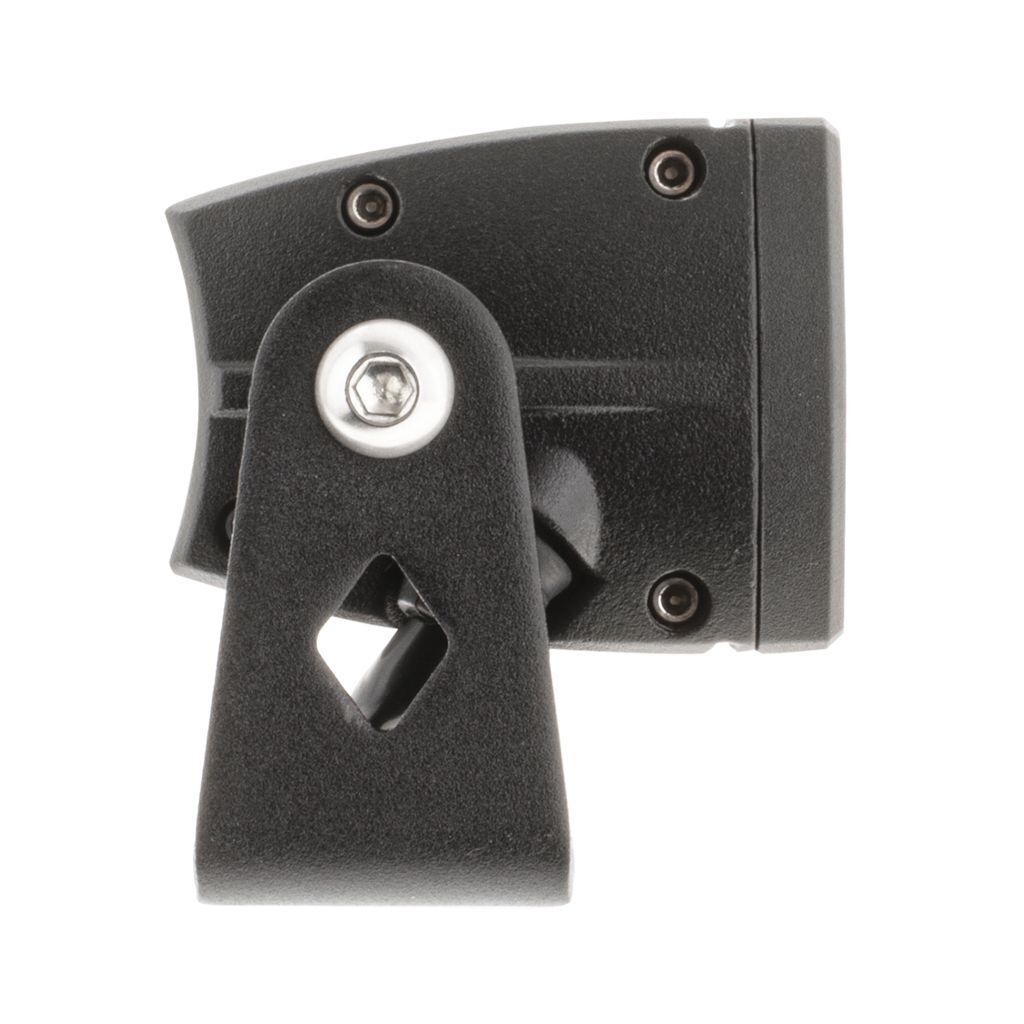

The housing is constructed from black powder-coated extruded 6063 aluminium, featuring an integrated heat-sink and pressure equalizing vent for superior durability. The lightbar offers dual mounting systems with bottom and side mount brackets, and a cross slider bracket assembly that allows for flexible positioning along the bar's length.

It comes with a 500mm lead and a 2 Pin Deutsch plug, along with a stylish chrome fascia. The lightbar is designed with over and under voltage protection, reverse polarity protection, and is UV, water, and shock resistant, boasting a lifespan of 50,000 hours.

It meets ECE R112, R10, and CE standards, with an IP68 and IP69K rating, making it suitable for extreme conditions with an operating temperature range of -40°C to +60°C. Backed by a 5-year warranty, this lightbar is a reliable choice for any 4WD enthusiast.

Spare Parts Available:

Combined Spot (Pencil) and Flood (Spread) Beam Patterns: 15 Degrees, 35 Degrees.

Mounting Brackets:

• IBB50MM Round Bullbar Mounting Bracket 50mm
• IBB64MM Round Bullbar Mounting Bracket 64mm
• IBB76MM Round Bullbar Mounting Bracket 76mm
• IAS40MM 40mm Spacer Mounting Bracket
• IBB01 Back Mounting Bracket
• IBB02 Spare Bottom Mounting Bracket

Specifications:

• 16 x 10 Watt High Intensity Osram LEDs
• 16,560 Raw Lumens and 6,000K
• 1 Lux @ 531m and 281,961cd Peak Beam Intensity
• Current Draw: 10.3amp @ 12 Volt and 5.2amp @ 24 Volt
