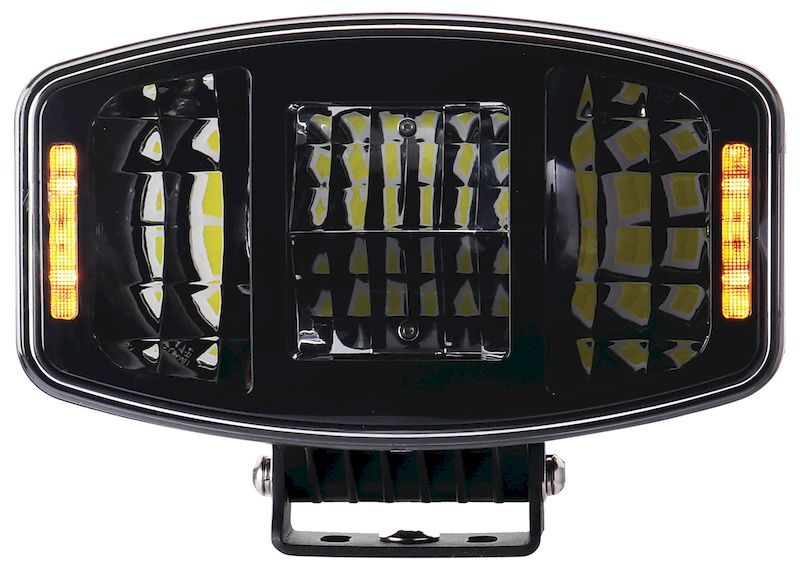

With amber position & white front position lamp function
Driving beam
1 Lux @ 425m
10,000 Raw & 8,500 Effective Lumens
180,180cd peak beam intensity
4 x 25W high intensity LED’s
6,000K colour temperature
9 – 36V Multi voltage
Low Current Draw: 6.5A @ 12V & 3.3A @ 24V
Light transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black powder coated aluminium (ADC12) housing
Weight: 1.95kg
IP68 & IP69K Rating: Water & Dust Proof
UV, Rust, Corrosion, Freezing & Shock Resistance
Reverse Polarity Protection
Over & Under Voltage Protection
ECE R112 (Ref No. 37.5), R10, R7 & CE Approved
LED Lifespan: 50,000 Hours
Working Temperature: -40°C ~ +60°C
