This kit is a complete Suspension Lift Kit with Koni 90 Series Raid Shocks, Front Raised King Coil Springs, Rear Parabolic Leaf Springs and required fitting components.

Koni 90 Series Raid shocks are a twin-tube hydraulic unit designed as the ultimate shock for comfort, ride control and off-road use. Designed with a huge 70mm outer body for maximum oil volume to fight against shock fade with efficient heat dissipation. This unit is suitable for off-roading, desert use and outback tracks and is proven on the Canning Stock Route. Koni 90 Series shock absorbers have the ability to adjust the rebound forces to combat general wear and tear of the unit over time to ensure you are getting the maximum life span and value from your shocks. Adjustments can also be made to fine tune the damper to perform as required allowing more control over the ride quality.

King Springs are manufactured here in Australia using X5K Steel, this new generation High Strength Spring Steel can with-stand higher operating stresses and has superior resistance to sag, improved toughness and improved corrosion fatigue properties. Fitting an aftermarket raised spring is ideal for vehicles fitted with accessories, heavily laden vehicles, improved load carrying abilities and increased ground clearance.

Parabolic Leaf Springs are different to the conventional multi-leaf spring pack as they are designed with minimal leaves. A parabolic leaf spring will consist of 2-3 leaves and is therefore suitable for minimal load carrying. The design is intended to provide improved comfort and ride quality and is only available for a small number of applications.

Additionally greasable pins, shackles, urethane spring bush kit and U-bolts make this an all-inclusive package.

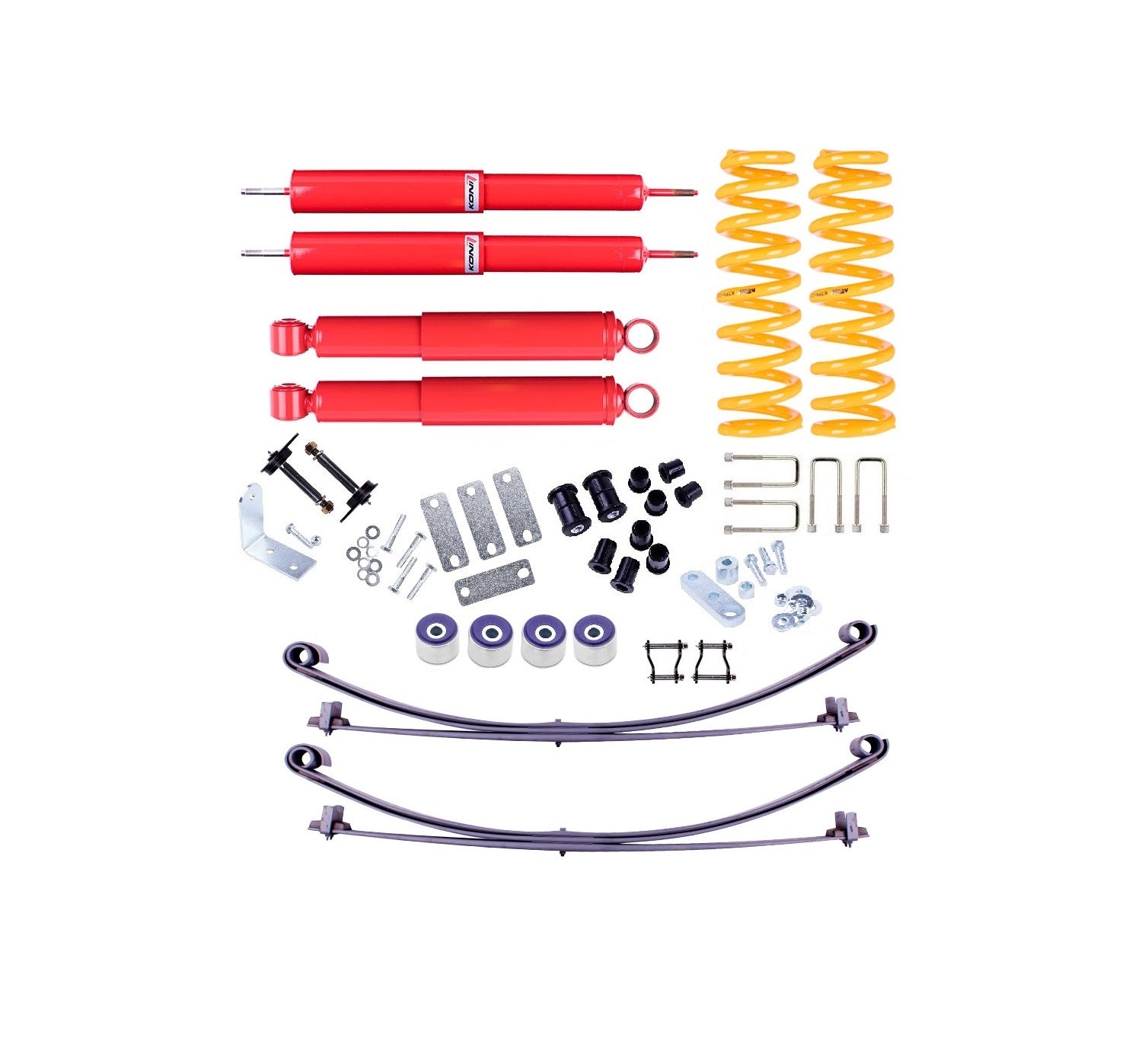

This complete suspension lift kit comprises of the following products:

1 Pair Koni 90 Series Raid Front Shocks

1 Pair Koni 90 Series Raid Rear Shocks

1 Pair Front Raised King Coil Springs

1 Pair Rear Parabolic Leaf Springs suitable for 0-300kg approx.

1 Tough Dog Spring Bush Kit

1 Pair Tough Dog Greasable Shackles

1 Pair Tough Dog Greasable Pins

1 Tough Dog Swaybar Spacer Kit

1 Tough Dog Brake Bias Bracket Required for Pre 1/2017 only

1 Tough Dog Handbrake Relocation Bracket

1 SuperPro 2 Deg Castor Correction Bushes

4 Tough Dog U-Bolts

Approximate Lift Height: 40mm

Select from the Front Accessory options to select the most appropriate spring rate for your vehicles setup.

Product Notes:
Degree of raised height may vary depending on life and/or age of the vehicle, accessories fitted, material used for accessories and some factory options.

Please note images are only a representation of the parts and may not necessarily be the image of the part number you are viewing.
