PRODUCT DESCRIPTION

Dodge Ram (2009-2025) 1500/2500 Quad Cab Wedgetail Platform Roof Rack

Name: Dodge Ram (2009-2025) 1500/2500 Quad Cab Wedgetail Platform Roof Rack
Brand: wedgetail
SKU: WT-RM15-1414
Price: 1930.3 AUD
Availability: InStock

TOUGHEST RAM ROOF RACK

Wondering how to make your Dodge RAM 1500 or 2500 the toughest in the street? Why not take a look at the all-new Wedgetail rack? The Wedgetail rack is a new generation roof rack combining the aesthetics and functionality of the new generation composite style assembled rack with the traditional strength and proven identity of an Australian manufacturer. Wedgetail roof racks integrate the all-new Wedge-lock glass reinforced corners that significantly increase the strength of this design, allowing us to offer you a full offroad rating regardless of what road you travel. All Wedgetail racks are manufactured here in Melbourne and Sydney Australia by longstanding industry veteran, Tradesman Roof Racks.

HOW DOES IT FIT?

The Wedgetail roof rack to suit the RAM 1500 and 2500 fits by securing a small bracket to the existing 8 mm hardware positions and then is sealed to the roof using suitable natural cure silicon. Once these are fitted we attach our Wedge-wing one piece mounting kit to which the Wedgetail platform connects. The advantages of this kind of mounting system don't just stop with a higher load rating and improved aesthetics, but it also allows for easy removal. The Wedgetail is wholly removed from the vehicle via four bolts, leaving only the four small brackets sealed to the roof.

HOW DO ACCESSORIES ATTACH?

The Wedgetail platform uses sturdy crossbars that run to the left and right of the vehicle. This crossbar incorporates a heavy-duty channel top and bottom. These channels allow any Wedgetail accessories to be quickly locked in or out; this also means that a large variety of alternative accessories can easily be fitted to the Wedgetail rack if necessary.

Translation missing: en.sections.featured_product.gallery_thumbnail_alt

WIND NOISE?

All Wedgetail racks come standard with a wind deflector to minimise wind noise as much as possible. As well as this Wedgetail racks also include our unique Wedge-flow crossbar design which is the culmination of years of design experience in minimising wind noise. The Wedgetail rack to suit the RAM 1500 and 2500 is no different; we understand how frustrating a noisy roof rack can be and have put every effort into ensuring that the Wedgetail rack is as quiet as it can be.

LOAD RATING?

One thing you can be sure about with a Wedgetail rack is that no matter what road you are on in this country our full load rating will apply. Wedgetail racks do not need to be de-rated in offroad conditions due to the design and construction methods used, including our wedge-lock corners. The load rating for the Wedgetail rack fitted to a RAM 1500 and 2500 is 100 kg. However, you must be aware of your vehicle's roof loading. This information will be available from Dodge. It is essential that you take the weight of the Wedgetail platform off your roof rating, and this will give you your legal carrying capacity (the reason we don't list this on the website is that it can vary between model variants).

Features

The Wedgetail platform roof rack has been developed to fill the need for a new generation composite assembly platform roof rack with the strength to maintain its full load rating on the toughest of off-road tracks.

Built to fit a wide range of 4x4 utes and wagons and selected vans, the Wedgetail platform roof rack is fitted onto a set of mounting rails that are bolted to mounting lugs connected into the sub-structure of the roof or onto the roof gutters and held in place by bolt-on clips.

These mounts spread the weight of the roof rack and its load over the whole mounting system and have the strength to cope with extended periods of off-road use.

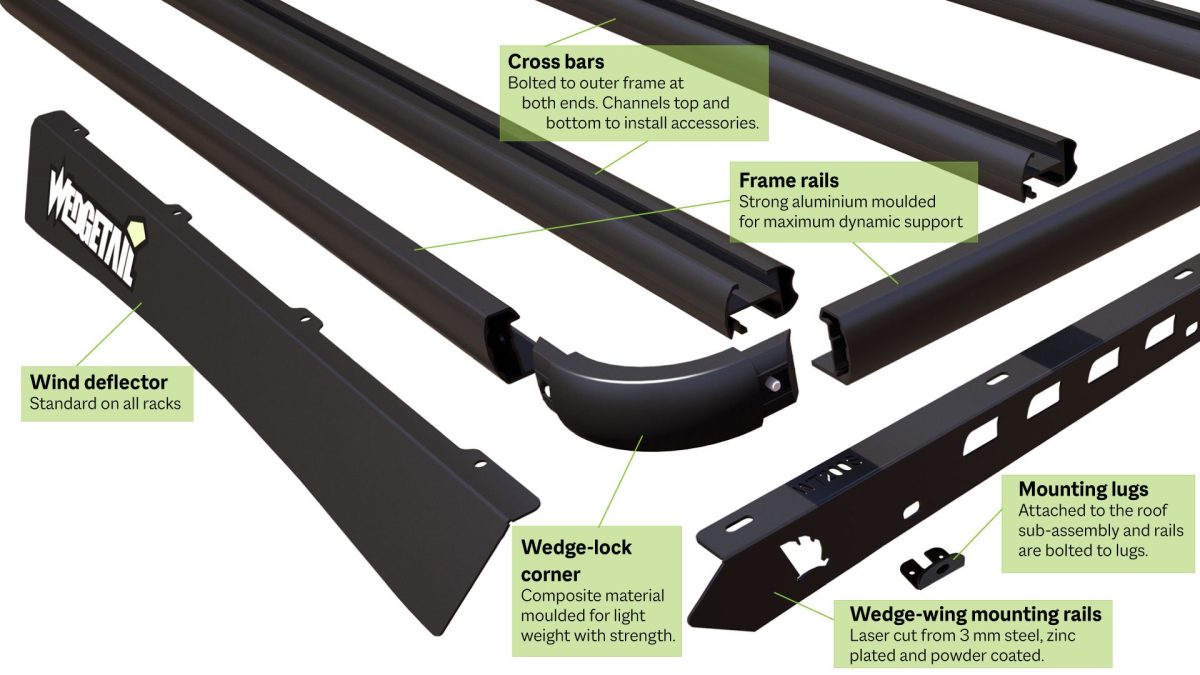

Exploded view of the front corner of a Wedgetail rack showing the components that make up the rack with names and descriptions placed on each component.

FRAME AND CROSSBARS

Manufactured using 6060 grade aluminium and extruded in Australia to custom profiles for use as frame components or as crossbars. The frame components are designed for maximum dynamic strength while the crossbars are designed to withstand the direct downwards pressures generated by the weight of items carried on the rack or by accessories fitted on the crossbars.

The frame bars are pre-punched with holes at between 250 and 310 mm spacing for locating of crossbars and fixing of wind deflectors.

All bar components are powder coated in matt black.

Translation missing: en.sections.featured_product.gallery_thumbnail_alt

WEDGE-LOCK CORNER UNITS

The corner units are moulded using a composite of nylon and glass-reinforcing mixed with other strengthening substances. Once cast the corner units are machined to remove surplus materials and mounting holes are drilled.

The Wedge-lock corner units have a flanged nut inserted into the outside of the bolt hole. The ends of the corner units are fitted into the frame rails and 8 mm stainless steel bolts are used to fix them in place, creating a strong joint.

Specifications

Part Number: WT-RM15-1414

Included: WTP-1414
& WTM-RM15-1414

Width: 1450 mm

Length: 1400 mm

Weight: 24 kg

Fit time: 90 minutes
