EGR RollTrac Electric E3 - GWM Cannon 2020-Onwards

• The World's Best Electric Roller Cover
• Integration to vehicles central locking system
• Weather resistant - aluminium finish

Product Info

NOTE: Will not fit 2024 Cannon 'Alpha'

Upgrade your GWM Cannon 2020 with the EGR RollTrac Electric E3, the ultimate solution for secure, convenient, and stylish tonneau cover protection. Designed and tested in Australia, this electric roller cover features robust aluminium slats with a sleek black powdercoated finish, offering a low-profile look while providing unbeatable strength and durability against the harshest Australian conditions.

New features include factory key operation for remote opening and closing via your vehicle’s key, in-cabin controls through door-lock buttons, improved firmware, and enhanced drive-pin durability. The unique design ensures your tub remains safe and dry, with aluminium slats locking securely in place and oversized drainage tubes efficiently directing water away from your tray.

Operating the RollTrac Electric E3 is effortless, with smooth side-rail controls for opening, closing, or pausing your cover. Integrated ECU remote central locking allows your tonneau cover to lock simultaneously with your vehicle for complete security. Add accessories easily with the built-in universal T-Rail system, and illuminate your tub at night using the standard LED lighting.

With its combination of security, convenience, and style, the EGR RollTrac Electric E3 is the perfect upgrade for your GWM Cannon 2020. Buy now at EGR Auto for the ultimate electric tonneau cover experience.

Package Dimensions: 1700mm x 550mm x 380mm
Package Weight: 68kg

Features

STRONG DESIGN

The EGR RollTrac is operated by onboard buttons located on both rear corners of the side rails for easy access and use.

SMART TECH

With an on-board ECU (Electronic Control Unit) connects to the vehicle's electrical system allowing the EGR Rolltrac to integrate with the vehicle's central locking. Once the vehicle is locked, cover cannot be opened.

SECURE

EGR RollTrac Electric includes vehicle integrated central locking. Once the vehicle is locked, cover cannot be opened.

WEATHER RESISTANT

The EGR RollTrac has been tested for all climate and weather conditions. Dry dusty desert, wet tropical rainfall, salt spraying beach driving, and even extreme cold and snow.

LOW MAINTENANCE

The EGR RollTrac has an easy accessible canister to allow easy cleaning and removal of debris.

ACCESSORIES

A universal T-Rail system is built into the EGR RollTrac side arms allowing for pre-existing accessory compatibility.

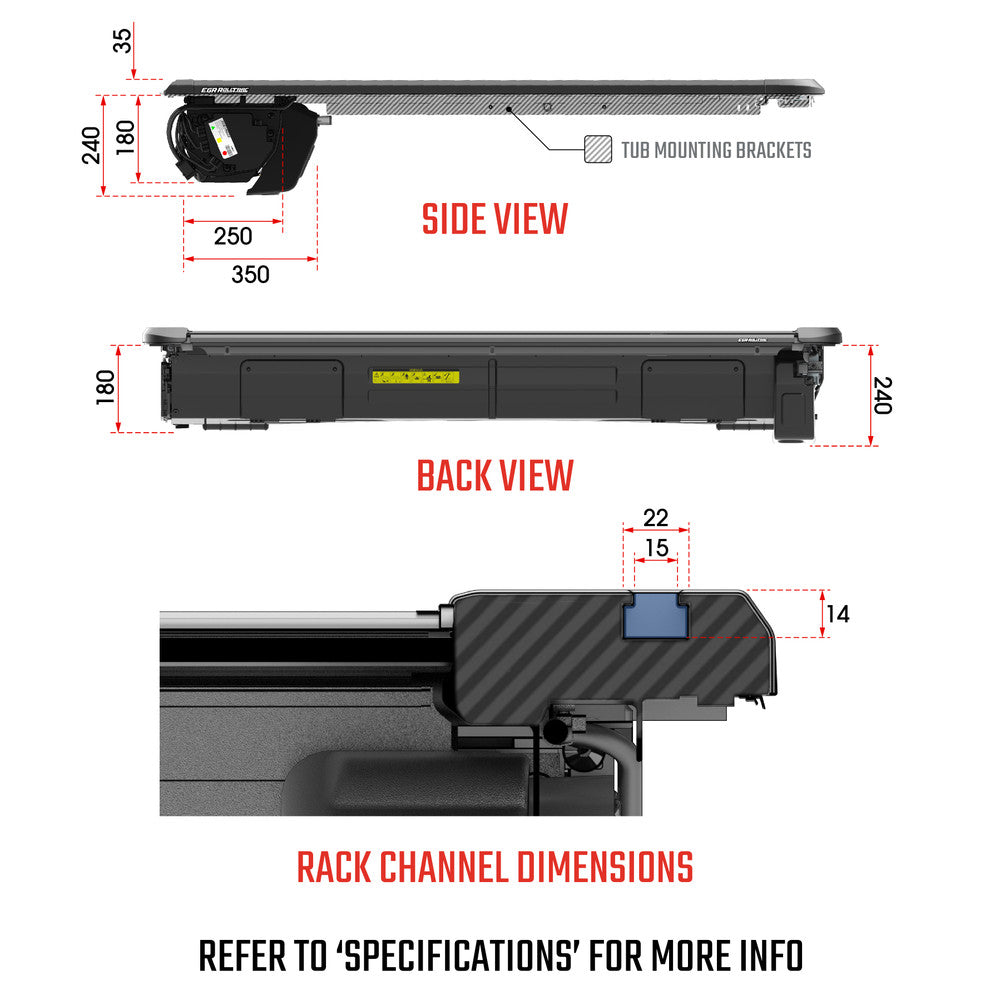

Specifications

Specs for GWM Cannon 2020-Onwards

Width between rack channels were measured at front and back and were the same - parallel, so only one measurement listed above. Length is side rail only. If wanting to fit over the front end cap, add the length of the front end cap to length (33mm)

Delivery & Fitment

Installation

FAQs

Is the EGR RollTrac waterproof?

EGR states that the EGR RollTrac is weather resistant. The EGR RollTrac should not leak through the top slat surface, the side rails, canister, or the drainage tube system.

Where does the water and rainfall go?

The EGR RollTrac aluminium slats will not allow water to penetrate between them, and any water that falls onto the broad surface area, is dispersed off to the side railing. The water flows through a channel in the side railing, either to the front canister or rear corners, then exits through large drainage tubes.

What is the warranty period on EGR RollTrac?

EGR warrants that the EGR RollTrac will be free from defects in material and workmanship for a period of three (3) years from the retail date of purchase. Warranty must be claimed with an original sales receipt showing proof of purchase. It is recommended that warranty claims be lodged via a place of purchase/fitment

What is the load capacity of EGR RollTrac?

EGR RollTrac has a top load capacity of between 90-150kg depending on your vehicle manufacturer. Please review the yellow warning label on your EGR RollTrac for the nominated capacity for your vehicle. Also please note, your load capacity is also affected and determined by the brand of racking you choose to accessories your EGR RollTrac with. Different Rack manufacturers have different ratings for their racking components. If in doubt, review your warning label located on the canister of the EGR RollTrac unit.

Will there be any drilling into the vehicle body when installing EGR RollTrac?

Whilst the EGR RollTrac fits the vehicle using a clamp system, there is drilling required to fit the tailgate stop rail, and the drainage tubes.

Is EGR RollTrac compatible with tub liners?

Yes, with some modification required. Precise trimming requirements are thoroughly outlined in the fitting instructions for each product.

How do I clean my EGR RollTrac?

For the surface, a standard car wash works just fine. For clearing debris, leaves, or other organic material that has fallen onto the EGR RollTrac and collected in the canister, open the access ports of the canister and remove any items sitting idle in the bottom.

Will installing the EGR RollTrac affect my fuel economy?

Recent University studies have demonstrated that installing a flat cover onto the bed of your pick up can improve your fuel consumption by 7-10%. Installing accessories onto the EGR RollTrac such as bike carriers and loading rails may reduce the amount of benefit.

Will my EGR RollTrac discolour over time?

The UV-stable powder coat finish of the EGR RollTrac has been tested in the harshest conditions and complies with all leading motor car company requirements. You should not expect any discolouring of your EGR RollTrac.

How much does EGR RollTrac weigh?

Electric units weigh approx 50kg (Boxed weight is 65kg)
Manual units weigh approx 45kg (Boxed weight is 60kg)

Which EGR RollTrac accessories fit my vehicle?

All major racking brands will work on the EGR RollTrac. Yakima, Pro Rack, Rhino, Thule, Rola, should all be able to adapt and integrate into our side rail channeling. Other accessories include EGR's own 150kg Cross Bar Kit, OEM Sports Bar Integration Kits and Dust Defenders, as well as extra LED lighting.

What do I do if I have a warranty issue with my EGR RollTrac?

In the instance of lodging a warranty claim, please return to the place of purchase or fitment, and lodge with them directly, as essentially, they sold you the product.

• They will then claim on your behalf, to EGR.
• EGR will request the following (perhaps provide it to your place of purchase to save processing time)
• Product & Part Number
• Description of the warranty issue
• Copy of original receipt
• Images of the issue and serial number label

Are spare parts available for EGR RollTrac?

EGR has a range of service kits for interchangeable parts on EGR RollTrac.

Can I install EGR RollTrac myself?

We recommend that your EGR RollTrac is installed by an EGR-accredited fitter. Correctly fitting the EGR RollTrac can be an extensive procedure for the un-trained, and access to specialised tools and technical know-how improves the overall result. Poor fitment can reduce the quality of the product you have purchased.

My EGR RollTrac is not tracking smoothly

Check that the side rails are fitted parallel. Also, check there is nothing in the sidetracking that could be in the way of the slats tracking smoothly. Check your owner's manual for steps on recalibrating your unit.

Does the EGR RollTrac lock my tailgate?

The EGR RollTrac - Electric integrates with your vehicle's central locking system. Locking your vehicle dis-engages the roll cover buttons from operating, preventing the unit from operating until you unlock your vehicle again.Some electric models also lock onto the tailgate using claw latches, however some other models just close against your tailgate and you would need a tailgate locking kit to support the locking of your tailgate. This is based on varying designs of vehicles and tailgates requiring updated designs of the EGR RollTrac. See the product descriptions on each listing to see which EGR RollTrac Electric locks onto or into the tailgate.

What happens if my car battery is flat? Will I be able to open the EGR RollTrac Electric?

The Electric EGR RollTrac is equipped with a manual override function and key lock. Using the supplied key, you will be able to unlock the Electric EGR RollTrac and operate it manually in the event of a battery or other electrical failure.

Leadtime

EGR Auto For Australian Conditions - Proudly distributed by PPD Performance Please note, these are made to order - generally 3-4 weeks lead time
