EGR RollTrac Manual - Mazda BT-50 2011-2019

• The World's Best Roller Cover
• Built-in latch with 100mm sliding increments
• Easily locked with a turn of a key

Product Info

Upgrade your Mazda BT-50 (2011-2019) with the EGR RollTrac Manual – a premium, Aussie-built roller tonneau cover engineered for durability, ease of use and long-lasting reliability. Designed specifically for your BT-50 dual-cab, this cover features interlocking aluminium slats finished in a tough black powder-coat that gives your tray a sleek, low-profile look without compromising strength.

Opening and closing the cover is simple thanks to the built-in latch handle. Slide it smoothly into position and lock it at 100 mm increments for flexible access. Two keys are included so you can secure the tub without fuss. The slat design locks tightly to create a barrier that keeps water out and your gear safe, backed by thousands of hours of testing in harsh Aussie climates.

Functionality meets versatility with the integrated T-Rail system, allowing you to fit racks, tie-down gear or add accessories as needed.

With its purpose-built fitment for your BT-50 and a design that complements work or weekend use, this RollTrac Manual delivers both style and performance. Ready for the road? Order yours today and give your ute’s tray the upgrade it deserves.

Features

STRONG DESIGN

A robust and sleek design with no compromise on quality. The exterior is finished in a lightly textured satin black powder coat and distinguished by soft edges and clearly defined formal contours. The EGR RollTrac compliments your vehicle's aesthetics perfectly.

FUNCTIONALITY

Multi positional handle that allows you to lock off the cover at 100mm increments allowing easy access to your tub. The handle rests flush with the cover so you maintain that sleek, smooth finish.

SECURE

Strong aluminium slats that interlock and cannot be cut or forced open creating the best security on the market. EGR RollTrac Manual includes tailgate locking with the supplied key.

WEATHER RESISTANT

The EGR RollTrac has been tested for all climate and weather conditions. Dry dusty desert, wet tropical rainfall, salt spraying beach driving, and even extreme cold and snow.

LOW MAINTENANCE

The EGR RollTrac has an easy accessible canister to allow easy cleaning and removal of debris.

ACCESSORIES

A universal T-Rail system is built into the EGR RollTrac side arms allowing for pre-existing accessory compatibility.

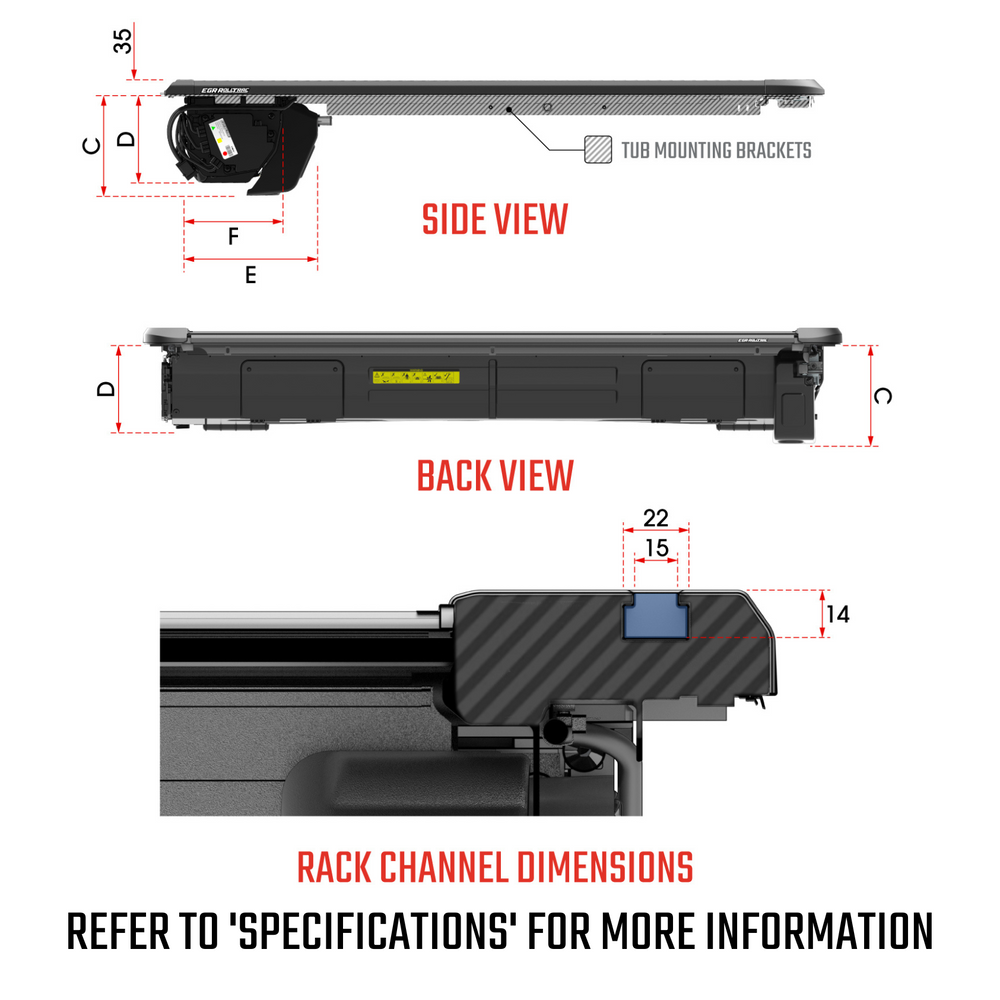

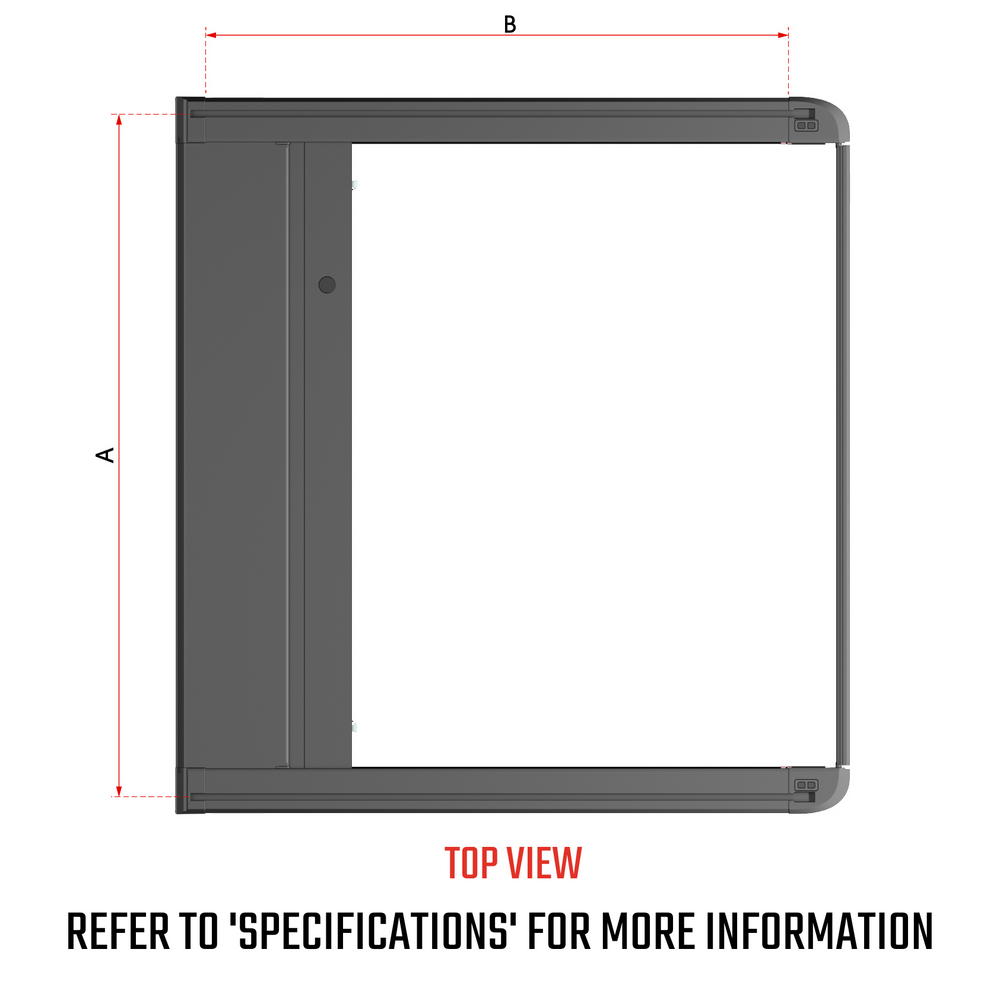

Specifications

Specs for Mazda BT-50 2011-2017

Specs for Mazda BT-50 2018-2019

Width between rack channels were measured at front and back and were the same - parallel, so only one measurement listed above. Length is side rail only. If wanting to fit over the front end cap, add the length of the front end cap to length (33mm)

Delivery & Fitment

Installation

FAQs

Is the EGR RollTrac waterproof?

EGR states that the EGR RollTrac is weather resistant. The EGR RollTrac should not leak through the top slat surface, the side rails, canister, or the drainage tube system.

Where does the water and rainfall go?

The EGR RollTrac aluminium slats will not allow water to penetrate between them, and any water that falls onto the broad surface area, is dispersed off to the side railing. The water flows through a channel in the side railing, either to the front canister or rear corners, then exits through large drainage tubes.

What is the warranty period on EGR RollTrac?

EGR warrants that the EGR RollTrac will be free from defects in material and workmanship for a period of three (3) years from the retail date of purchase. Warranty must be claimed with an original sales receipt showing proof of purchase. It is recommended that warranty claims be lodged via a place of purchase/fitment

What is the load capacity of the EGR RollTrac?

EGR RollTrac has a top load capacity of between 90-150kg depending on your vehicle manufacturer. Please review the yellow warning label on your EGR RollTrac for the nominated capacity for your vehicle. Also please note, your load capacity is also affected and determined by the brand of racking you choose to accessories your EGR RollTrac with. Different Rack manufacturers have different ratings for their racking components. If in doubt, review your warning label located on the canister of the EGR RollTrac unit.

Will there be any drilling into the vehicle body when installing EGR RollTrac?

Whilst the EGR RollTrac fits the vehicle using a clamp system, there is drilling required to fit the tailgate stop rail, and the drainage tubes.

Is EGR RollTrac compatible with tub liners?

Yes, with some modification required. Precise trimming requirements are thoroughly outlined in the fitting instructions for each product.

How do I clean my EGR RollTrac?

For the surface, a standard car wash works just fine. For clearing debris, leaves, or other organic material that has fallen onto the EGR RollTrac and collected in the canister, open the access ports of the canister and remove any items sitting idle in the bottom.

Will installing the EGR RollTrac affect my fuel economy?

Recent University studies have demonstrated that installing a flat cover onto the bed of your pick up can improve your fuel consumption by 7-10%. Installing accessories onto the EGR RollTrac such as bike carriers and loading rails may reduce the amount of benefit.

Will my EGR RollTrac discolour over time?

The UV-stable powder coat finish of the EGR RollTrac has been tested in the harshest conditions and complies with all leading motor car company requirements. You should not expect any discolouring of your EGR RollTrac.

How much does EGR RollTrac weigh?

Electric units weigh approx 50kg (Boxed weight is 65kg)
Manual units weigh approx 45kg (Boxed weight is 60kg)

Which EGR RollTrac accessories fit my vehicle?

All major racking brands will work on the EGR RollTrac. Yakima, Pro Rack, Rhino, Thule, Rola, should all be able to adapt and integrate into our side rail channeling. Other accessories include EGR's own 150kg Cross Bar Kit, OEM Sports Bar Integration Kits and Dust Defenders, as well as extra LED lighting.

What do I do if I have a warranty issue with my EGR RollTrac?

In the instance of lodging a warranty claim, please return to the place of purchase or fitment, and lodge with them directly, as essentially, they sold you the product.

• They will then claim on your behalf, to EGR.
• EGR will request the following (perhaps provide it to your place of purchase to save processing time)
• Product & Part Number
• Description of the warranty issue
• Copy of original receipt
• Images of the issue and serial number label

Are spare parts available for EGR RollTrac?

EGR has a range of service kits for interchangeable parts on EGR RollTrac.

Can I install EGR RollTrac myself?

We recommend that your EGR RollTrac is installed by an EGR-accredited fitter. Correctly fitting the EGR RollTrac can be an extensive procedure for the un-trained, and access to specialised tools and technical know-how improves the overall result. Poor fitment can reduce the quality of the product you have purchased.

My EGR RollTrac is not tracking smoothly

Check that the side rails are fitted parallel. Also, check there is nothing in the sidetracking that could be in the way of the slats tracking smoothly. Check your owner's manual for steps on recalibrating your unit.

Does the EGR RollTrac lock my tailgate?

The EGR RollTrac Manual is locked by closing the handle into the closed position. This then prevents the roll cover from moving. To secure it fully locked, the roll cover is closed against the tailgate, handle lowered, then two claw latches will lock the roll cover onto your tailgate securely, preventing the lowering of your tailgate. You can then lock the roll cover with the key provided to prevent the handle being operational.

Leadtime

EGR Auto For Australian Conditions - Proudly distributed by PPD Performance Please note, these are made to order - generally 3-4 weeks lead time
