Images may be generic, please see "Images" tab for correct images of product.

Please check the Compatibility tab or use the Fitment Checker to confirm this product is suitable for your vehicle before purchasing.

Specifications

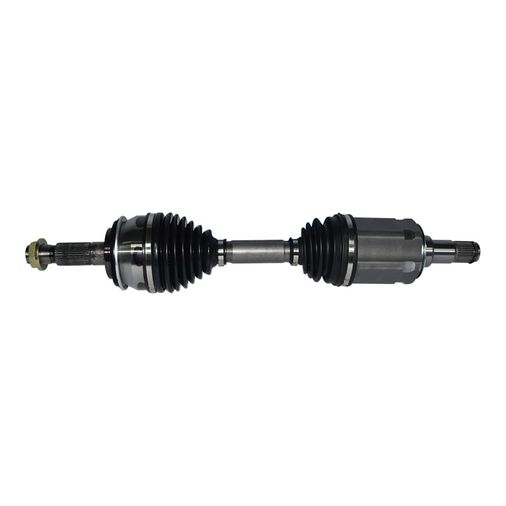

• Type: Driveshaft
• Side: Suits passenger side
• Height: Suits raised height applications
• Transmission: Suits all transmissions

Built for tough Australian conditions, Roadsafe 4WD CV shafts are a direct-fit replacement across more than 180 popular 4WD applications, with options available for both standard-height and lifted vehicles. Each shaft is supplied as a complete assembly with the required hardware, making installation straightforward and ensuring correct fitment to OEM specifications.

Roadsafe CV shafts use high-torsion steel axle shafts, hardened and precision-machined splines, quality neoprene CV boots with stainless steel clamps, and long-life moly grease. CV joints, races and ball tracks are accurately machined to deliver smooth operation, durability and long service life.

Selected lifted-vehicle applications are modified from the original OE design to maintain correct CV cage alignment as suspension geometry changes, helping improve strength and wear characteristics compared with simply using a standard-height shaft outside its intended operating range.

Features

• CV joints machined accurately and precisely, with hardening where required
• High torsion steel axle shaft with a protective coating to prevent corrosion
• All rolling components, race and ball tracks precisely machined for smooth, quiet operation and long life
• All splines hardened and machined to OEM specification
• High quality neoprene CV boots fitted with quality stainless steel clamps
• Top quality long lasting moly grease used in the CV joints
• Supplied complete with the hub nut, clips and washers needed to fit it
• 12 month / 20,000 km warranty

Roadsafe lists this part number for: Ford Ranger 4X4 — PX, 09/11-ON. See the vehicle compatibility guide below for this listing's own fitment.

Vehicle Compatibility

FORD RANGER XL, XLT, XLS, WILDTRAK, FX4 PX3 MFF5 — 01/2021–03/2022 — 3.2 litre DIESEL P5AT I5 20v DOHC I/C Turbo CRD 147kW

Technical warning — lifted vehicles

If a CV shaft is for a lifted vehicle, it is designed to be fitted in place of a diff drop, not as well as one.

2–3" lifted vehicles: these are not intended to be used with a diff drop. At this height it should be one or the other — it is rare that a vehicle needs both, so talk to our team before buying or installing.

3–5" lifted vehicles: these can be used with a diff drop, and the two add together for distance and alignment. A 2" diff drop with a 2" lifted CV suits roughly a 4" lift. A 4" diff drop with a 2" lifted CV would not suit a 4" lift — that combination totals 6". If in doubt, contact our team.

Not following the above can result in exploded CVs, which is not covered under warranty.

Warranty notice: when CV shafts are installed on a vehicle with a lifted ride height, the manufacturer does not offer any warranty.

Read the full notice for vehicles with modified suspension (PDF)
