Ford Ranger 4WD (2011-2018) PXI; PXII 4WD 2011-8/2018 Rancho RS40070 Front Raised Coil Springs 90-120kg
RS40070

All Rancho Springs are meticulously designed and manufactured in Australia utilizing a high-quality shot peening process that maximizes spring durability. The springs are constructed from premium high-strength silicon chrome alloy steel, which significantly enhances performance and extends the lifespan of the product.

Choosing Rancho Springs for your four-wheel drive suspension replacement offers several key advantages. The superior durability is achieved through a polyester powder coating that provides extreme protection and a premium finish. Additionally, a phosphate pre-treatment coating is applied to prevent corrosion, ensuring longevity and reliability in various conditions.

Rancho Springs deliver exceptional upgraded suspension performance, characterized by superior resistance to vehicle sag, improved towing capacity, and enhanced load-carrying capabilities. The precision of the product is guaranteed through Tenneco's controlled C.A.D. design and manufacturing process, which ensures that each spring meets high standards of quality and performance.

Approximate raised height specifications for Rancho Springs are as follows: RS40003 offers a 30mm lift suitable for loads of 0-85kg, RS40004 provides a 40mm lift for the same load range, RS40067 is designed for a 40mm lift specifically for 3.2DT models with a load capacity of 0-85kg, and RS40070 also offers a 40mm lift for 3.2DT models with a load capacity of 90-120kg, including provisions for a bar and winch.

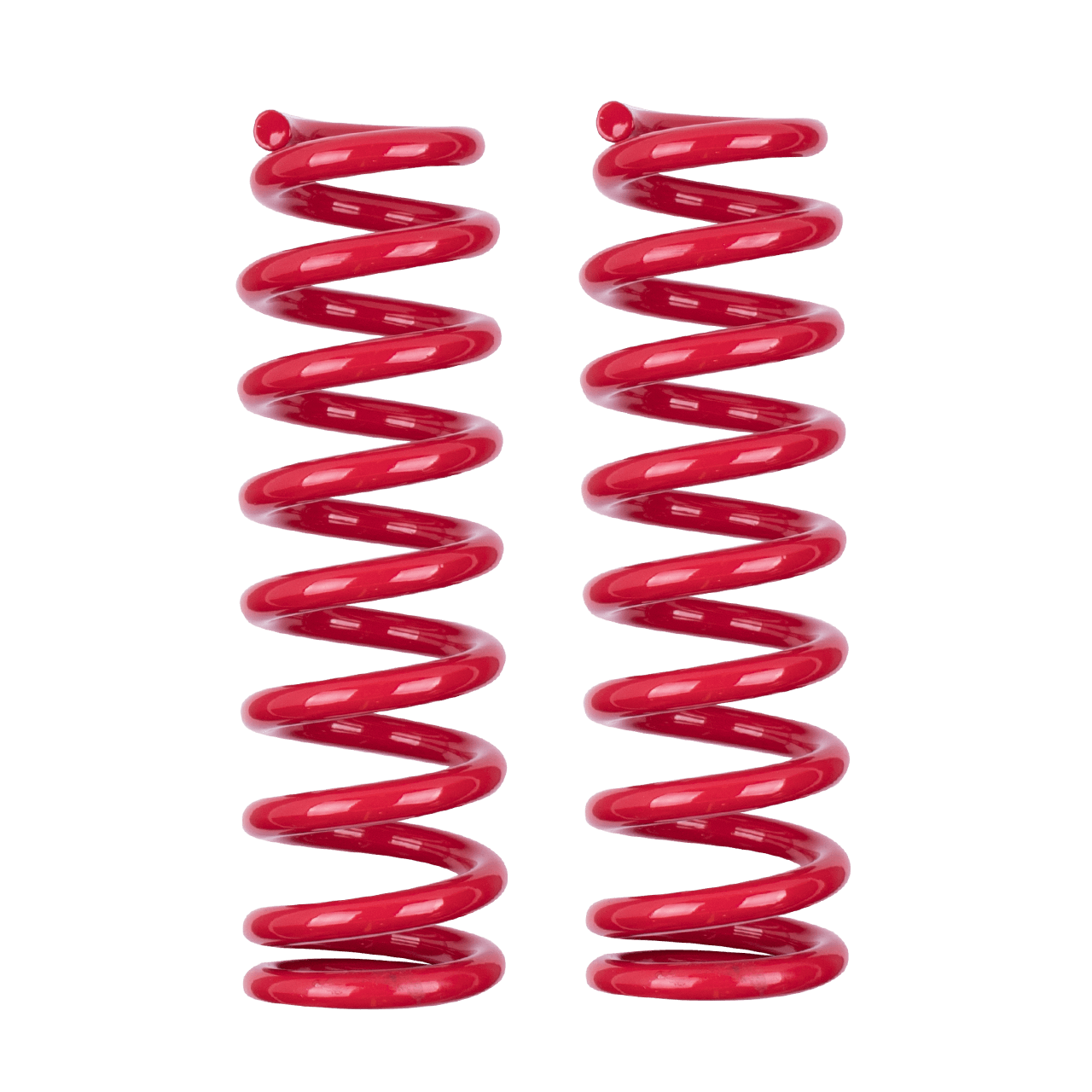

It is important to note that the degree of raised height may vary based on the life and/or age of the vehicle, the accessories fitted, the materials used for those accessories, and certain factory options. Please be aware that images provided are for representation purposes only and may not accurately depict the specific part number you are viewing.

Key Advantages of Rancho Springs

• Superior durability through polyester powder coating
• Phosphate pre-treatment coating prevents corrosion
• Excellent upgraded suspension performance
• Superior resistance to vehicle sag
• Improved towing capacity and load carrying features
• Enhanced product precision through controlled C.A.D. design

Approximate Raised Height

• RS40003 - 30mm Lift 0-85kg Up to Bar
• RS40004 - 40mm Lift 0-85kg Up to Bar
• RS40067 - 40mm Lift 3.2DT 0-85kg Up to Bar
• RS40070 - 40mm Lift 3.2DT 90-120kg Bar, Bar and Winch

Product Notes

• Degree of raised height may vary depending on life and/or age of the vehicle
• Accessories fitted may affect raised height
• Material used for accessories and some factory options may influence performance

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: 30-40mm

RS40003 - 30mm Lift 0-85kg Up to Bar
RS40004 - 40mm Lift 0-85kg Up to Bar
RS40067 - 40mm Lift 3.2DT 0-85kg Up to Bar
RS40070 - 40mm Lift 3.2DT 90-120kg Bar, Bar and Winch

Sold as a Pair.

High quality 4x4 suspension upgrades proudly sold by PPD Performance.
