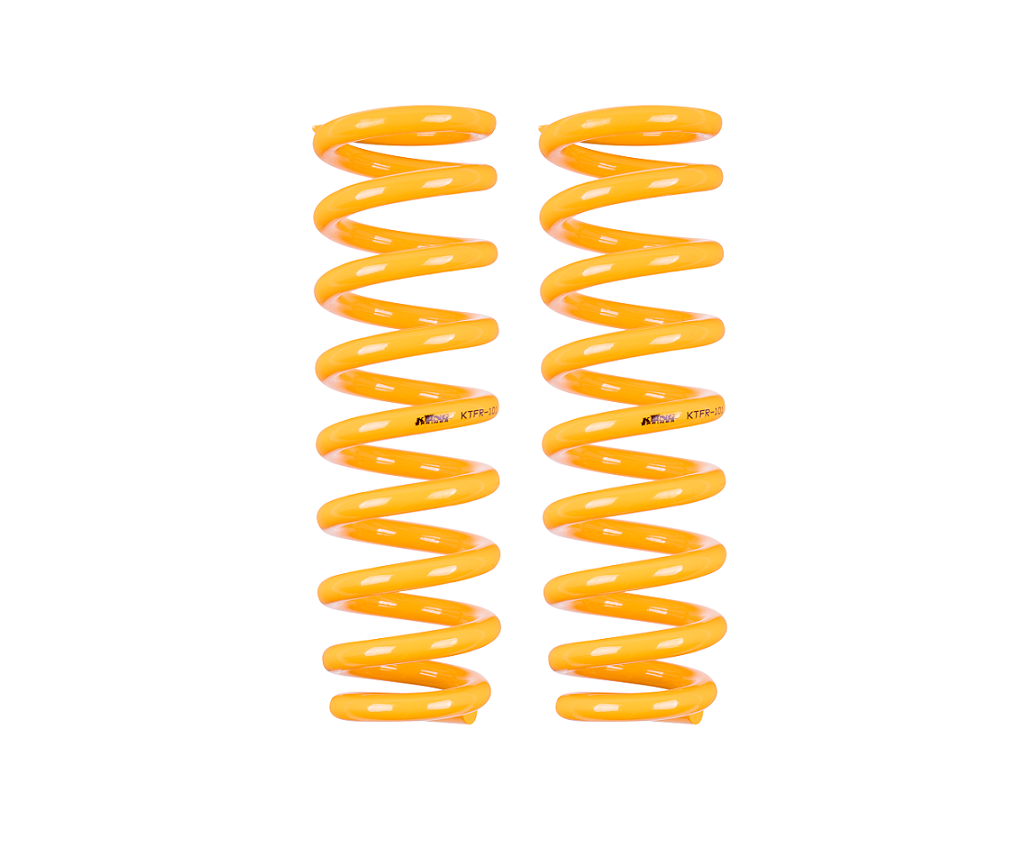

Ford Ranger 4WD (2018-2022) PXIII FX4 MAX 7/2018-4/2022 King Springs Kings Front Raised Coil Springs
KFFR 24FX4

For over 30 years, we have been a trusted stockist and distributor of King Springs in Western Australia. King Springs are proudly manufactured in Australia using advanced X5K Steel, a new generation of high-strength spring steel that is engineered to withstand higher operating stresses. This material offers superior resistance to sag, enhanced toughness, and improved corrosion fatigue properties.

Upgrading to aftermarket raised springs is particularly beneficial for vehicles equipped with additional accessories, heavily laden vehicles, and those requiring enhanced load-carrying capabilities and increased ground clearance. All King Springs heavy-duty replacement springs are designed to provide an uprated performance. The degree of uprating typically ranges from 20% to 40%, depending on the specific vehicle model.

When selecting the appropriate spring rate, it is essential to consider the fixed accessories on the vehicle. For example, the KFFR 24FX4 spring offers an approximate lift height of 20-25mm and is designed for vehicles with a steel bar weighing between 50-100kg. It is important to note that this spring is not recommended for standard applications, as the lift height may be excessive, resulting in minimal droop travel. Therefore, it is advisable to pair these raised springs with long travel shocks to ensure optimal performance.

The actual degree of height achieved may vary based on factors such as the vehicle's age, the accessories fitted, the materials used for those accessories, and certain factory options. Please be aware that images provided are for representation purposes only and may not accurately depict the specific part number you are viewing.

King Springs Information

• Wilkinson Suspension has been a WA Stockist and Distributor of King Springs for over 30 years!
• King Springs are manufactured here in Australia using X5K Steel.
• This new generation High Strength Spring Steel can withstand higher operating stresses and has superior resistance to sag.
• Improved toughness and improved corrosion fatigue properties.
• Fitting an aftermarket raised spring is ideal for vehicles fitted with accessories, heavily laden vehicles, improved load carrying abilities and increased ground clearance.
• All King Springs heavy duty replacement springs are designed to be uprated.
• The degree of uprating varies between vehicles, but can generally be stated at 20-40%.

Spring Rate Options

• Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:
• Approximate Lift Height: 20-25mm
• KFFR 24FX4 - Steel Bar 50-100kg

Product Notes

• Must have Steel Bar fitted - not recommended for Standard applications as lift height will be too high resulting in minimal droop travel.
• Recommend long travel shocks with raised springs.
• Degree of height may vary depending on life and/or age of the vehicle, accessories fitted, material used for accessories and some factory options.

Approximate Lift Height: 20-25mm

KFFR 24FX4- Steel Bar 50-100kg

Sold as a Pair.
