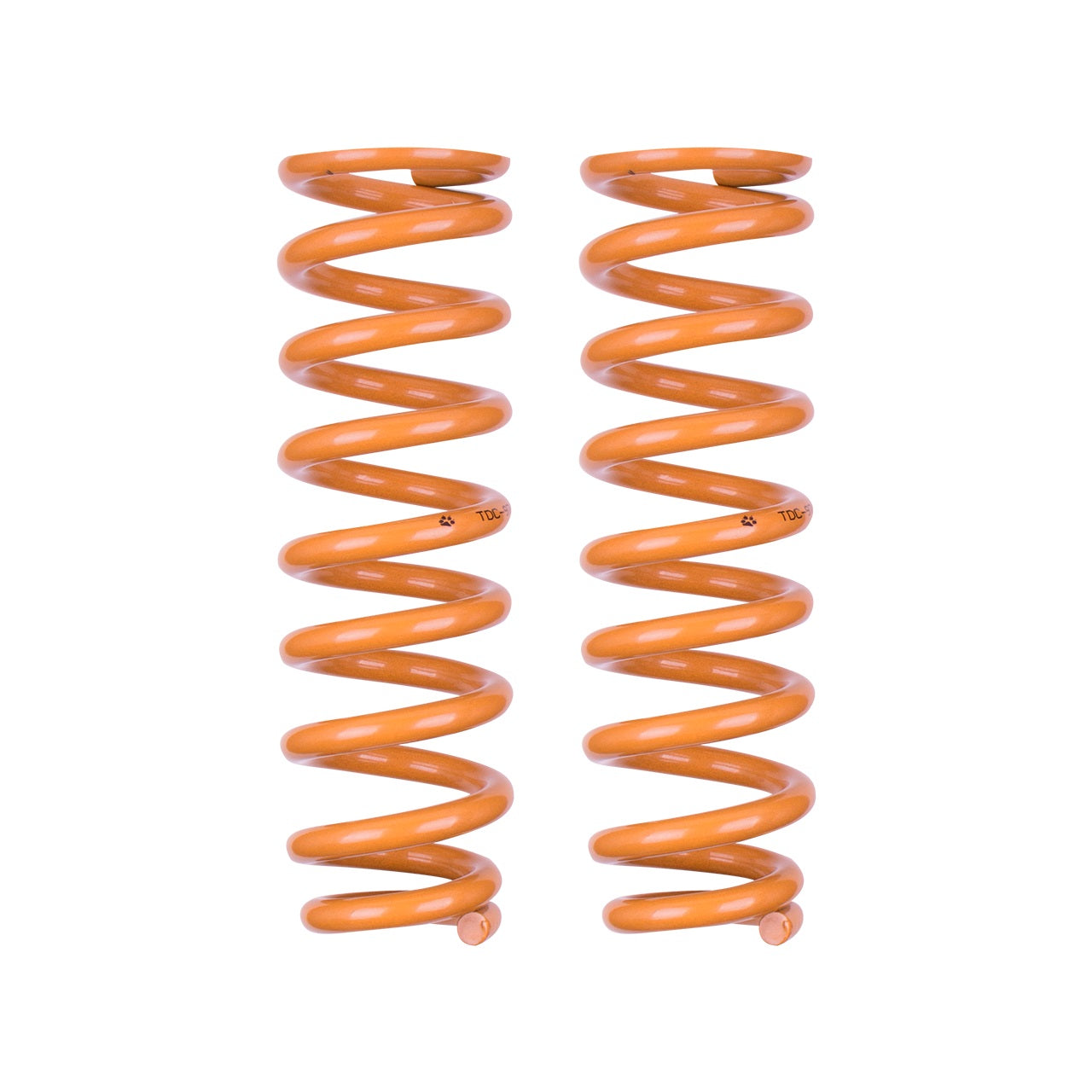

Ford Ranger 4WD (2022-2030) Next Gen 4Cyl Diesel 2022-On Tough Dog TDC1064 Tough Dog Front Raised Coil Springs
TD-TDC1064

Designed and manufactured in Australia using high-quality German X5K spring steel, Tough Dog coils are engineered to optimize performance while utilizing less material. This innovative design ensures superior ride quality and exceptional load-carrying capabilities.

The springs are crafted to retain their original memory even under heavy loads, resulting in a lighter yet more robust coil that can withstand demanding conditions.

Each coil undergoes a rigorous manufacturing process, including shot peening to relieve internal stresses, scragging, and load testing to ensure reliability. The coils are formed on precision mandrels and hot-formed to maintain their spring memory, ensuring consistent performance over time.

To enhance durability and aesthetics, Tough Dog coils feature a powder-coated finish that provides excellent corrosion resistance.

For vehicles equipped with additional accessories, Tough Dog offers a range of spring rates tailored to accommodate extra weight or constant load carrying. The approximate lift height for these coils is between 40-50mm, with specific part numbers designed for various configurations: TDC1063 for no accessories, TDC1064 for steel bars, and TDC1065 for steel bars with a winch.

It is advisable to pair these raised springs with long travel shock absorbers to maximize performance and handling capabilities.

Please note that images provided are for representation purposes only and may not accurately depict the specific part number being viewed.

Tough Dog Coils Features

• Designed and manufactured in Australia
• Made with German X5K spring steel
• Less material while maintaining superior ride quality
• Retains original memory after heavy loading
• Lighter and tougher coil
• Shot peened to relieve stress
• Scragged and load tested
• Formed on precision mandrels
• Hot formed to maintain spring memory
• Powder-coated for looks and corrosion resistance

Spring Rates for Accessories

• TDC1063 - No Accessories
• TDC1064 - Steel Bar
• TDC1065 - Steel Bar and Winch

Installation Recommendations

• We recommend fitting long travel shock absorbers with raised springs.

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: 40-50mm

TDC1063 - No Accessories
TDC1064 - Steel Bar
TDC1065 - Steel Bar and Winch

Sold as a Pair.
