Hardkorr Bluetooth Battery Monitor with High-Precision 500A Shunt
PRODUCT DESCRIPTION
The most convenient way to monitor your deep-cycle batteries.

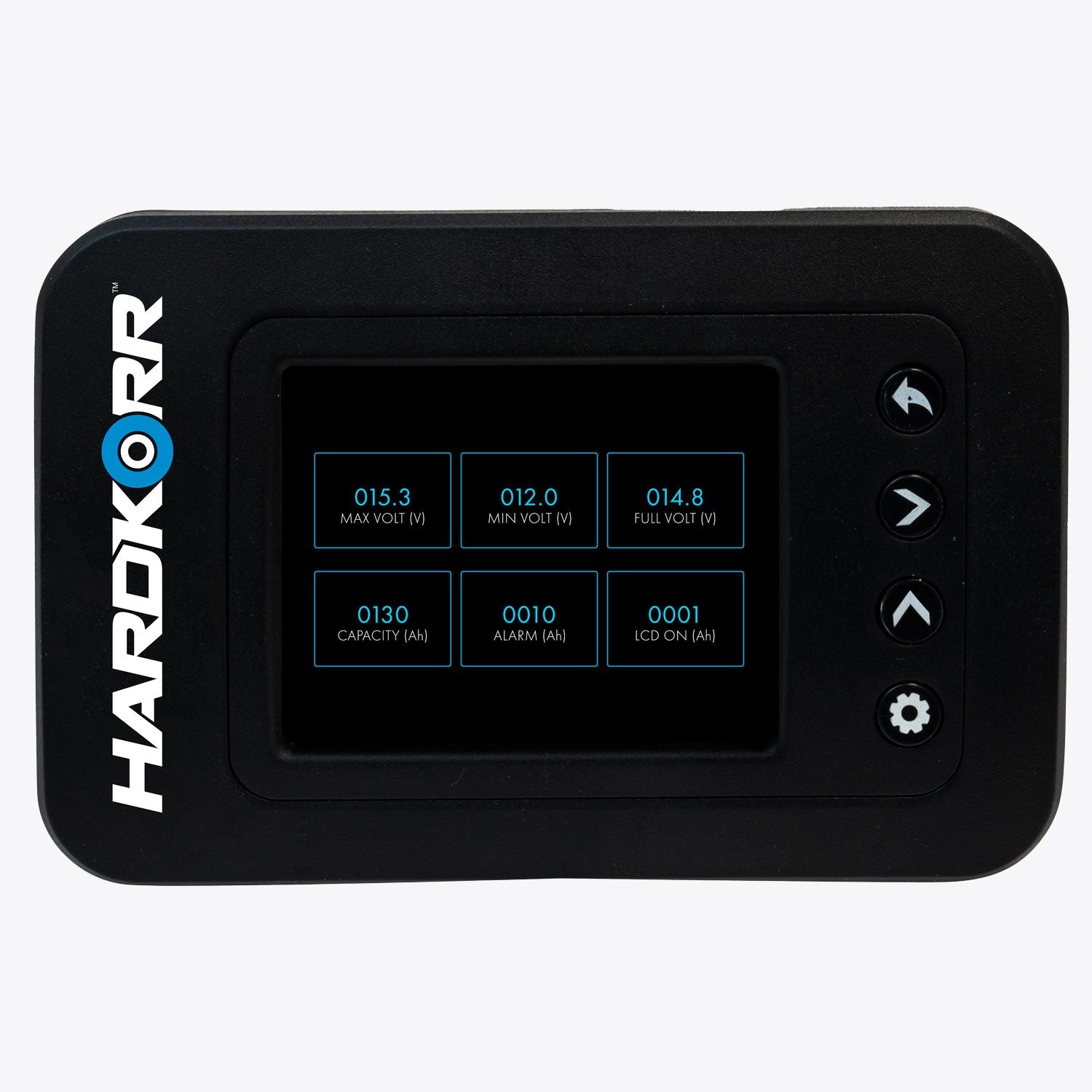

This battery monitor, also known as a coulometer, displays essential battery information through its full-colour LCD screen or by connecting your smartphone via Bluetooth®. By using a 500A shunt, highly accurate data is collected, such as charge level (Ah and %), live current draw (A), live voltage (V) and live watts (W). The monitor also includes an integrated alarm function to alert you when your battery is discharged to a set level and short circuit and reverse polarity protection technology.
It is suitable for all common battery types, including Lithium, AGM, Wet, Gel and Calcium.
What's in the Box

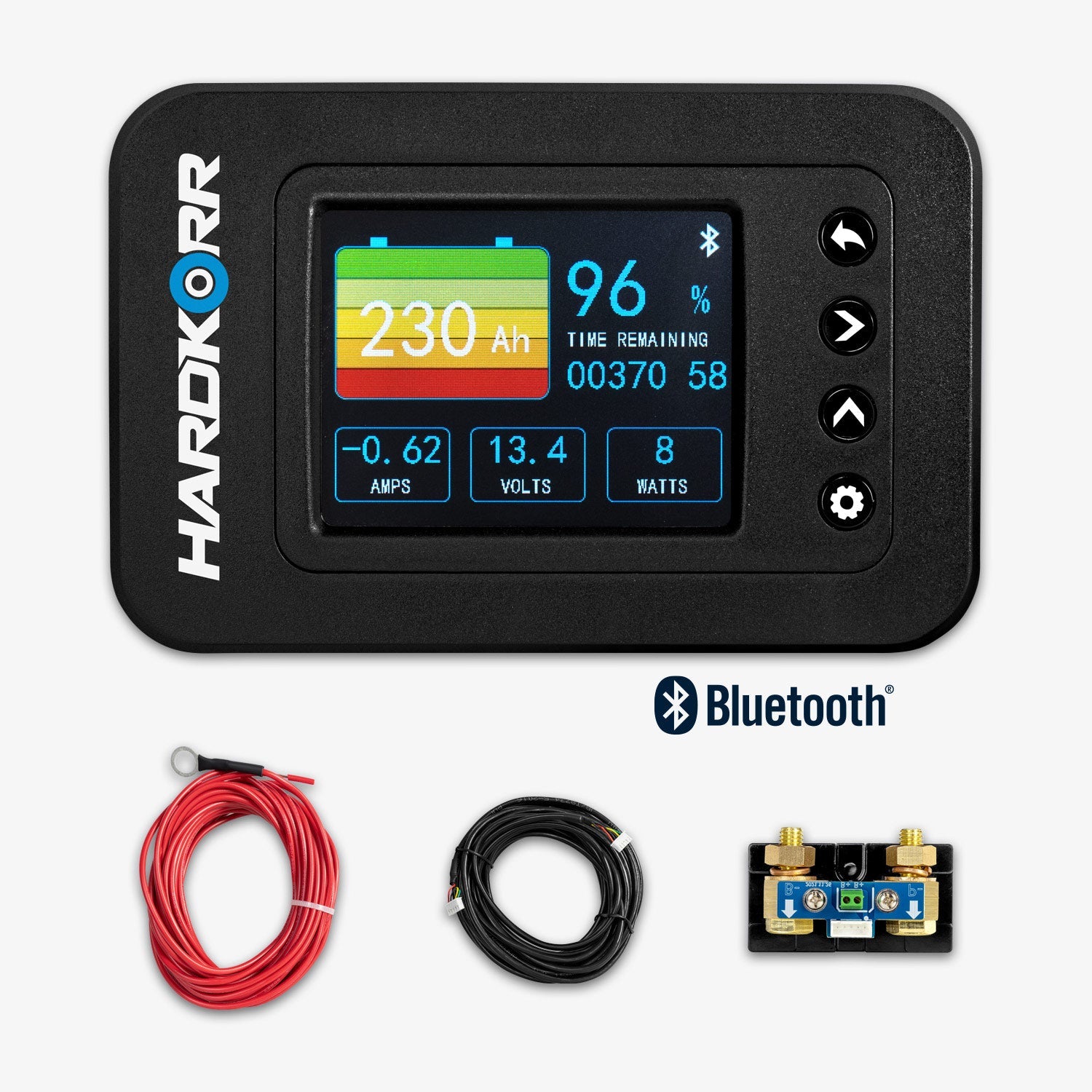

- 1 x LCD display module

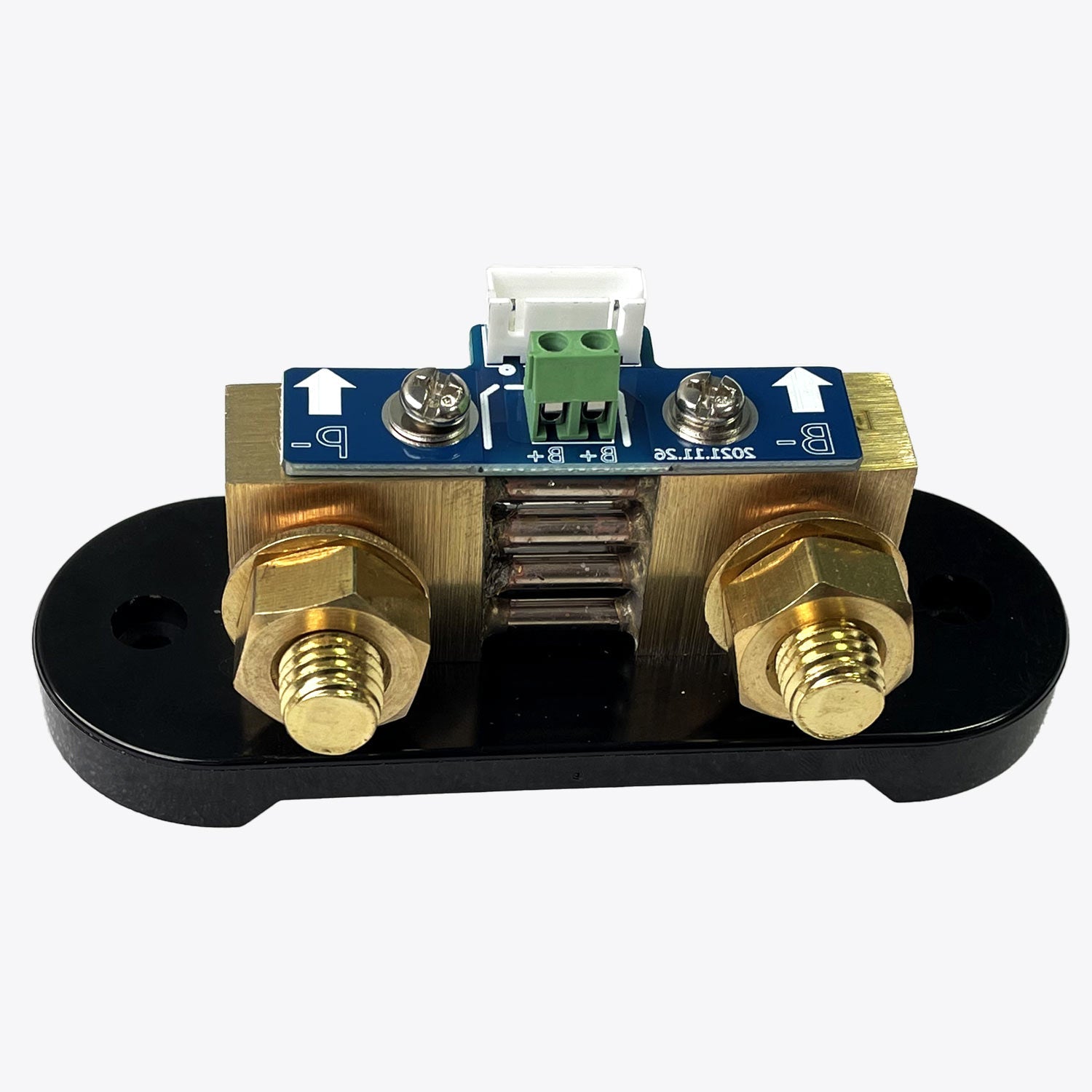

- 1 x 500A shunt
- 1 x 6m shielded cable
- 1 x 6m B+ wire
- 1 x Mounting screws and pad
- 1 x Mounting indicator card

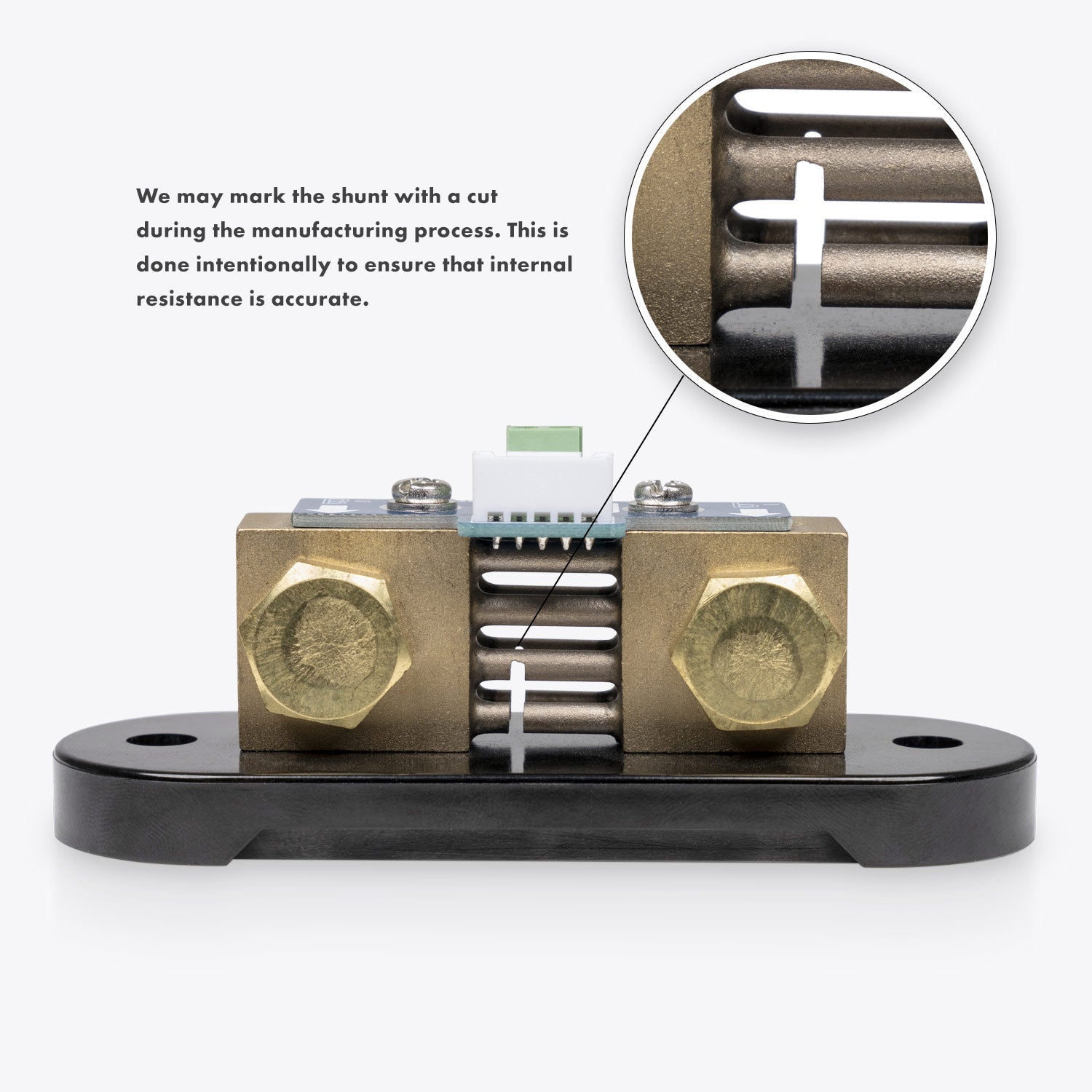

- 1 x We may mark the shunt with a cut during the manufacturing process. This is done intentionally to ensure that internal resistance is accurate.
Specifications
| Working voltage | 10-120V DC |
| Battery capacity range | 10-1000Ah |
| Max. current | 500A peak / 350A continuous |
| Accuracy | ±1% |
| Operating temperature | -20°C to 50°C |
| Weight | 110g |
| Dimensions (LCD screen) | 125(W) x 82(H) x 21(D) mm |
| Cut-out size | 106mm x 76mm |
| Certifications | EN62368-1:2014+A11:2017, EN50663:2017, RCM |
Warranty: This product has a 2 year replacement warranty.
