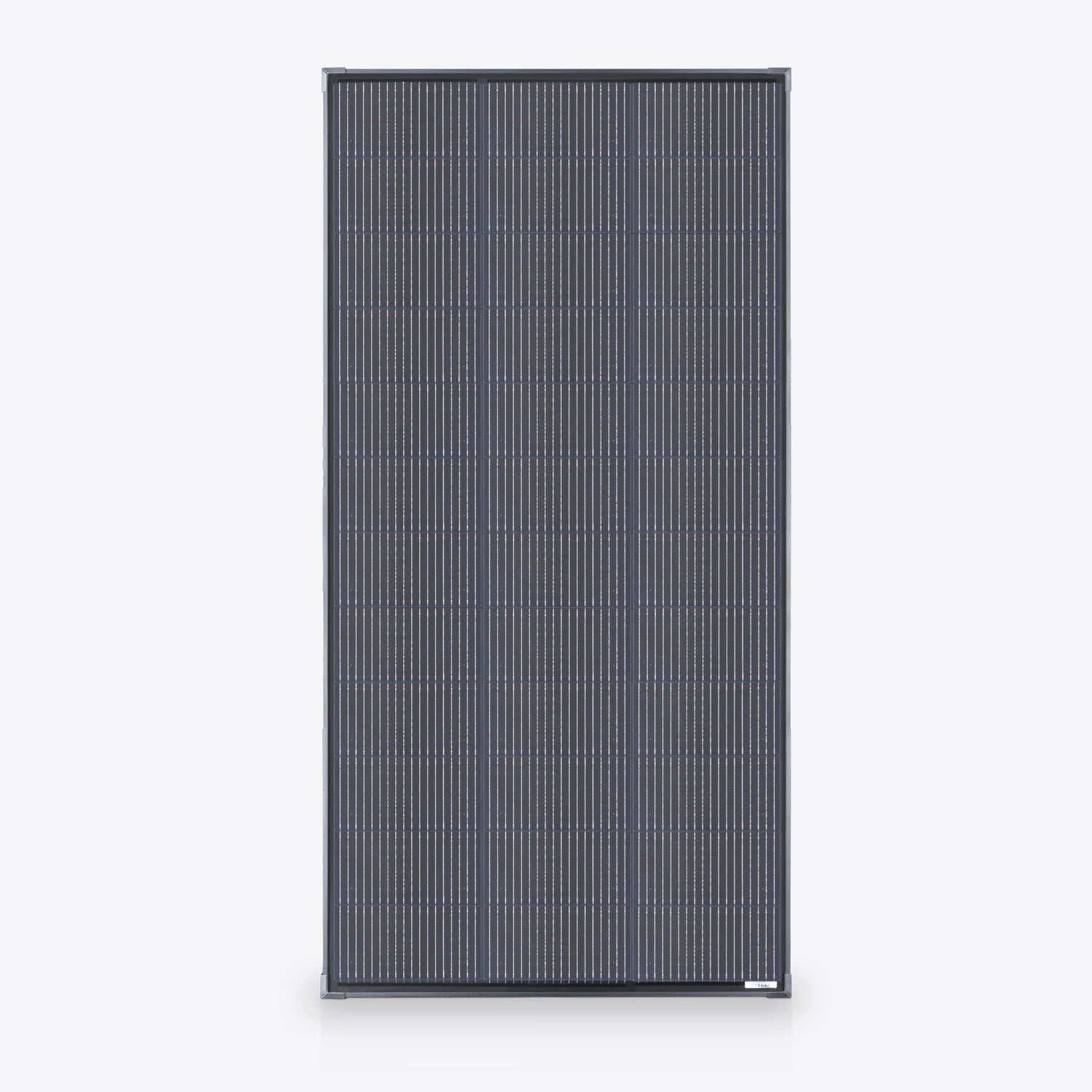

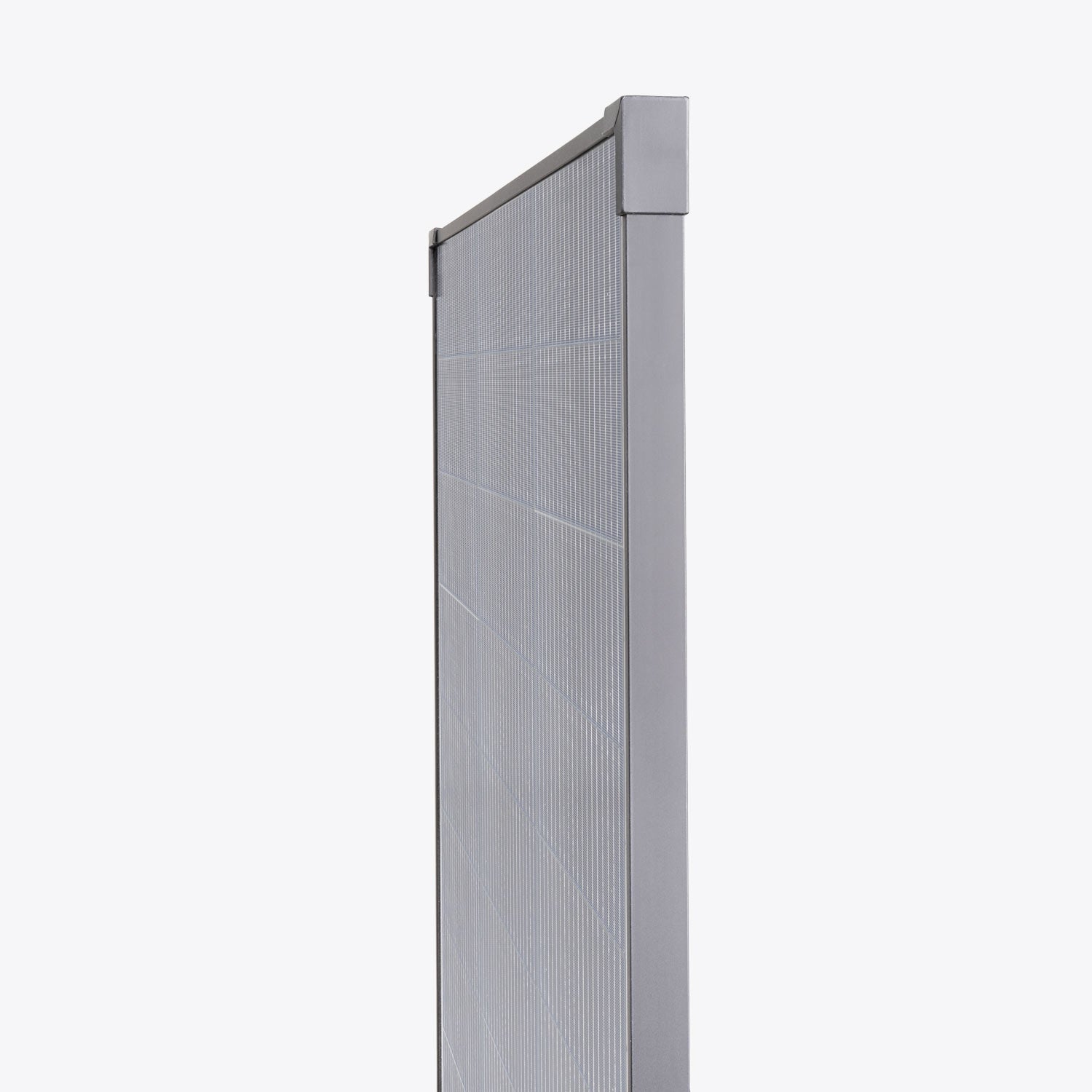

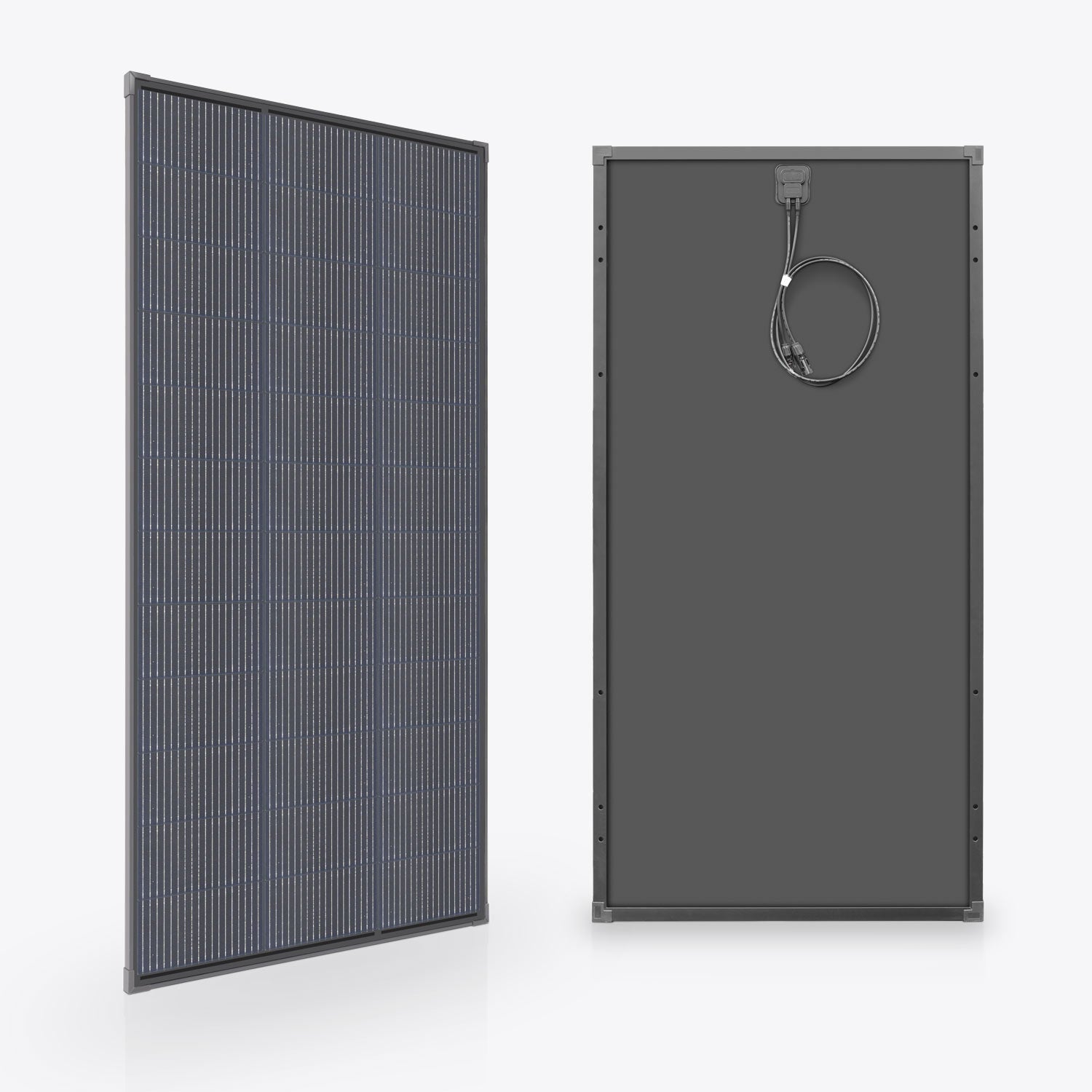

Our high-quality 170w fixed solar panels will fit neatly on the roof of a 4wd, caravan, camper trailer or boat. Being only 17mm high, they are aerodynamic and weigh about 30% less than regular 30mm high fixed panels.

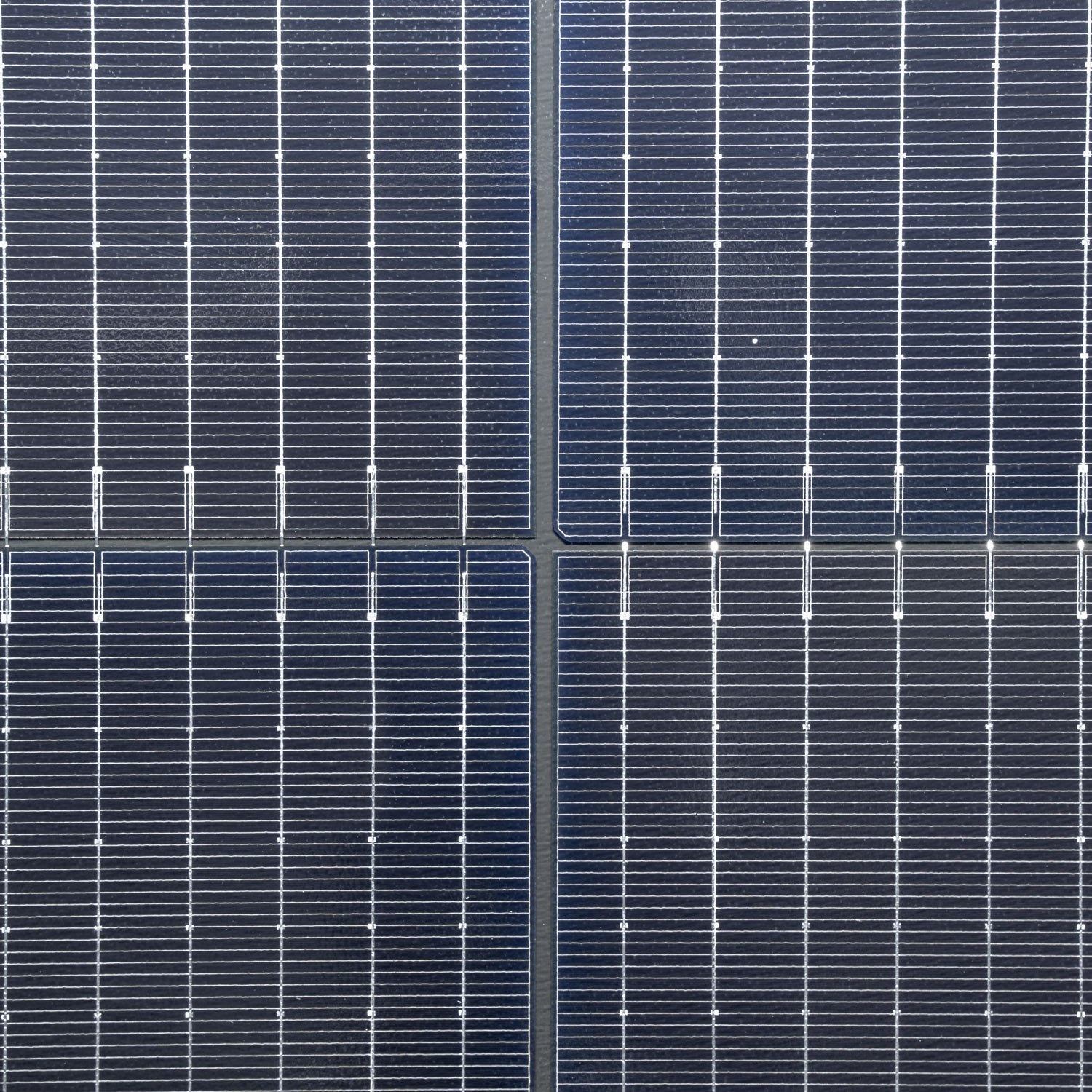

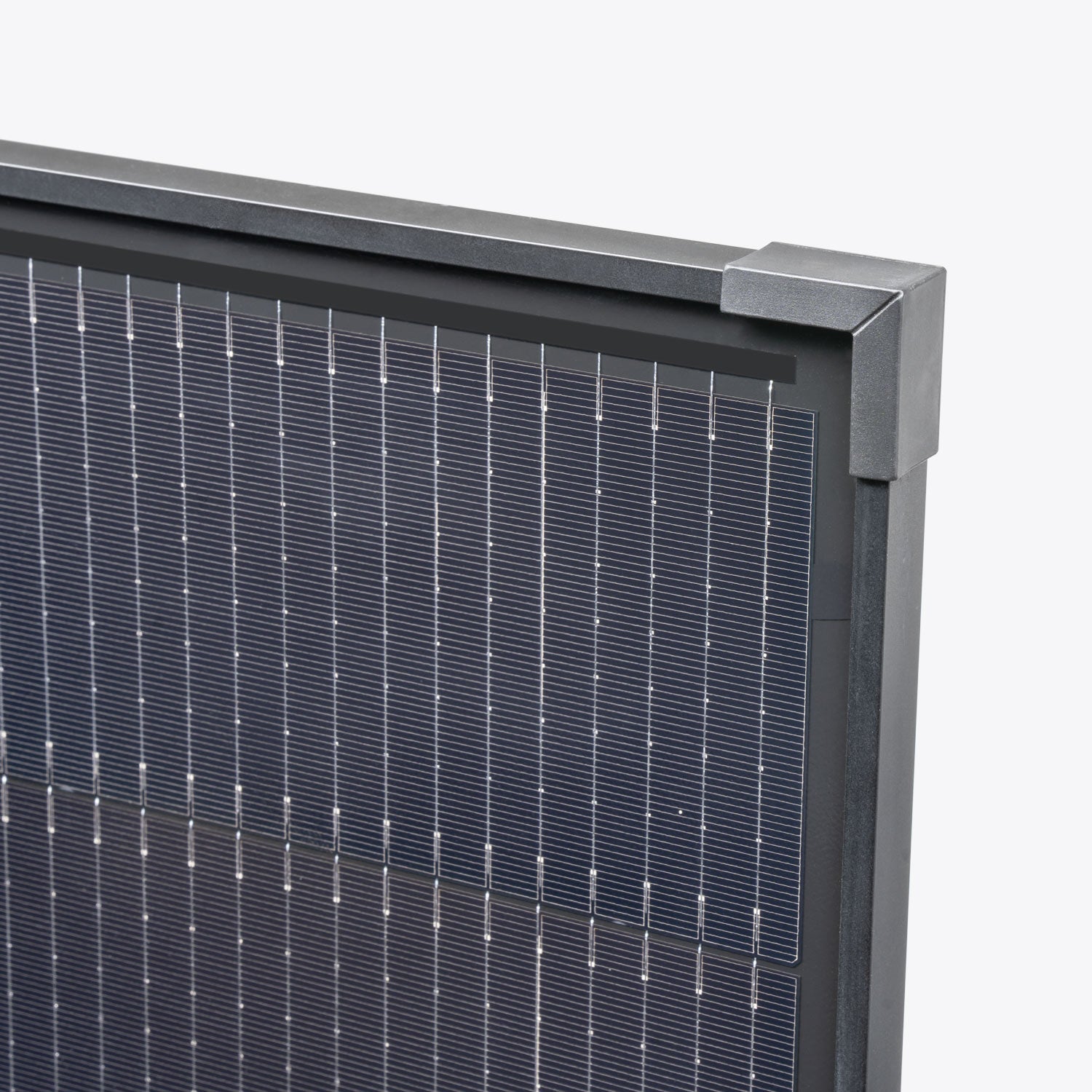

The A-grade monocrystalline solar cells are protected by 3.2mm tempered low-iron glass, which is optically clear. The all-black frame, cells and substrate look incredible on any vehicle.

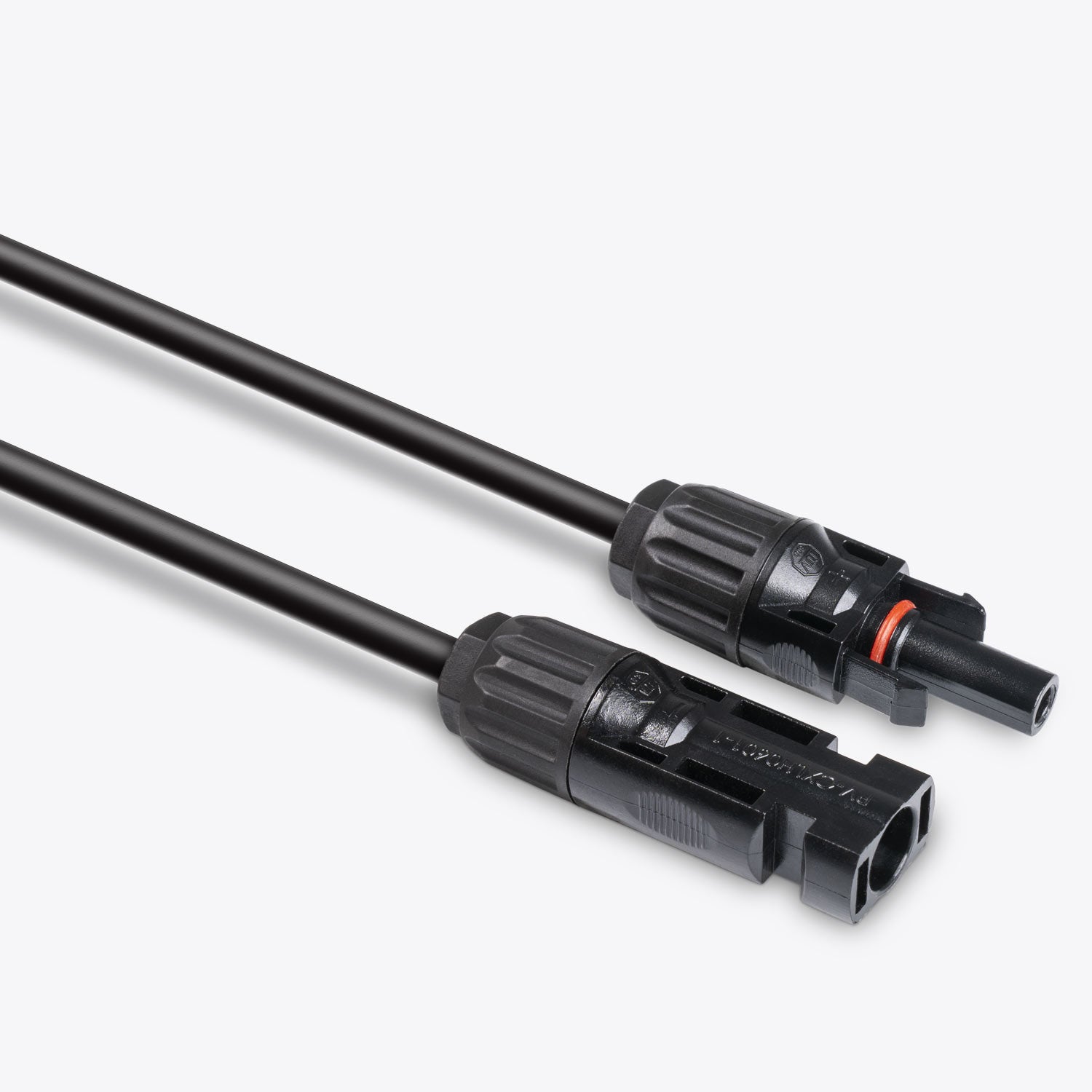

The panels come with a 0.8m cable terminated with industry-standard MC4 connectors, which are waterproof and will not come apart once connected. We have also developed matching mounting brackets to make it easy to fix your panels in place.
With a 10 year warranty backed by Hardkorr’s reputation for quality, you can’t go wrong with these solar panels. Start powering your adventure from the sun for free today!
NOTE: You will need a regulator to connect this panel to your system.
| Materials | Anodized aluminium frame A-grade monocrystalline solar cells 3.2mm tempered low-iron glass covering |
| Wattage | 170W |
| Working max. voltage | 21V |
| Working max. current | 8.1A |
| Open circuit voltage | 23.4V |
| Short circuit current | 9.55A |
| Solar cell efficiency | 22.50% |
| Dimensions | 1320(L) x 664(W) x 17(H) mm |
| Weight | 8.6kg |
| Connector type | MC4 |
| Max. system voltage | 1000V |
| Operating temperature | -40°C to 85°C |
| Certifications | CE, RoHS, C-Tick |
| Materials | Anodized aluminium frame A-grade monocrystalline solar cells 3.2mm tempered low-iron glass covering |
| Wattage | 170W |
| Working max. voltage | 17.80V |
| Working max. current | 9.55A |
| Open circuit | 25.00V |
| Short circuit | 10.58A |
| Solar cell efficiency | 20.31% |
| Dimensions | 1320(L) x 664(W) x 17(H) mm |
| Weight | 9.98kg |
| Connector type | MC4 |
| Max. system voltage | 1000V |
| Operating temperature | -40°C to 85°C |
| Certifications | CE, RoHS, C-Tick |
Warranty: This product has a 10 year replacement warranty.
