A convenient rated recovery point attachment.

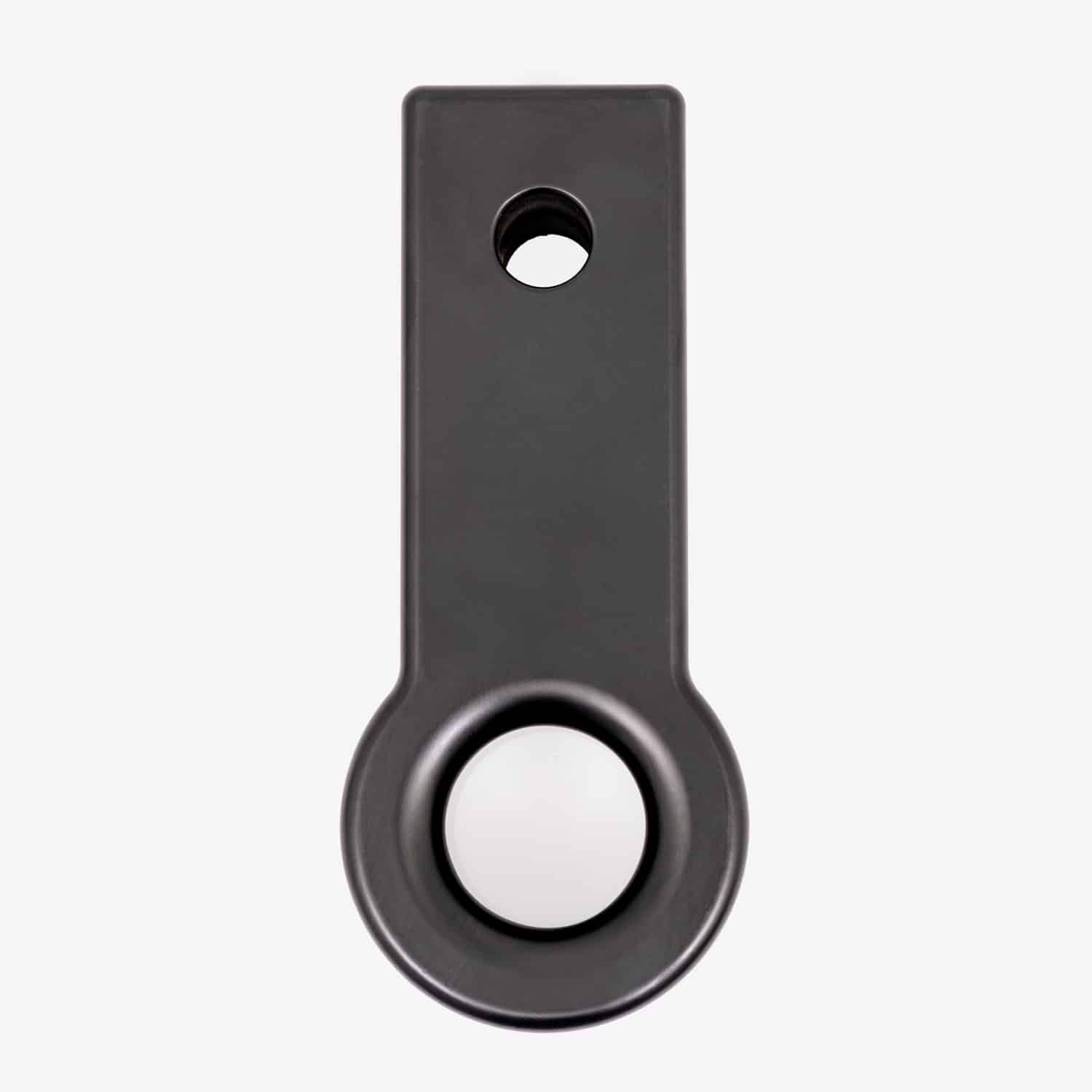

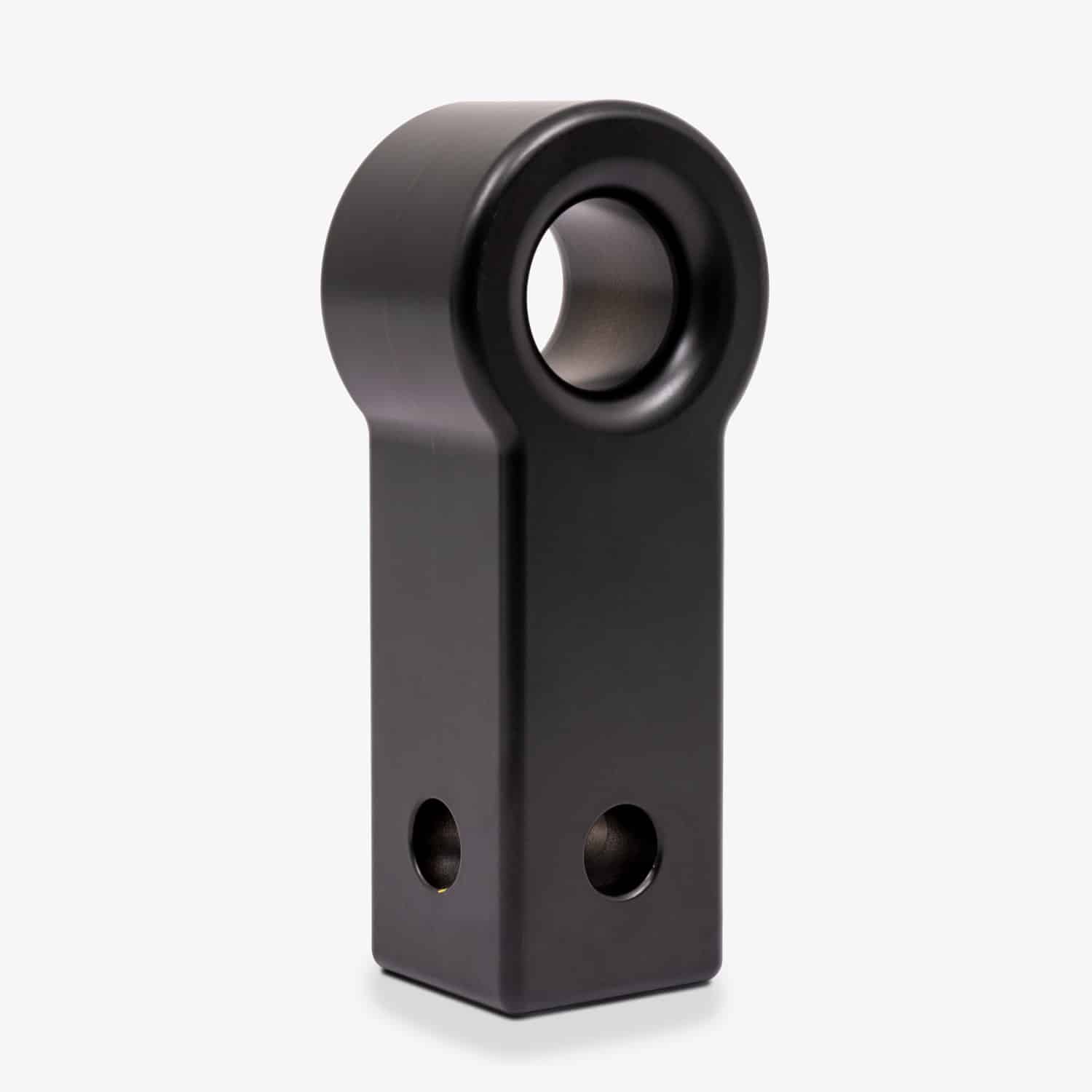

Our Towbar Recovery Hitch Kit gives you an easy-to-use anchor point, particularly useful on the tow vehicle in the recovery.

The Hitch is designed to prolong the life of your recovery gear – it’s built with smooth, rounded edges making it perfect for ropes and straps. It has a weight load limit (WLL) of 5,000kg and is designed to be used with the included Heavy-Duty Soft Shackle which has a Minimum Breaking Strength (MBS) of 14,000kg.

The kit is great to keep with your 4x4 as it can be easily attached when the tow hitch isn’t in use. To use, simply slide the hitch into a standard 50x50mm (AS4177) receiver, then lock it into place using the hitch pin. Then, using the eye of your recovery rope/strap, loop it over the included Soft Shackle, put the loose end of the shackle through the hitch hole then place the shackle loop over the knot.

Before using the kit, make sure to check the tow system’s rating to make sure it’ll handle the stress of your recovery.

Rated to 5,000kg

Worked out as a ratio of the Minimum Breaking Strength (MBS), Working Load Limits (WLL) is the safe working load figure that’s typically placed on load-bearing metal equipment. This hitch is rated at 5,000kg which is more than enough to handle recoveries where there are up to two anchor points off the hitch.

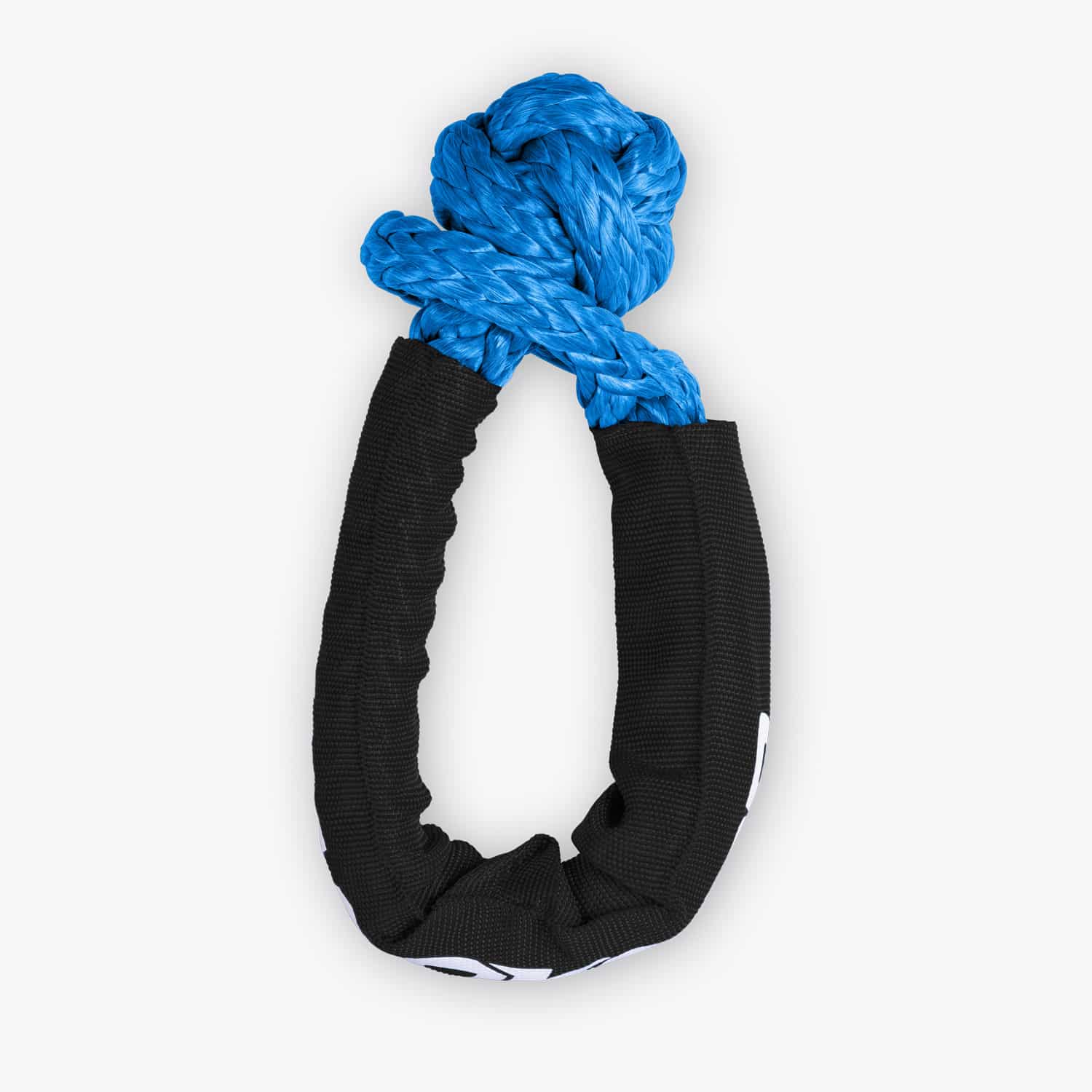

The included Soft Shackle is measured using the MBS figure. This is determined in a large-scale lab test by taking the measurement of the weakest sample when it first starts to tear, rip, or break. It’s recommended that the MBS of any recovery rope used should be at least 2-3 times the gross weight of the vehicle that’s being recovered.

Fully Tested & Certified:

Put to the test in both the field and the lab, you can be confident our gear will get you out of trouble when you need it most. Our ropes, straps, and shackles have undergone an extensive testing program by one of Australia’s leading NATA facilities. After exceeding expectations in a lab stress and destruction examination, we’ve made sure to really put them through their paces offroad as well. The results? A full range of recovery equipment that’ll get you out of even the trickiest of scenarios.

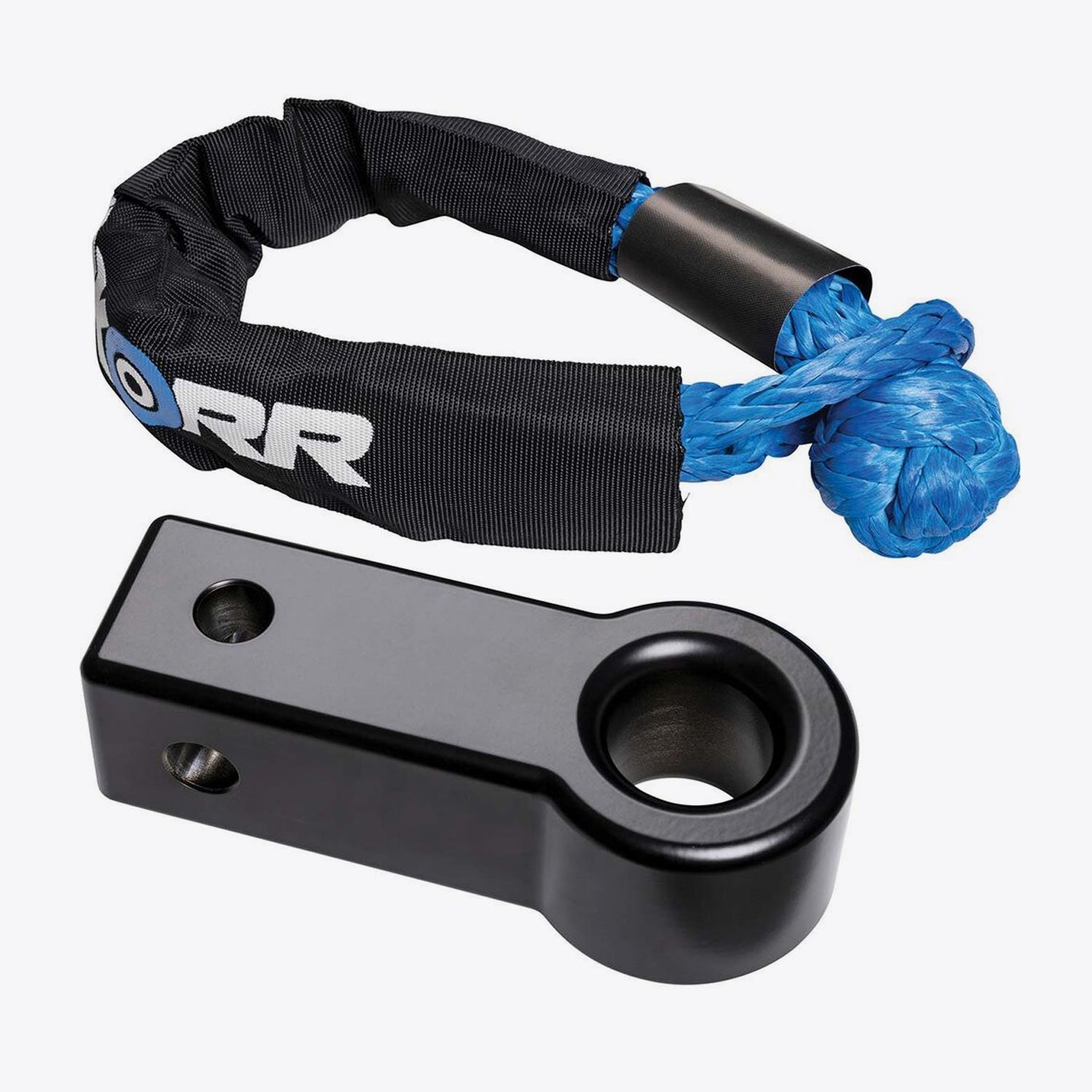

What's in the Box

• 1 x Towbar Recovery Hitch
• 1 x Soft Shackle

Specifications

Warranty: This product has a 1 year replacement warranty.
