Hardkorr XD Series 10" Single Row LED Light Bar
PRODUCT DESCRIPTION
The XD Series lightbars deliver strong, reliable performance without the premium price tag. Designed to put light where it actually matters, the XD throws a clean, controlled beam with a 52° spread, lighting up the road ahead and the edges at the same time. With a 1 lux reach of 270 metres, distance is never in question when visibility counts.
Running at a crisp 5,500K colour temperature, the light output is clear and natural, reducing glare and eye fatigue on long night drives. Built tough for real conditions, the XD Series is engineered to handle vibration, shock, dust, and water without complaint.
Hazard avoidance. Distance. Durability. All sorted.
There’s really only one question left.
Where to next?

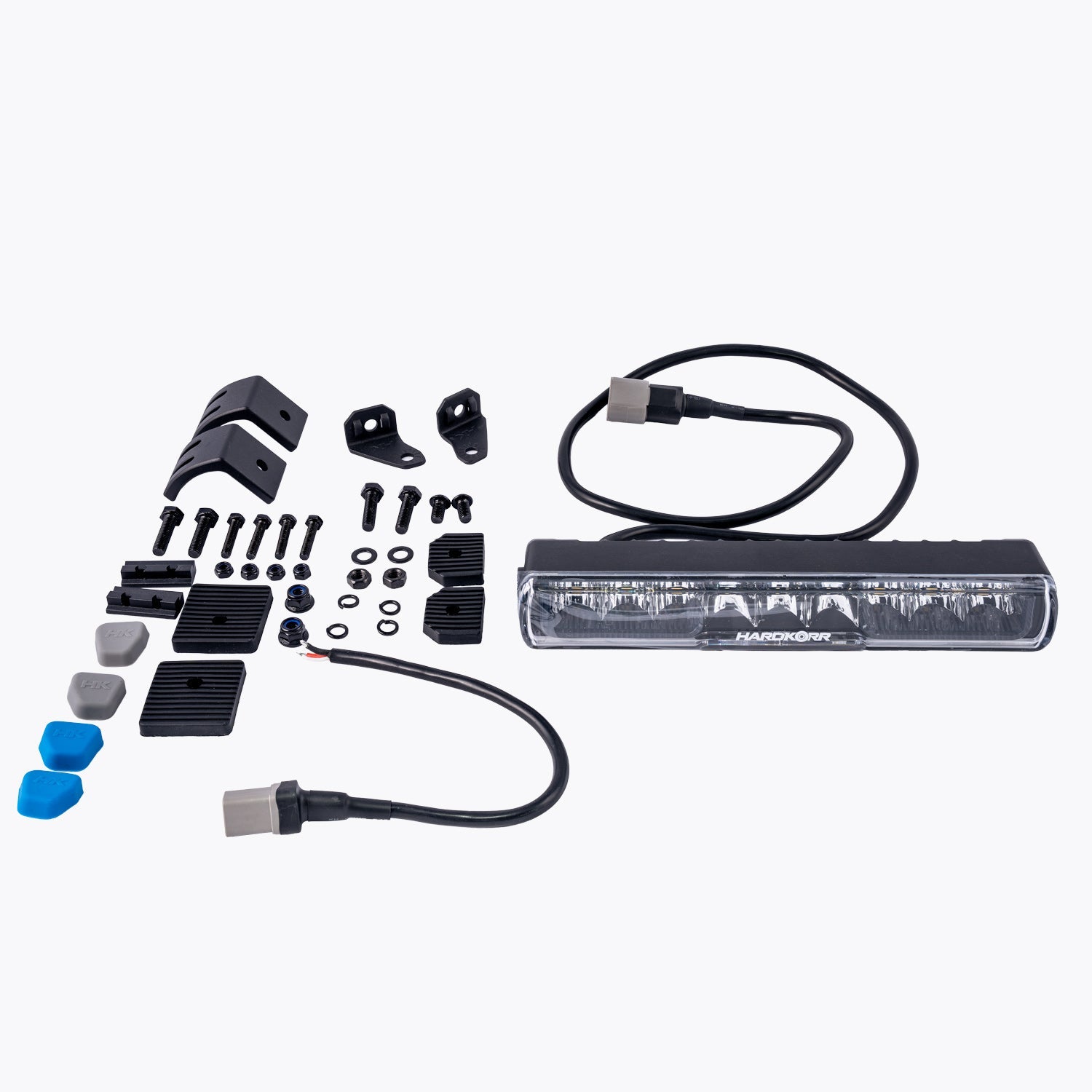

* All images shown are from pre-production models; there may be minor differences between them and the final production models.What's in the Box
- 1 x XD Series 10" Light Bar
- 1 x 4-pin harness wiring tail

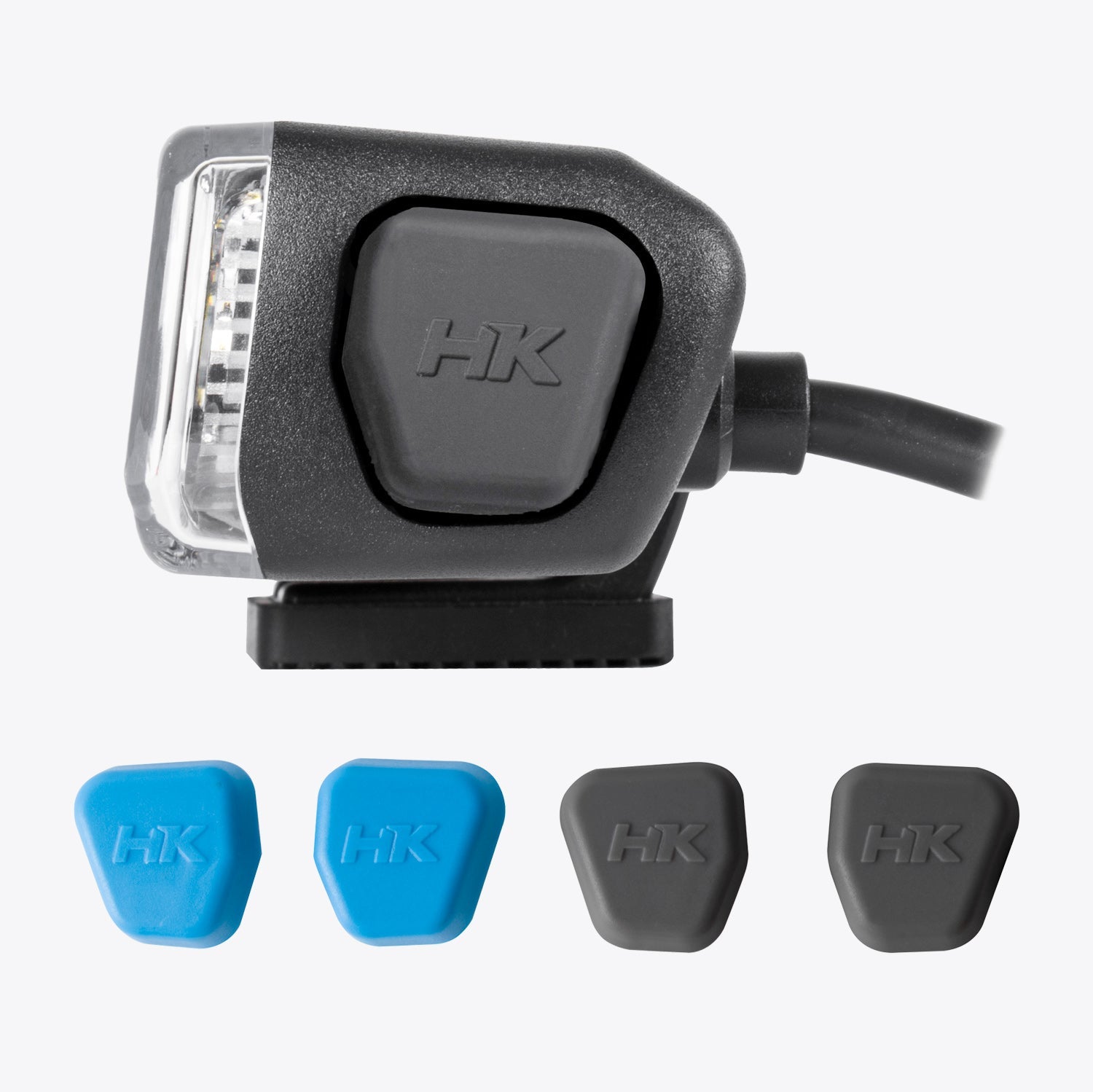

- 2 x Blue end-caps
- 2 x Grey end-caps
Specifications
| Housing material | Powder-coated die-cast aluminium |
| Bracket material | Powder-coated die-cast aluminium |
| Lens material | UV-coated polycarbonate |
| Size | 290 (L) x 46 (H) x 61 (D) mm |
| Weight | 0.84 kg |
| Raw lumens | 10,221 lm |
| Effective lumens | 4,894 lm |
| 1-lux rating | 262 m |
| Beam angle | 52° |
| Peak intensity (candela) | 68,000 cd |
| Colour temperature | 5,500 K |
| LED chips | 3 × 2016 + 6 × 1860 |
| Operating voltage | 10–30 V DC |
| Current draw | 5.87A @ 12V / 2.84A @ 24V |
| DRL draw | 0.51A @ 12V / 0.25A @ 24V |
| Operating temperature | -30°C – 65°C |
| Ingress protection | IP68 / 9K |
Warranty: This product has a 2 year replacement warranty.
