Description

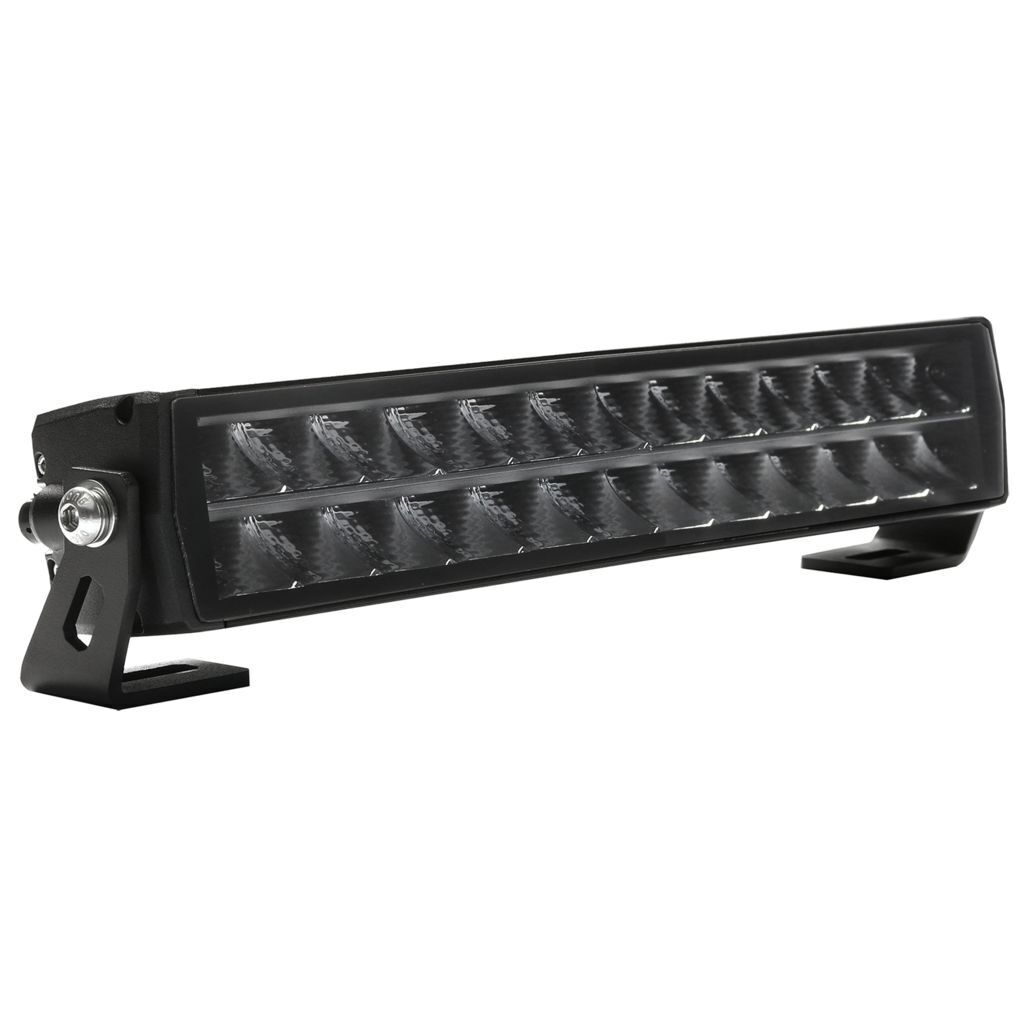

14" LED Slimline Dual Row Lightbar

Illuminate your off-road adventures with the LED Slimline Series Lightbars. This versatile range offers a variety of options to suit your specific needs.

Choose from single row lightbars in 14", 20", and 30" sizes, providing focused and powerful illumination to conquer the darkest trails. For even greater brightness, the dual row lightbars are available in 14", 20", 30", and 40" lengths, offering exceptional visibility on any terrain.

Looking for a sleek and curved design? The Curved Single Row option in 20" provides both style and functionality, allowing for a wider spread of light while maintaining a streamlined appearance.

All lightbars in the LED Slimline Series are built to endure tough conditions. With their sturdy construction, they are resistant to water, dust, and impacts, ensuring reliable performance even in challenging environments.

Easy installation is facilitated by the included mounting brackets, allowing you to securely attach the lightbars to your vehicle wherever you need them most.

Upgrade your off-road lighting setup with the LED Slimline Series Lightbars. Experience powerful brightness, durability, and a range of size options to suit your specific requirements. Illuminate your path and take your off-road adventures to the next level with these exceptional lightbars.

Includes:

1 x 14" LED Slimline Dual Row Lightbar

Bottom Mount Bracket - 6063 Aluminium

Side Mount Bracket - SUS201 Stainless Steel

Features

• Ultra Slim Dual Row Design

• 25° Driving Beam Pattern

• Flush Front Fascia with no exposed screws

• Easy to clean and no chance of screws corroding

• Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent

• Polycarbonate reflector focusing optic technology with Lexan polycarbonate lens

• Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along the bar's length

• 500mm lead with 2 pin Deutsch plug

• 2 Year Warranty

Specifications

Type: LED

Beam Type: Other

Rows: Dual

Series: Slimline / Ultra Slim

Mount: Side or Bottom

IP Rating: IP68 and IP69K Rated

Voltage: Multivolt (9 - 36V)

Power: 120 Watts

No. of LED's: 24 x 5 Watt High Intensity LP LED's

Effective Lumens: 8,600

Raw Lumens: 10,800

Current Draw: 6.5A @ 12V, 3.2A @ 24V

Max Visibility: 1 Lux @ 502m

Peak Beam Intensity: 252,000cd

Height: 73mm

Width: 360mm

Depth: 53mm

SKU: HU9609

Barcode #: 9356659100068

Brand: 4x4
