Invicta Super Slim 12V200AH with Bluetooth
PRODUCT DESCRIPTION
A Slim Battery Built Tough
The Invicta Lithium Super Slim is a slimline lithium battery designed to be Invicta’s slimmest battery yet. As vehicle manufacturers keep pushing the limits of interior design, the space available for a battery keeps shrinking, and a traditional lithium battery is getting harder to fit.
The Super Slim tackles this with a 58mm wide frame, so it can slip in behind the back seat or into other tight spots. Its metal case means it can handle knocks and bumps once it’s squeezed into place. Thanks to its prismatic cell construction, you don’t give up any performance to get the slim size.
Performance Features
It may be slim, but the Invicta Super Slim range still has the performance you need for your next trip. That includes an integrated BMS with protections, a high-discharge rate with over-rated Anderson plugs, Bluetooth monitoring and 1800W or 3000W inverter compatibility, all backed by a 5-year full replacement warranty.
Bluetooth Monitoring
The Super Slim uses the same Bluetooth monitoring platform as Invicta’s Hybrid Starter range, so you can rely on the most accurate data available. The app is free for all Invicta customers and works with most Android and Apple smart devices. It lets you check current, voltage, status, cycles and capacity in one place.
No phone handy? A built-in LCD screen gives you a quick read of state of charge and remaining capacity.
Features And Benefits
- Super-Slim Design (58mm wide)
- Prismatic Cells
- Safe LiFePO4 Technology
- Deep Cycle Performance
- High Current Anderson Plugs
- Available In Two Sizes (100Ah and 200Ah)
- Compatible With Up To 3000W Inverters
- Bluetooth Monitoring
- Robust Metal Case
- High Cycle Performance
- Light Weight
- Integrated BMS
- 5-year Full Replacement Warranty
- Fast Recharge
- Modular Construction
AAAA Magazine Release
The Invicta Super Slim 12V range has been specifically designed for fitment in to applications where usable space is extremely limited. Utilising LiFePO4 cell technology, this allows the cells to be tighly packed in to a modular design for ease of fitment. The range also utilises the safe and efficient benefits of Lithium Iron Phosphate (LiFePO4) technology and is ideally suited to deep cycle longer run time applications.
Features & Benefits
- Large number of cycles >2000 (100% DoD) – Up to 8 times cycle life of SLA lowering your total cost of ownership
- Safe and stable chemistry & Integrated BMS – The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety
- Modular construction allows for tighter cell configuration and – also enables up to four batteries to be put in parallel.
- High energy density (less than half of the weight of SLA) – Lowering total weight of application
- Fast recharge – Battery is charged and ready to be used sooner
- Flat Discharge Curve – Longer run time & more efficient use of capacity
- Extremely low self-discharge rate – Can sit unused for longer periods of time
Specifications
| Nominal Voltage | 12.8v |
| Nominal Capacity (25°C, 0.33C) | 200Ah |
| Terminal 1 | Anderson 350A |
| Terminal 2 | Anderson 120A |
| Terminal 3 | M8 |

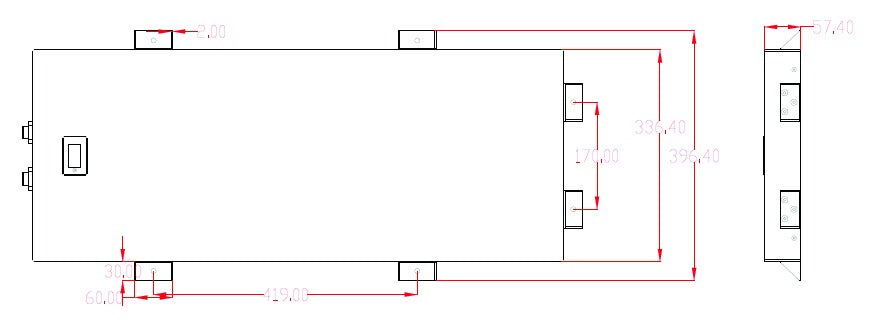

| Length (mm) | 843 ± 2mm |
| Width (mm) | 57 ± 2mm |
| Height (mm) | 336 ± 2mm |
| Weight | 26.0kg |
| Max Charge Voltage | 14.5 ± 0.1V |
| Standby | 13.8 ± 0.1V |
| Cut off Voltage | 10.5V |
| Max. Discharge Current | 250A |
| Max. Pulse Discharge Current (5 Sec) | 500A |
| Max. Charge Current | 100A |
| Recommended Current Charge | ≤ 100A |
| Cycle Life (100% DoD) | ≥ 2000 |
| Operating Temp - Charge | 0 - 45°C |
| Operating Temp - Discharge | -20 - 60°C |
| Short Circuit Release | Load Release |
| Max. Parallel / Series Configuration | 4P / 0S |
| Bluetooth | Yes |
