Description

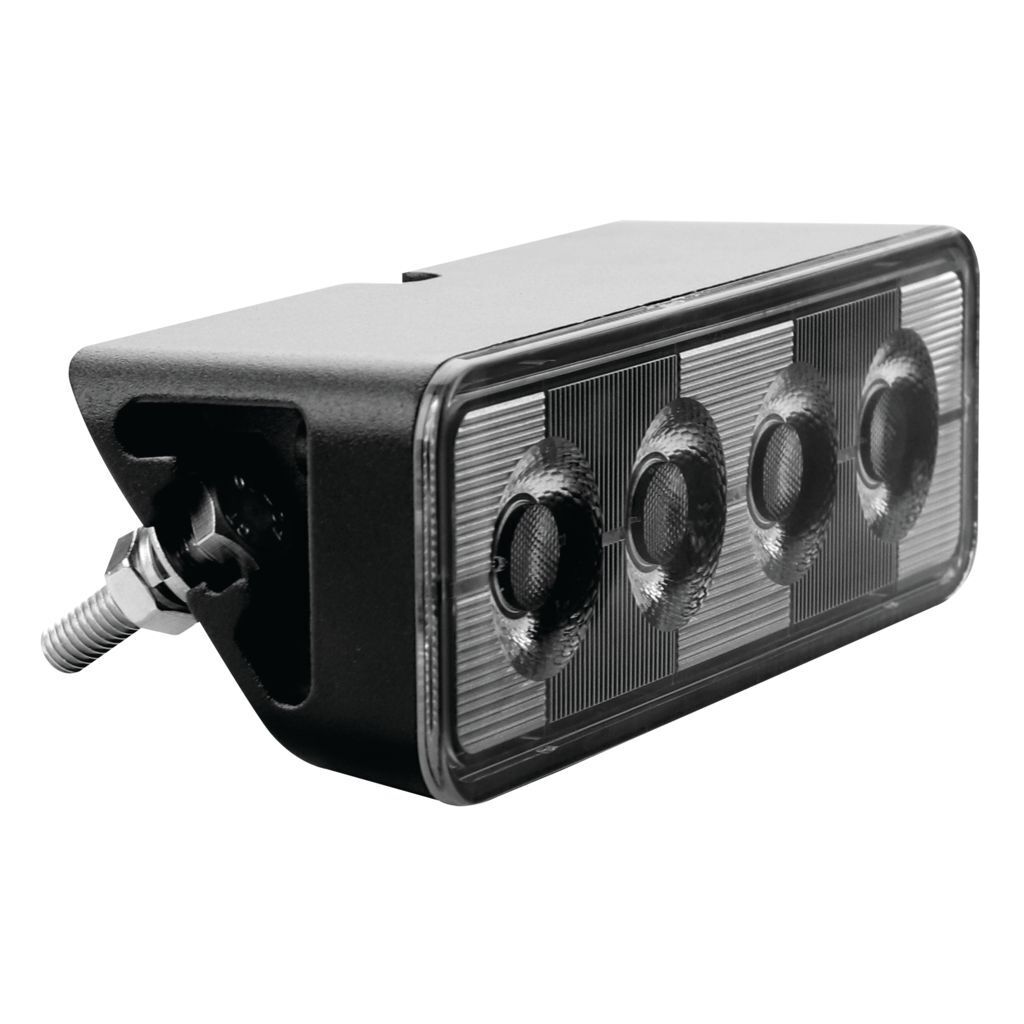

Ignite 5" Rectangular LED Worklamp 9 - 36 Volt 24 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodised Polyester Powder Coated Die-Cast ADC12 Aluminium Alloy Housing with integrated
Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent
Housing is angled at 35° downward for surface mount applications but also supplied with Rubber
Mounting Block to further increase angle to 48°
Flush Mount or Surface Mount; Provided with Stainless Steel Bolts and Stainless Steel Mounting
70° Flood (Spread) Beam Pattern
Hardware for flush mount. Also supplied with a Flat Metal Bracket that mounts on the back of the
housing and comes also with Stainless Steel Screws for surface mounting
300mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10, R23 CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 and IP69K Rating
2,800 Raw Lumens, 2,200 Effective Lumens and 5,700K
Environment Temperature: -40°C ~ +60°C
5 Years Warranty
Can be used in many different applications such as; Worklamp, Awning Lamp, Interior Lamp, Courtesy
Lamp, Deck Lamp, Tub Lamp, also ECE approved as a Reverse Lamp
4 x 6 Watt High Intensity LumiLEDs LEDs
1 Lux @ 59m and 3,400cd Peak Beam Density
Current Draw: 1.6amp @ 12 Volt and 0.8amp @ 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens

Specifications

Beam Type: Flood
Depth (mm): 43
Height (mm): 42
Mount: Surface
No. of LED: 4
Series: Other
Shape: Rectangular
Type: LED
Voltage: Multivolt
Watts: Other
Width (mm): 130
SKU: IWL406F
Barcode #: 9323327945252
Brand: Ignite
