Nissan Patrol (08/1983-07/1987) Superior Engineering Superior Hollow Bar Drag Link Suitable For Nissan Patrol MK/MQ/GQ Leaf Front Adjustable (Crossover Steering) (Each) - GQMCODLLF-V3
PRODUCT DESCRIPTION
This is an adjustable Drag Link Suitable For Nissan Patrol GQ with front leaf springs (Crossover Steering).
Used when changing from a standard style setup to a crossover style steering setup.
Drag links are manufactured from 32od High Tensile Steel Bar.
6 mm wall thickness means these are extremely strong compared to factory items.
Adjustable ends are supplied with the drag link and come with a eye-eye damper bracket.
They are zinc coated for rust resistance and have greasable and Replaceable tie rod ends.
Drag links are the front rod that connects to the steering box.
NOTE: this rod will only fit GQ Patrols with Front Leaf Springs.
Superior Engineering now includes ITS Seal Technology on internally threaded adjustable suspension linkages, eliminating the ingress of moisture or liquids that can cause corrosion or rust.
By adding a specially machined seal groove and incorporating a hydraulic seal between the locking nuts, the thread and the link, a perfect pressure tight seal is created.
This patented process (PN-2015101600) is EXCLUSIVE to Superior Engineering's internally threaded items such as tierods, draglinks, panhard rods and control arms (upper and lower).

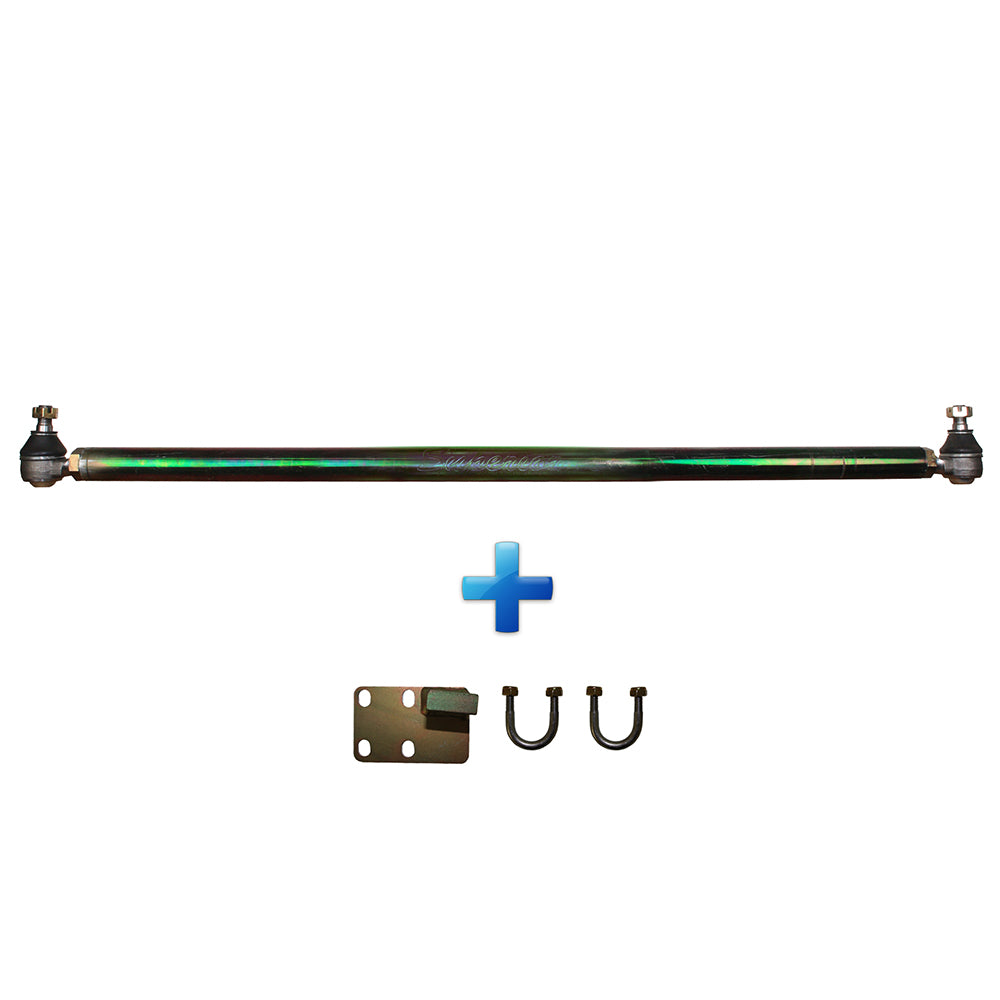

Includes
- 1 x Superior Mecaval Drag Link Bar
- 2 x Rod Ends (1 x LH & 1 x RH)
- 2 x Lock Nuts (1 x LH & 1 x RH)
- 1 x Superior Taper Pin Damper Bracket Kit with Ubolts
Patent Number: 2015101600
DISCLAIMER: Superior Engineering and other branded steering components are aftermarket replacement parts that are often upgraded for increased strength and durability compared to factory components. While these products meet or exceed OEM specifications, regular maintenance is essential to ensure safety and longevity. It is the responsibility of the vehicle owner to inspect all steering components, including rod ends, internal and external threads, and hollow bars at every service or at least every six months. Any signs of looseness, damage, or rust must be addressed immediately, as rust formation, particularly in harsh environments such as beach driving or off-roading, can compromise performance and may void the product warranty. Any wear or "play" in ball joints, tie rod ends, or threads requires immediate replacement to maintain safe vehicle operation. Failure to perform regular inspections and necessary replacements may result in component failure, which could lead to serious injury or damage.
Due to shortages in steel supply at this current time, this product may be supplied in either of the finishes shown in the image below.
We are not able to guarantee which finish will be supplied but they are both of the same tensile strength and carry the same warranty.
