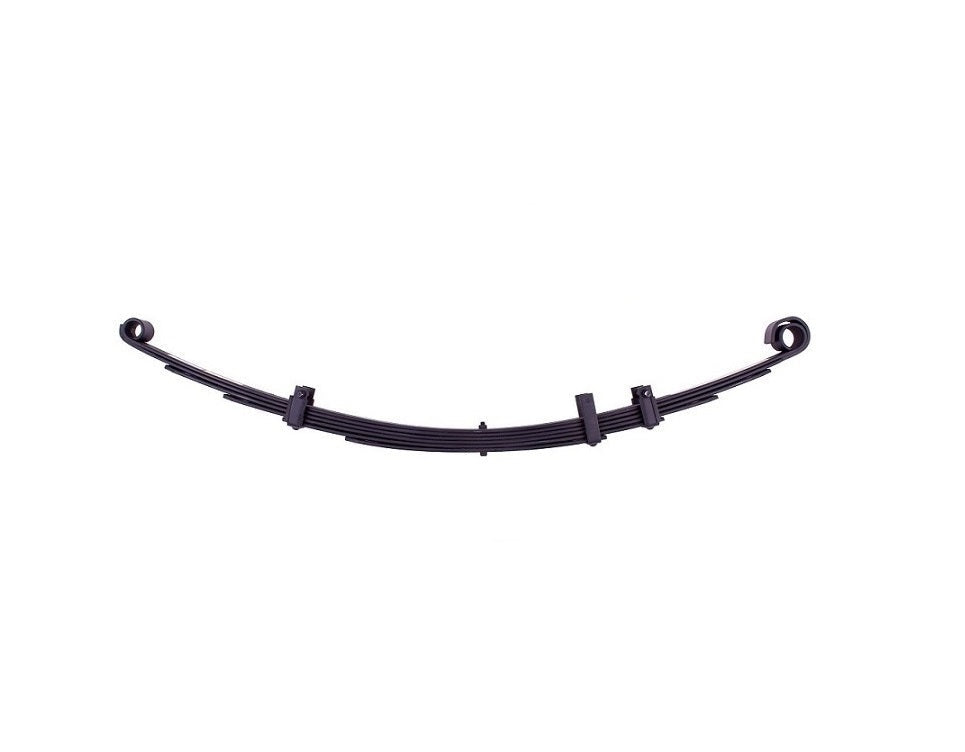

Nissan Patrol (1988-1998) GQ Cab Chassis Leaf/Leaf 2/1988-1998 Tough Dog FS37H-LH Tough Dog Front Leaf Spring
TD-FS37H-LH

Leaf springs represent one of the most enduring suspension designs in automotive history, maintaining their relevance in commercial vehicles due to their exceptional load-bearing capabilities. Engineered in Australia, these progressive rate leaf springs incorporate both primary and secondary stage leaves, ensuring that the vehicle's ride quality remains uncompromised under varying loads.

As the spring compresses under load, the secondary stage engages, effectively mitigating excessive sag and enhancing overall stability. The manufacturing process is meticulously designed to maximize durability, offering robust corrosion resistance and sag prevention, ensuring longevity in demanding conditions.

These leaf springs are available in up to three distinct spring rate options for most applications, providing the flexibility to select the optimal spring rate tailored to your vehicle's specific setup. Each spring is precision mandrel and die-formed, oil quenched, hardened, and tempered to guarantee extended service life.

Standard features include military wrap across all part numbers, accurate heat treatment, and construction from high-grade spring steel. Many applications also incorporate anti-friction pads to enhance performance. The springs are pre-stressed to maintain ride height and are rigorously load rate tested to ensure reliability.

For vehicles equipped with additional accessories, various spring rates are available to accommodate constant load carrying. The approximate raised height provided by these springs ranges from 40 to 50mm, with specific configurations available for different setups: FS37-LH for the passenger side and FS37-RH for the driver side, as well as FS37H-LH and FS37H-RH for setups with steel bars and winches.

When selecting springs, it is advisable to pair them with long travel shock absorbers to optimize performance. Please note that images provided are for representation purposes only and may not correspond to the specific part number being viewed.

Leaf Spring Features

• Designed in Australia
• Progressive rate leaf springs
• Primary and secondary stage leaves
• Prevents excessive sag
• Maximum life and corrosion protection
• Up to 3 spring rate options
• Precision mandrel & die-formed
• Oil quenched, hardened & tempered
• Military wrap standard
• Accurately heat-treated
• Manufactured from high grade spring steel
• Anti-friction pads in most applications
• Pre-stressed to maintain ride height
• Diamond cut ends
• Load rate tested

Spring Rate Options

• FS37-LH - Up to Bar Passenger Side
• FS37-RH - Up to Bar Driver Side
• FS37H-LH - Steel Bar and Winch Passenger Side
• FS37H-RH - Steel Bar and Winch Driver Side

Additional Notes

• We recommend fitting long travel shock absorbers with raised springs.
• Images are only a representation of the parts.

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: 40-50mm

FS37-LH - Up to Bar Passenger Side
FS37-RH - Up to Bar Driver Side
FS37H-LH - Steel Bar and Winch Passenger Side
FS37H-RH - Steel Bar and Winch Driver Side

Sold Individually.
Where LH and RH are noted select one of each to create a pair.
