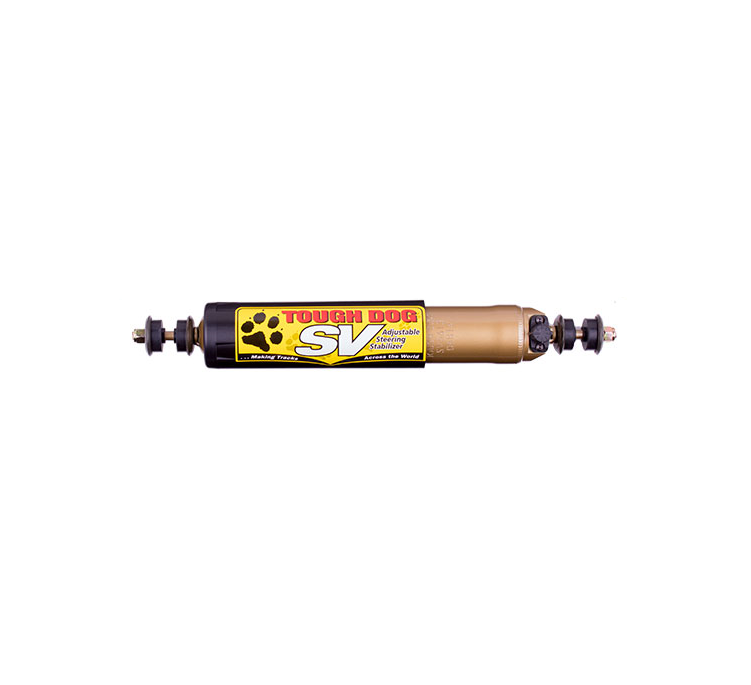

Nissan Patrol (1988-8/1989) GQ (Y60) 2/1988-8/1989 Tough Dog Tough Dog 9 Stage Adjustable Damper - Chassis Mounted Eye/Eye
TD-SV5612

Tough Dog's award-winning 'SV' adjustable damper stands out as a unique solution, providing users with the capability to fine-tune the damping force to match their specific driving style and vehicle requirements. This feature is particularly beneficial for vehicles equipped with oversized wheels or those with an increased wheel track that may experience steering shimmy.

The damping force can be precisely adjusted to effectively eliminate wheel shake, ensuring a smoother driving experience. It is essential to recognize that every vehicle presents its own set of dynamics, and even minor factors such as tire wear can significantly influence steering performance. With the SV unit, these variables are easily managed, as adjustments to steering feel are merely a dial turn away.

SV dampers are designed to accommodate a wide range of vehicles, supporting suspension lifts of up to 50mm for most applications, and in some cases, up to 150mm. The robust 35mm bore design ensures heavy-duty performance, delivering superb road handling characteristics while effectively eliminating shimmy. This extensive range makes the SV dampers suitable for most 4WD applications, enhancing both performance and comfort on and off the road.

Images provided are for representation purposes only and may not reflect the exact part number being viewed.

SHOCK ABSORBER SPECS

• 45mm internal bore
• 70mm external casing
• 22mm chrome plated rod
• High temperature, all weather oil
• Foam cell technology
• 9 Stage external adjustment
• Additional welding on all studs and eyerings

ADJUST TO YOUR SURROUNDS

• The 9 stages of adjustment mean you can control the firmness of your shocks easily, and adapt to the conditions as required.
• Choose a firmer ride for your highway travels, and then dial them down when its time to get down to business.

EXTREME SHOCK FOR EXTREME CONDITIONS

• Tough Dogs adjustable shocks are built tough for the Aussie outback.
• As well as the Foam Cell insert to combat shock fade, the 45mm adjustable also incorporate an ABS plastic dust shield as well as an external dust wiper seal to protect the shocks internals from grit which can damage the oil seals around the chrome rod.
• When fully extended, the shock is at its most vulnerable to damage from side load.
• The internal bump stop and piston rod guide ensure the shock is supported at the extremes of its travel.
• Our big bore shocks also have a DU bushing fitted internally to protect the seals from damage caused by side load at full extension.
