    Nissan Patrol (1990-1997) Ute Coil Diesel 4.2, 2.8 & 4.2ltr TD Superior Superflex Sway Bar Kit

    Regular price
    $858.00
    Sale price
    $858.00
    Regular price
    Sold out
    Unit price
    per

    Nissan Patrol (1990-1997) Ute Coil Diesel 4.2, 2.8 & 4.2ltr TD Superior Superflex Sway Bar Kit available on AfterPay. We deliver Australia-wide! – Sydney, Brisbane, Melbourne, Adelaide & Perth.

    Tax included. Shipping calculated at checkout.

    PRODUCT DESCRIPTION

    WARNING: In Nissan Patrol GQ/GU, running Rear Shocks with an Extended Length exceeding 750mm may lead to clearance issues between Superior Superflex Sway Bars and Superior Bolt-On Diff & Pinion Guards. The severity of this clearance issue can vary depending on many factors including Rear Upper & Lower Arm Lengths, Control Arm Positioning, Pinion Alignment & Manufacturing Tolerances in the OE Diff Housing.

    Superior Engineering is proud to announce our Rear Super Flex Sway Bar Kit Suitable For Nissan GQ/GU Patrol.

    The patented design and superior materials of this kit will permit your Patrol unbelievable levels of flex and still retain great on-road handling.

    With the Super Flex Sway Bars fitted sway bar disconnects are almost a thing of the past.

    Combined with the correct suspension components these Super Flex Sway Bars will have you out flexing your friends and still have excellent on-road handling.

    While your friends are under their cars connecting and disconnecting their sway bars, you can be ready with full flex with no need to crawl in the dirt.

    And when it"s time to drive home your vehicle will still have the full effect of having a sway bar fitted, So no more "NO SWAY BAR" scary moments.

    NOTE: Recommended Maximum Bar Angle is 25 Degree's(Exceeding this angle can void the warranty).
    NOTE: Please check exhaust clearance with aftermarket systems.

    NOTE: The fitment of the rear sway bar mounts are designed for those vehicles with OE style sub tanks or standard size tanks.

    The Green GU below is fitted with 2" coils, 3" AmadaXtreme Shocks and 2 degree Castor Bushes

    The GQ if fitted with 3" coils, 4" Procomp Shocks and Superior Engineering Superflex Arms

    IN SOME IMAGES THE VEHICLES HAVE THE SHOCKS REMOVED TO SHOW THE MAXIMUM UNRESTRICTED FLEX AND SOME IMAGES SHOW AN OLDER DESIGN

    Street Legal Logo

    Attention should also be paid to where the mounting position is for the rear main exhaust bracket, in some circumstances it may need to be adjusted or modified for clearance to the passenger side link and mount.

    ALSO, THIS SWAYBAR KIT MAY NOT WORK ON SWB VEHICLES

    Patent Application number: 2014100156

    Design Application number: 10785/2014

    This product has passed testing for approval under the NCOP system.
    See the flow chart below.

    Approval flow chart

    Nissan Patrol fitted with a Superior Superflex Sway Bar Kit
    Rear view of GU Patrol fitted with the Superior Superflex Sway Bar Kit
    GU Patrol testing out the flex after fitting the superflex sway bar kit
    GQ Patrol testing out the flex after fitting the superflex sway bar kit
    Underside view of GQ Patrol fitted with the Superior Superflex Sway Bar Kit
    Superior Superflex Sway Bar Kit
    Superior Superflex Sway Bar Kit
    Superior Superflex Sway Bar Kit
    Superior Superflex Sway Bar Kit
    Superior Superflex Sway Bar Kit
    Superior Sway Bar Extensions
    Superior Sway Bar Extension, radius arm and sway bar

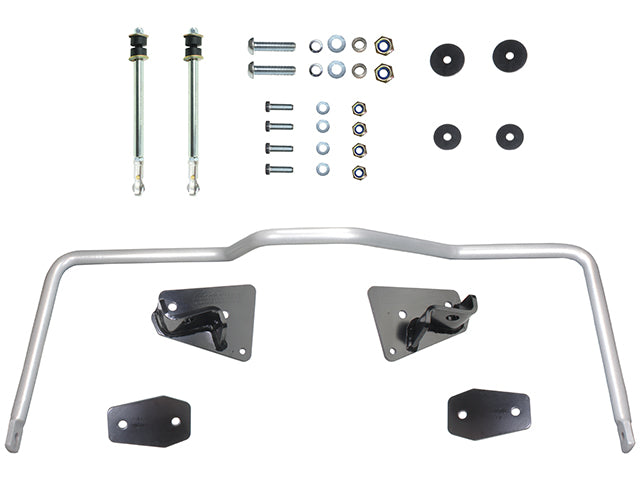

    Complete Rear Superior Superflex Sway Bar Kit with bolts, washers, extensions, brackets
    Shipping Policy

    Superior Engineering offer custom built suspension solutions, with unique adjustability and performance.

    These kits are assembled to order to suit your requirements, with an average lead time that can vary between 1-3 weeks.

    If you need a specific eta, please contact us before ordering and we will be sure to assist you.
