Nissan Patrol (1990-1997) Wagon LWB Petrol 3.0 & 4.2ltr Superior Stealth Pinion and Diff Guard Set available on AfterPay. We deliver Australia-wide! – Sydney, Brisbane, Melbourne, Adelaide & Perth.
WARNING: In Nissan Patrol GQ/GU, running Rear Shocks with an Extended Length exceeding 750mm may lead to clearance issues between Superior Superflex Sway Bars and Superior Bolt-On Diff & Pinion Guards. The severity of this clearance issue can vary depending on many factors including Rear Upper & Lower Arm Lengths, Control Arm Positioning, Pinion Alignment & Manufacturing Tolerances in the OE Diff Housing.

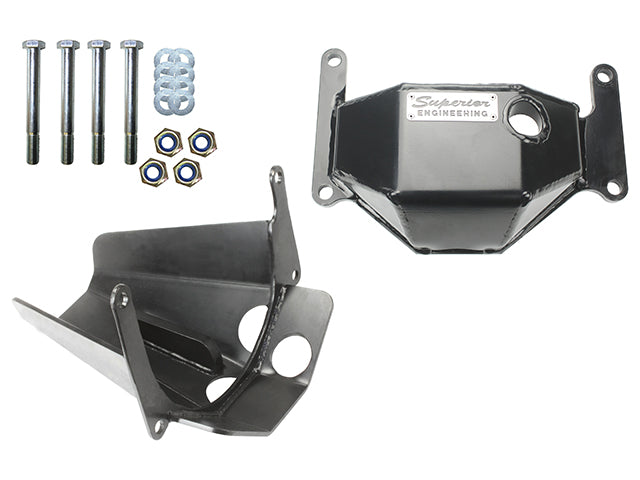

This is a Superior Stealth bolt-on Rear Diff and Pinion Guard Set suitable for the GQ & GU Nissan Patrols (H233).
Superior Engineering Stealth Pinion & Diff Guards are Suitable For Both GQ and GU Nissan Patrols that are fitted with H233B rear diffs.
These are 100% bolt-on protection made from 250 Grade steel in 6mm steel for the Ultimate protection of your Pinion and Diff.
These Guards simply bolt onto your diff housing utilising the supplied hardware.
The Stealth Diff Guard uses the supplied bolts and clamp brackets to secure the guard to the Main Axle tube and Pinion creating very strong mounting points.
To further add to the protection the Pinion Guard also has a brace that fits snuggly against the housing to help share the impact load.
Manufactured to sit as close to the original housing as possible.
Designed to work perfectly together as one unit for maximum strength and protection.
By using Stealth pinion and diff guards you know your rear diff can handle anything it impacts.
Finished in a Hardwearing Powder coat and 100% made in Australia.
Sold as a pair.
Note: Does not fit with factory diff lockers and some long-range sub tanks
.JPG)
SHIPPING POLICY:
Superior Engineering offer custom built suspension solutions, with unique adjustability and performance.
These kits are assembled to order to suit your requirements, with an average lead time that can vary between 1-3 weeks.
Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout. We can provide door to door delivery options for an extra fee, Please contact our sales team on 1300 773 494 or sales@ppdperformance.com.au within 24hrs of the order being placed if you would like us to quote this option for you.
