Nissan Patrol (1990-1997) Wagon LWB Petrol 3.0 & 4.2ltr Superior Superflex Radius Arms

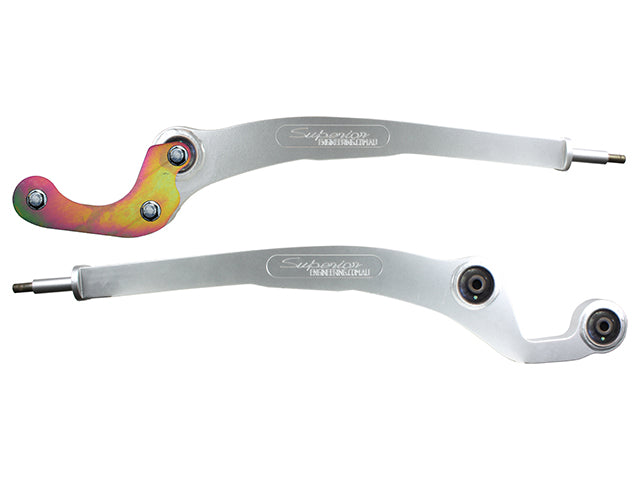

This is a pair of Superior Engineering Superflex Radius Arms suitable for a GQ/GU Nissan Patrol (Offroad Series) with a 2-6 inch lift.

Superior Engineering SUPERFLEX Radius arms were designed in 2008 for Competition Trucks to benefit from maximum articulation as well as Excellent High-Speed Handling as well.

Since their introduction to the Australian and overseas market, there has been a huge trend towards choosing Superior Engineering SUPERFLEX Arms over the standard Radius Arm design.

Why not have extra flex as well as good on-road handling?

Superior Engineering Radius Arms now come drilled to suit 85mm sway bar saddles and ABS lines.

Features:

Benefits of Superior Engineering SUPERFLEX Drop Radius Arms

Manufactured from High Tensile Plate

High Tensile Plate Bush Eyes

Massive 32mm main Beam thickness for maximum strength

Rubber Bushes pre-fitted into arms

Laser-cut to precise measurement and caster location

Authentic Superior Engineering Logo machined into the side of Arms

SUPERFLEX ARMS are manufactured Suitable For various lifts

Sandblasted with rust prevention applied

Powder Coated for maximum durability and finish

High Tensile Plate will not crack unlike Cast Radius Arms

Sway Bar Adapter plate bracket and bolts have a SA5 Zinc coating for rust prevention

Allows vehicle to track correctly on road due to correct caster

Maximum Clearance between the Tie Rod and the Radius Arms

Factory bushes fit the SUPERFLEX ARMS, We don't use special size Bushes

Superior Engineering's Superflex arms are a Patented Design

Patent No's. 2008202797, 2010100451, 2011904187

100% money-back Guarantee if you don't get more flex than your original or aftermarket Radius Arms!

This product has passed testing for approval under the NCOP system.
See the flow chart below.

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real-world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail

Below is a video of Nissan Patrol GU passing an LT2 Lane Change Test with ease, this test shows the Patrol passing the test loaded to GVM at 110km/h.
Proof that Superior Engineering Superflex and Radius Arms can still handle when on-road as well as the added flex off-road.

Note: Factory bump stops may need to be extended depending on the coils and shock combination used.
Due to the huge variances in different weights of vehicles/heights variances and suspension combinations in
vehicles it is highly recommended to move your suspension in the full range of the
shock absorber compression/rebound travel and also taking into consideration coil bind,
check all areas for clearance issues, if you require more assistance in this talk to one of our sales team for further advice

Please note that the rear Mushroom bushes are not supplied, and they can be purchased separately. CLICK HERE

Check out more information https://www.superiorengineering.com.au/the-science-behind-superflex-arms

NOTE: Please check ABS sensor lines (if fitted) are free to move through the full range of travel.

Below is a comparison chart showing different forms of Castor correction and how they compare in Cost, Flex, Handling and Offroad Ability.
