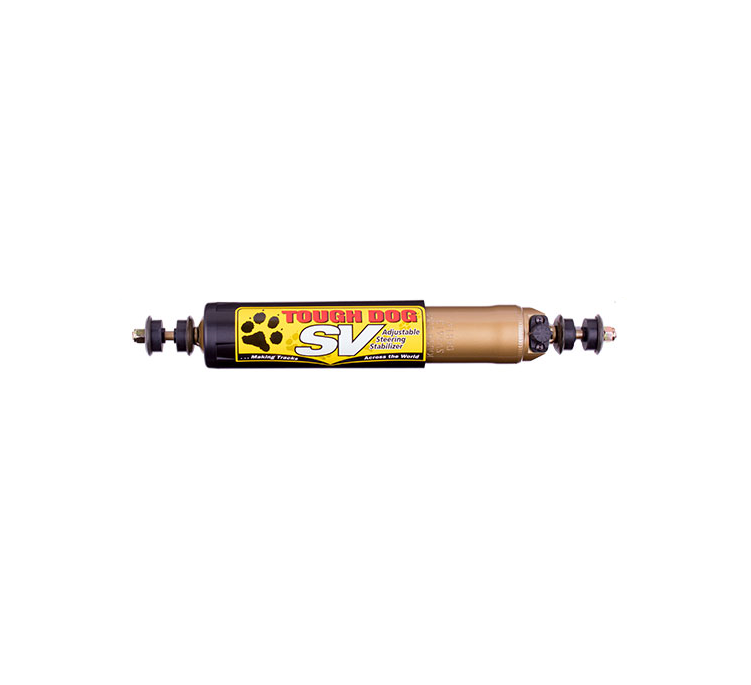

Nissan Patrol (1997-2000) GU Wagon S1 (Y61) 12/1997-2000 Tough Dog Tough Dog 9 Stage Adjustable Damper - Suits 4″ Lift
TD-SV5613/4

Tough Dog's award-winning 'SV' adjustable damper stands out as a unique solution, providing users with the capability to fine-tune the damping force to match their specific driving style and vehicle requirements. This feature is particularly beneficial for vehicles equipped with oversized wheels or those with an increased wheel track that may experience steering shimmy. By adjusting the damping force, the SV damper effectively mitigates wheel shake, ensuring a smoother driving experience.

Every vehicle presents its own set of dynamics, and even minor factors such as tire wear can significantly influence steering performance. The SV unit addresses these variations with precision; a simple turn of the dial allows for immediate adjustments to the steering feel, accommodating the unique characteristics of each vehicle.

SV dampers are engineered to fit a wide range of vehicles, supporting suspension lifts of up to 50mm, and in some cases, accommodating lifts of up to 150mm. With a robust 35mm bore designed for heavy-duty applications, these dampers excel in providing superb road handling characteristics while effectively eliminating shimmy.

Fitment notes indicate compatibility with 4", 5", and 6" lift configurations, and each unit includes the necessary mounting brackets for installation. Please note that images provided are for representation purposes only and may not correspond to the specific part number being viewed.

SHOCK ABSORBER SPECS

• 45mm internal bore
• 70mm external casing
• 22mm chrome plated rod
• High temperature, all weather oil
• Foam cell technology
• 9 Stage external adjustment
• Additional welding on all studs and eyerings

ADJUST TO YOUR SURROUNDS

• The 9 stages of adjustment mean you can control the firmness of your shocks easily, and adapt to the conditions as required.
• Choose a firmer ride for your highway travels, and then dial them down when its time to get down to business.

EXTREME SHOCK FOR EXTREME CONDITIONS

• Tough Dogs adjustable shocks are built tough for the Aussie outback.
• As well as the Foam Cell insert to combat shock fade, the 45mm adjustable also incorporate an ABS plastic dust shield as well as an external dust wiper seal to protect the shocks internals from grit which can damage the oil seals around the chrome rod.
• When fully extended, the shock is at its most vulnerable to damage from side load.
• The internal bump stop and piston rod guide ensure the shock is supported at the extremes of its travel.
• Our big bore shocks also have a DU bushing fitted internally to protect the seals from damage caused by side load at full extension.
