PSR's Nissan Patrol GQ-GU Hybrid Long arm system is a heavy duty improved design radius arm system. It is designed to offer the best combination of stability and off road performance! Starting with the radius arms, they are manufactured from 32mm high strength plate and are the longest on the market, featuring full wrap bush housings at the front and a Toyota Landcruiser rear bush allowing reduced restriction of articulation and extended bush life, genuine bushes are installed throughout.

Unlike other brands, our caster correction arms are lift specific. The supplied drop boxes are a unique design featuring a combination of precision CNC components for ultimate strength! One feature is the CNC machined radius arm locator washers, these eliminate the issue of hole sizing variations from profile cutting, meaning secure location is assured, also a shanked bolt is used meaning ultimate strength!

A super heavy duty replacement gearbox X-member is supplied which is fabricated from 12mm plate and offers higher clearance and reduced catch points compared to the factory X-member. This allows the use of our Heavy Duty bash guard that protects the transfer case and other items under the vehicle (P/NO, PSRPAT-037). All components are manufactured using strict welding certification practices and are powder coated black for a stealth look.

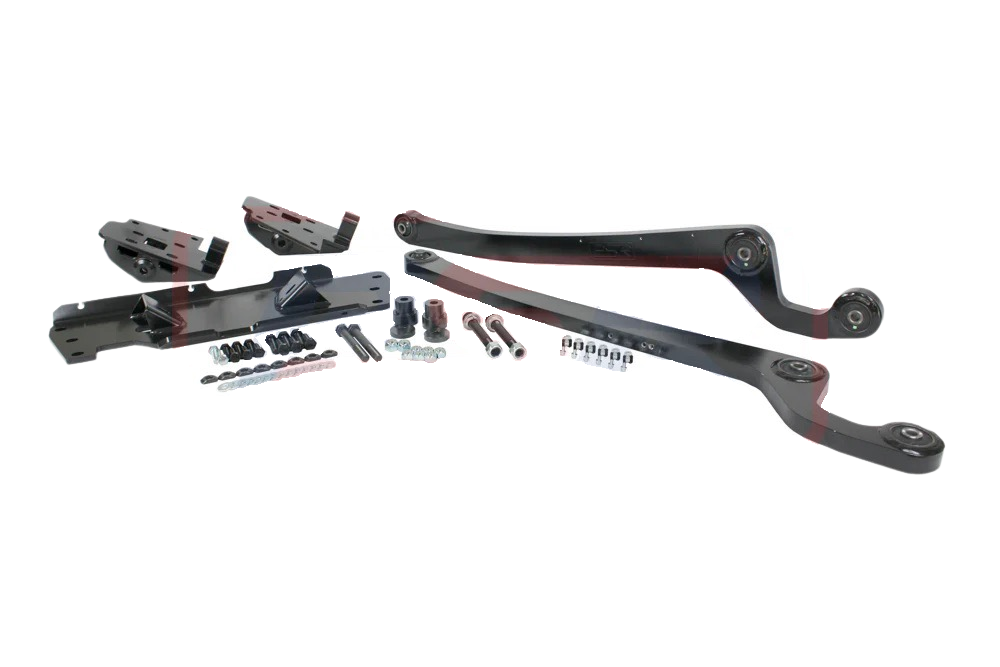

Kit comes with all items for fitment to the vehicle including radius arms, drop boxes, gearbox X-member and all fasteners required. Please specify engine and gearbox combinations below when ordering. SYSTEM COMES WITH A NO BEND GUARANTEE. This means no matter what you have put our control arms or radius arms through we will replace them*!

• Suited to 6" lift
• NO BEND GUARANTEE
• 32mm flame cut plate from high strength plate
• Longest radius arm on the market
• Genuine bushes
• Sway bar and ABS mount optional for all variations
• Complete replacement X-member and drop box assembly
• Ability to run our heavy duty bash guard coupled to the replacement X-member
• Huge increase in strength and improved clearance with our X-member
• CNC machined rear locating washers and shanked bolt for ultimate strength and location of the radius arm
• Welded using certified practices
• Wheel push for clearance
• Painted black for ultimate stealth

Shipping Policy

PSR offer custom built suspension solutions, with unique adjustability and performance.

These kits are assembled to order to suit your accessory and weight requirements, with an average lead time that can vary between 1-3 weeks.

If you need a specific eta, please contact us before ordering and we will be sure to assist you.

Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout.

We can provide door to door delivery options for an extra fee, Please contact our sales team on 1300 773 494 or sales@ppdperformance.com.au within 24hrs of the order being placed if you would like us to quote this option for you.
