Nissan Patrol (1988-2015) GQ (Y60) / GQ Cab Chassis Coil/Coil / GU Cab Chassis Coil/Coil / GU Wagon S1 (Y61) / GU Wagon S2-5 (Y61) Roadsafe Bolt-In Coil Drop Out Cone Kit - Pair

Upgrade your Nissan Patrol GQ with this complete 100mm suspension lift kit, built around Roadsafe components. Designed for touring, towing and serious off-road work, it's supplied and supported by the suspension specialists at PPD Performance.

Vehicle Compatibility

Engineered to fit the Nissan Patrol GQ. Confirm your exact build year and chassis against the Compatible Vehicles tab before ordering, or contact our team for a fitment check.

Key Features

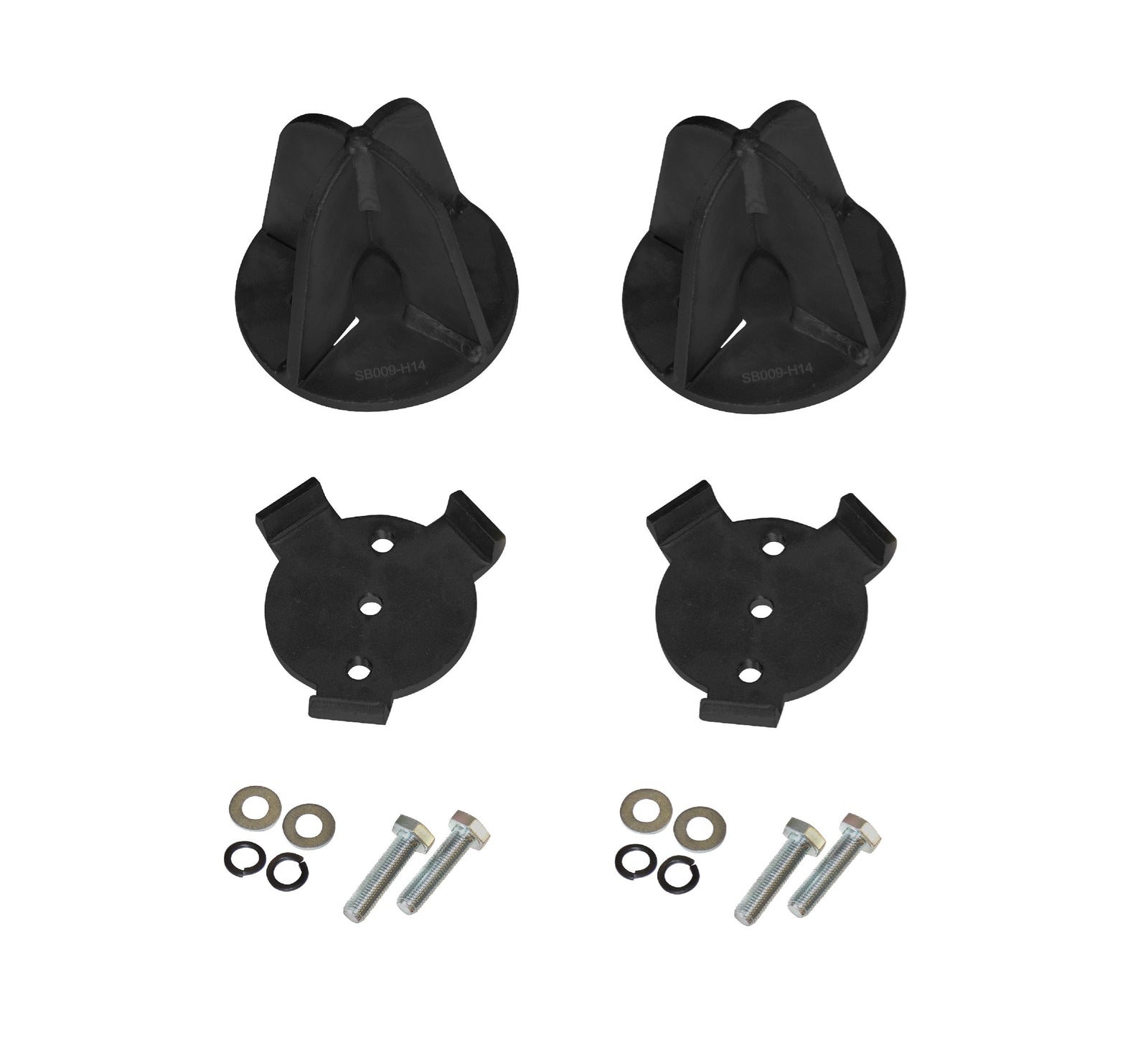

The Roadsafe Coil Drop Out Cone Kit is the simple bolt-in solution to the long-standing issue of coils becoming loose and failing to reseat properly during articulation and down travel. This problem, often encountered when using long-travel shocks, can cause coils to fall out of position, especially while off-roading. The Roadsafe Drop Out Cones are designed to fit snugly under the coil hats, allowing the coil to drop an additional 100mm before it falls out. When combined with Roadsafe Coil Retainers (which secure the base of the coil to the diff), this setup enables you to use a longer shock—approximately 100mm longer—without the risk of the coil falling out of place. The Drop Out Cones also help guide the coil back into its correct seating position during compression.

Ride Height Increase

This setup provides approximately 100mm of lift. Final height varies with vehicle age, fitted accessories and constant load.

Touring & Towing

Load-rated springs and quality damping support touring and towing — a controlled, level ride when fully loaded or towing a heavy trailer, with the stability to match.

Off-Road Performance

Increased ride height and wheel travel deliver the clearance and control needed for serious off-road and 4x4 touring conditions.

Supply & Fit at PPD Performance

As suspension specialists and a fully equipped workshop, PPD Performance can supply this Australia-wide and professionally install and align it to your Nissan Patrol GQ. Talk to our team for expert advice on the right setup for your touring, towing and off-road needs.

Compatible Vehicles:

• Nissan Patrol GQ (Y60) 2/1988-8/1989
• Nissan Patrol GQ (Y60) 9/1989-1998
• Nissan Patrol GQ Cab Chassis Coil/Coil 1992-11/1997
• Nissan Patrol GU Cab Chassis Coil/Coil 12/1997-2015
• Nissan Patrol GU Wagon S1 (Y61) 12/1997-2000
• Nissan Patrol GU Wagon S2-5 (Y61) 4/2000-2015
