SL60SIDE Side Straight Slide

SL60SIDE Side Straight Slide
PRODUCT CODE: SL60SIDE
PRODUCT TYPE: Side Straight Slide

FEATURES:

• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• All fixing and tie-down straps
• MSA 4X4’s Lifetime Guarantee

SIMPLE, EASY, CONVENIENT ACCESS TO A FRIDGE

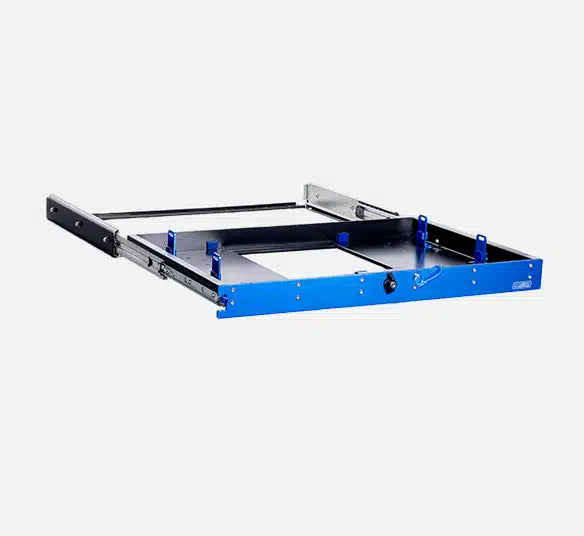

This model is designed for specific applications where the Straight Slide is better suited sideways, as the vehicle does not have enough depth for a standard Straight Slide to be installed.

The Side Straight Slide has a flat mounting base allowing for a secure fitment into the back of a vehicle. Features high-quality, over-extension roller bearings that create a smooth, slide-out and slide-in movement of the fridge. It also allows maximum slide extension, providing greater access to the fridge over the tailgate or rear bar. The unique lock-in and lock-out mechanism ensures the slide will stay in its intended position regardless of the angle of the vehicle. Key lock, locking runner and supplied tie down kit ensure the tray and fridge are secure whilst travelling.

The uniquely recognisable MSA 4X4 blue anodised faceplate provides a tough, durable and eye-catching finish, which is a standard feature across the range.

Specifications

Code	SL60SIDE
Weight	26kg
Fridge Tray1	520×840
Slide Length Closed2	560+20
Slide Length Open3	1215+20
Overall Width4	905+20
Mount to Base	30
Freight Dimensions	920×610×140
Freight Weight	28kg
(all measurements displayed are in mm)
