Toyota Hilux (2005-2015) 3L D4D KUN Performance Upgrade - Stage 1

  • Sale
  • Regular price $1,399.00

Toyota Hilux (2005-2015) 3L D4D KUN Performance Upgrade - Stage 1 available on AfterPay. We deliver Australia-wide! – Sydney, Brisbane, Melbourne, Adelaide & Perth.


Ready to unleash the power potential of the the 1KD-FTV engine?

The best bang for buck on the KUN Hilux is an exhaust & tune, so PPD has packaged these items together at an affordable price to get you the best gains for the best price!

PPD Performance Stage 1 Performance Upgrade Package

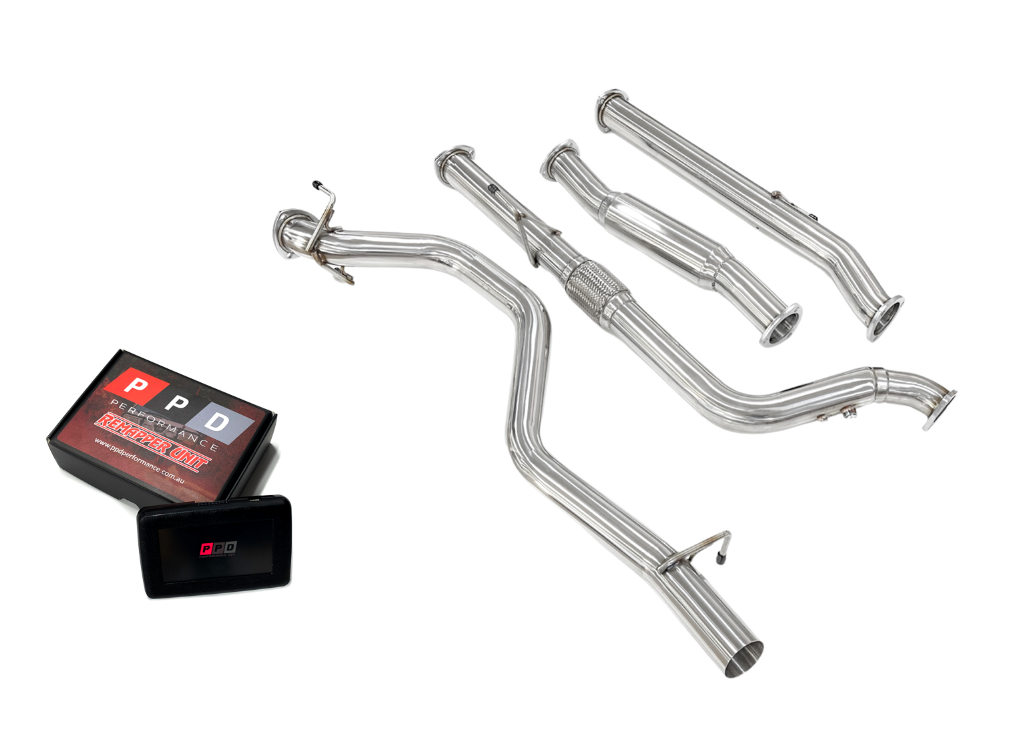

Package includes the following:

  • PPD Stainless 3" Turbo-back Exhaust
    • Catalytic Converter ($100 extra), required for street legality.
    • Hot-dog Resonator (no charge option)
  • PPD Remapper Unit
    • Custom tune based off our dyno experience, optimised for towing, economy or power.
    • EGR Functionality Disabled (if requested, for off road use only).

This Stage 1 Performance Package includes everything needed to take the KUN Hilux from the standard 170hp and 360Nm, to 205hp+ and 450Nm+.

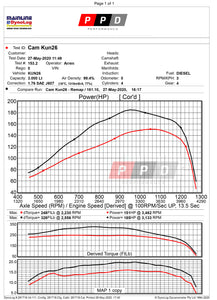

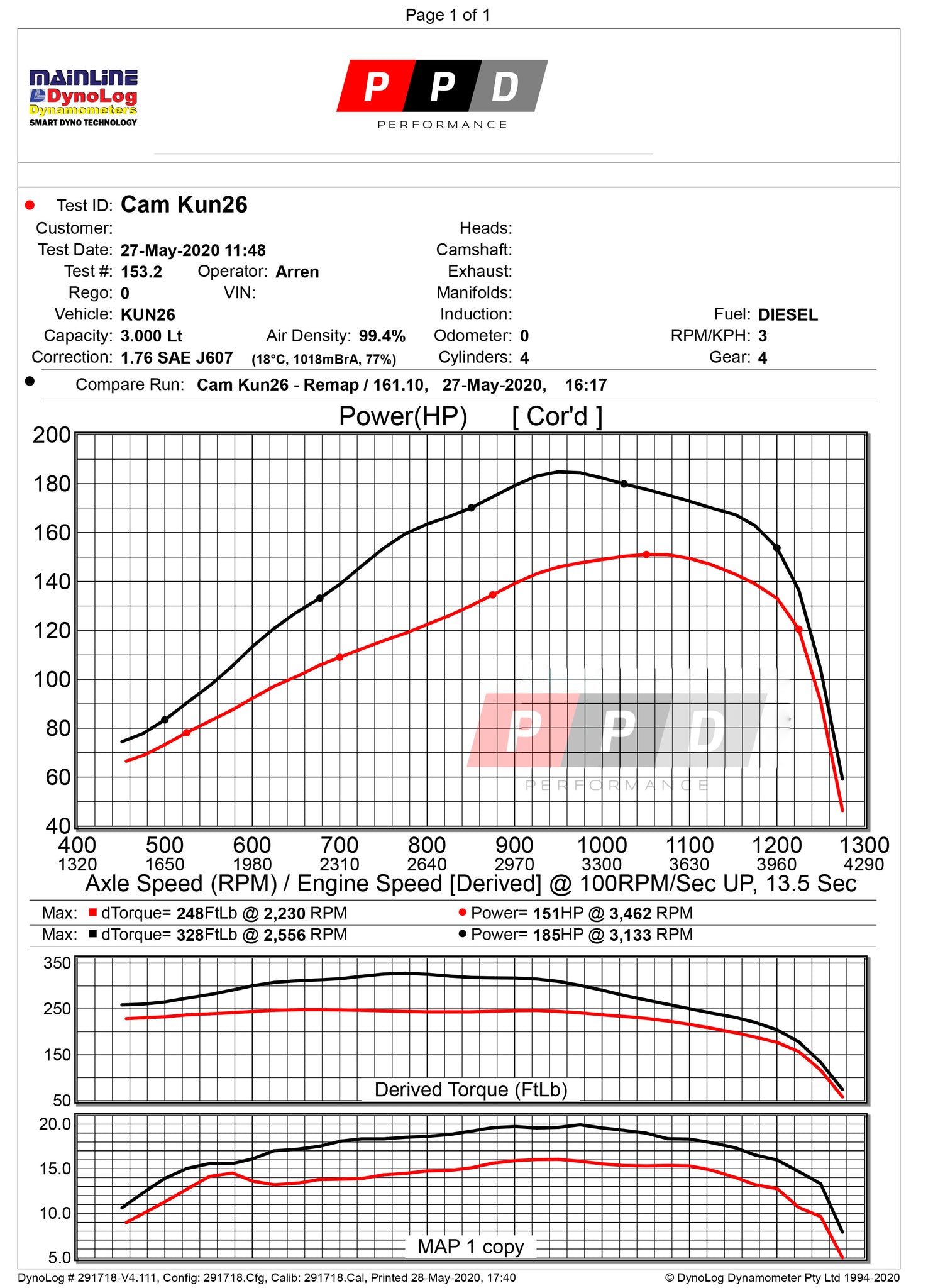

On our dyno, most KUN Hilux's will record around 150hp at the wheels (~170hp at the engine), with over 23% gains occuring in peak power, and at 2600rpm an incredible 34% gain in torque.

We've used our experience in modifying 100+ KUN Hilux's to develop tunes that suit each users application. Once the remapper unit is received you will be able to provide us with the ECU file from your car and request what type of tune you want.

These kits provide everything needed for the DIY enthusiast. Simply bolt on the exhaust and follow the instructions provided to load our tune (remap) into your car!

You will be able to advise us of your desired tuning requirements after receiving the remapper device.

PLEASE NOTE: The PPD Performance Remapper is locked to a single car, it cannot be used on multiple cars.



Due to this item exceeding the couriers manual handling limits we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout. We can provide door to door delivery options for an extra fee, Please contact our sales team on 1300 773 494 or within 24hrs of the order being placed if you would like us to quote this option for you.

At PPD Performance, all of our exhausts proudly feature:

Mandrel Bent Piping

PPD Performance exhausts comprise of mandrel bent, stainless pipe work, delivering uncompromising flow, performance, and sound. Mandrel bending involves placing a mandrel inside the piping, before it is bent to shape. In comparison; cheaper press bending from other manufacturers squashes the tube as it is bent, reducing flow.

Mandrel Bend

304 Grade Stainless Steel

Tired of your mild steel exhaust systems rusting out after a year or less? Time to shop for a stainless steel system? There’s still some things you need to be aware of. Our competitors typically advertise their exhaust products as stainless steel. Most don't stipulate the differences between ferretic 409 grade stainless steel and austenitic 304 stainless steel.

Significant differences exist between the metals that make one better for performance exhaust applications than the other. Let us explain

The corrosion resistance of your 4x4 exhaust depends on the content of chromium and nickel found in the alloy. 409 grade stainless steel is used by many manufactures due to its medium strength, formability and very low cost. Typically, 409 grade stainless steel has a chromium content of between 10.50% - 11.75% and a nickel content of less 0.50%.

Why do we use 304 grade stainless steel piping for 4x4 performance exhausts? Because it is more resistant to rusting than ferretic based stainless steels such as 409. However, because of its low ferrous content, 304 can develop a golden colour when exposed to high heat over time. In fact, the ferrous metal content is so low that magnets won’t stick to it, making the identification of 409 and 304 grade stainless steel very easy.

Put simply, 304 grade stainless is the best value material used in the 4x4 exhaust game when strength, corrosion resistance and performance are at the top of your list of priorities.

Type 304 steel is engineered with chromium and nickel content and proves to be resistant to oxidation, corrosion, and durability.

Together with a polished finish - it is a great choice for your 4x4 offering excellent corrosion resistance from exhaust emissions, moisture and beach exposure.


Bolt on Installation

All PPD Performance exhausts are designed to follow the same orientation and layout as the factory exhaust, making for easy bolt on installations. Our systems utilise the standard hanger locations, which means you don't have to use anything other than the factory rubbers.


Fitting Components

All PPD Performance exhaust systems include a fitting kit comprising of all required bolts, gaskets and clamps.


At PPD Performance, we understand you need peace of mind. All PPD Performance exhaust systems are covered by a confidence inspiring 2 year warranty.


We cater for most models of 4wds - check for your's here!
