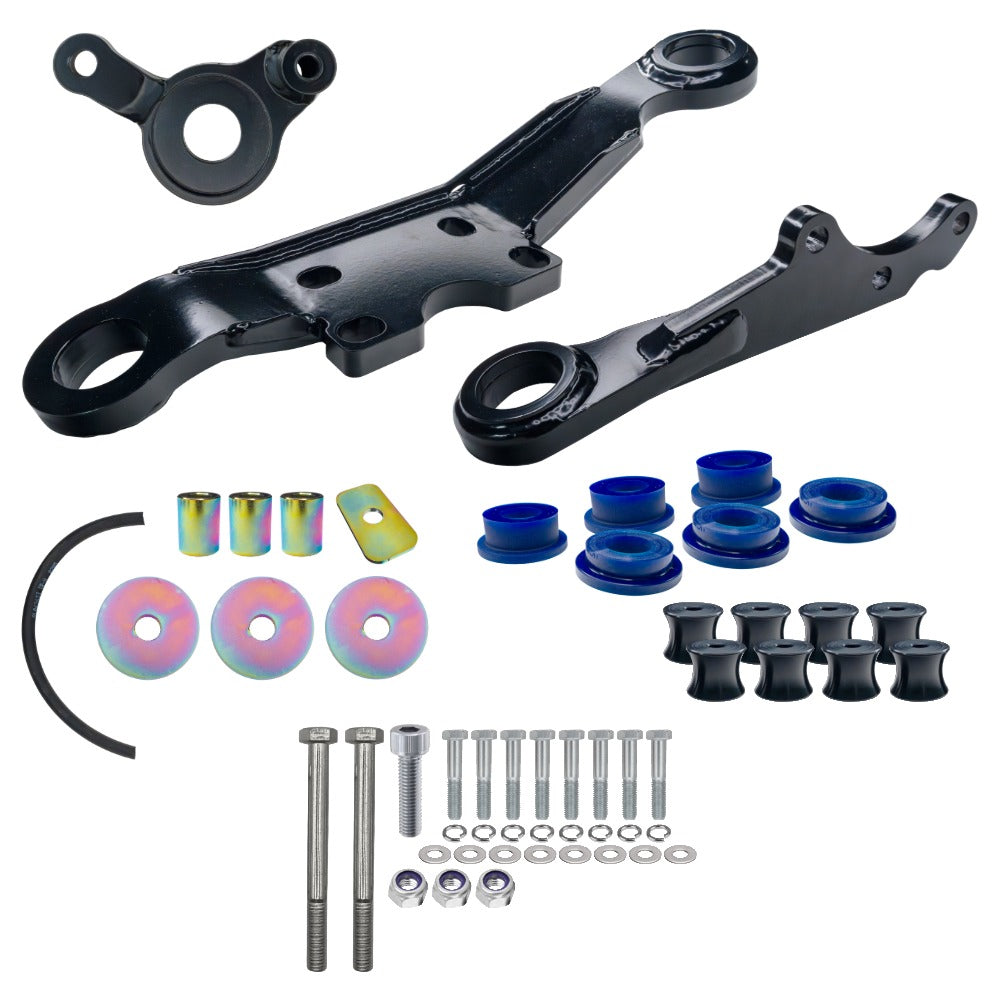

Toyota Hilux (2005-2025) Superior Engineering Superior Gen 2 Diff Drop Kit 40mm to suit 2005-2025 with 2-Bolt or 4-Bolt Diff Housing (Kit)
PRODUCT DESCRIPTION
SKU: DDRP-A-HLX09-D | PID: 59394
Please see compatibility tab to confirm fitment.
Product Info
Superior Gen 2 40mm Diff Drop Kit is designed for Toyota Hilux models from 2005 to 2025 with either 2-bolt or 4-bolt front differential housings; providing a 40mm differential drop to help correct front driveline geometry on lifted vehicles. Built specifically for lifted Hilux applications, this kit helps reduce CV operating angles and take some of the additional stress out of the front driveline.
Lifting a Hilux changes the relationship between the front differential, CV shafts and suspension. As the suspension is raised, the differential remains mounted to the chassis while the CVs operate at a steeper angle. The higher the lift and the more suspension travel you have, the more noticeable this change can become.
A 40mm diff drop lowers the front differential assembly, bringing the CV shafts closer to their original operating angle. This helps reduce the working angle of the CV joints and can reduce stress on CVs and boots, particularly when the vehicle is regularly driven off-road or reaches full suspension droop.
The Gen 2 design is suitable for Hilux models equipped with either 2-bolt or 4-bolt front differential housings, making it a versatile option across a wide range of Hilux builds from 2005 through to 2025.
This is particularly useful for vehicles running increased suspension lift, larger tyres or extended-travel suspension where front driveline angles become more critical. By correcting the differential position, the kit helps create a better-balanced suspension and driveline setup rather than simply accepting the increased CV angle that comes with lifting the vehicle.
For Hilux owners running a suspension lift and looking to keep their front driveline working at a more sensible angle, the Superior Gen 2 40mm Diff Drop Kit provides a straightforward way to improve CV geometry and reduce unnecessary stress on the front driveline.
Key Benefits
- Designed for Toyota Hilux models from 2005-2025 with 2-bolt and 4-bolt diff housings
- Provides a 40mm front differential drop reducing CV operating angles
- Improves front driveline geometry eliminating stress on CV joints and boots
- Ideal for lifted and off-road Hilux builds
Important Notes
A diff drop is one part of correctly setting up a lifted Hilux. Suspension lift height, CV angle, shock length and available suspension travel all need to be considered together. Extended-travel shocks can increase coil bind at full droop, so the complete suspension setup should be checked to ensure adequate clearance and correct component operation.
Compatibility
- Toyota Hilux Strut Front [03/2005 - 06/2015] Ute Petrol 2.7 & 4.0ltr
- Toyota Hilux Strut Front [03/2005 - 06/2015] Ute Diesel 3.0ltr TD
- Toyota Hilux Strut Front [07/2015 - 07/2025] Ute Diesel 2.4 & 2.8ltr TD
- Toyota Hilux Strut Front [07/2015 - 07/2025] Ute Petrol 2.7 & 4.0ltr
Shipping & Availability
Superior Engineering offer custom built suspension solutions, with unique adjustability and performance.
These kits are assembled to order to suit your requirements, with an average lead time that can vary between 1-3 weeks.
If you need a specific eta, please contact us before ordering and we will be sure to assist you.
Consolidated Freight Option
Consolidated freight allows PPD Performance to combine multiple orders onto a single pallet and transfer them together, reducing freight costs by sharing them across orders.
This option adds an additional 1–3 week delay on top of the standard 1–3 week supplier lead time.
If you require your item sooner, please contact us before or after ordering to discuss specific lead times or faster freight options.
