Toyota Hilux 4WD (1997-2005) Torsion Bar Front 10/1997-2005 Tough Dog T79C-LH Tough Dog Rear Leaf Spring
TD-T79C-LH

Leaf springs represent one of the most enduring suspension designs in automotive history, maintaining their relevance particularly in commercial vehicles due to their exceptional load-bearing capabilities.

Engineered in Australia, Tough Dog progressive rate leaf springs incorporate both primary and secondary stage leaves, ensuring that the vehicle's ride quality remains uncompromised under varying load conditions. As the spring compresses, the secondary stage engages to mitigate excessive sag, providing a balanced ride.

The manufacturing process is meticulously designed to enhance durability, offering superior corrosion resistance and sag prevention. Tough Dog provides a selection of up to three spring rate options for most applications, allowing for tailored performance based on your vehicle's specific setup.

These leaf springs are precision mandrel and die-formed, oil quenched, hardened, and tempered to guarantee longevity. A military wrap is standard across all part numbers, ensuring added strength and reliability. Each spring is accurately heat-treated and crafted from high-grade spring steel, with anti-friction pads included in most applications to reduce wear.

Pre-stressing the springs helps maintain optimal ride height, while diamond cut ends enhance performance. For vehicles equipped with additional accessories, Tough Dog offers various spring rates to accommodate constant load carrying requirements.

Approximate raised height ranges from 40-50mm, with specific models designed for different load capacities: T79C-LH and T79C-RH for light loads (0-300kg), T79L-LH and T79L-RH for constant loads (300kg), and T79LL-LH and T79LL-RH for heavier constant loads (500kg). When selecting, ensure to choose one of each side (LH and RH) to create a complete pair.

It is advisable to pair these raised springs with long travel shock absorbers for optimal performance. Constant load refers to weight that is permanently added to the vehicle, such as fixed accessories like canopies, steel trays, draw systems, fridges, tool boxes, rear bars, or spare wheel carriers.

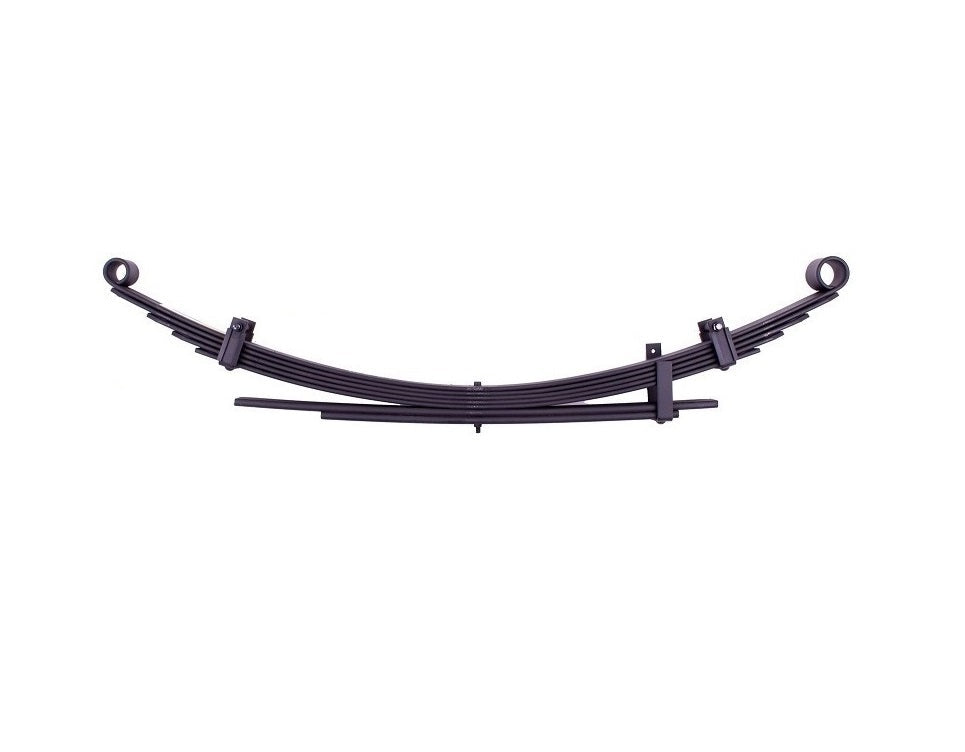

Choosing the appropriate spring rate is crucial for achieving the best results in load carrying capacity, ride quality, and overall ride height. Please note that images provided are for representation purposes only and may not depict the exact part number you are viewing.

Leaf Spring Features

• Precision mandrel & die-formed
• Oil quenched, hardened & tempered to ensure longevity
• Military wrap is standard across all part numbers
• Accurately heat-treated
• Manufactured from high grade spring steel
• Anti-friction pads in most applications
• Pre-stressed to maintain ride height
• Diamond cut ends
• Load rate tested

Spring Rate Options

• T79C-LH - 0-300kg Light Load Passenger Side
• T79C-RH - 0-300kg Light Load Driver Side
• T79L-LH - 300kg Constant Load Passenger Side
• T79L-RH - 300kg Constant Load Driver Side
• T79LL-LH - 500kg Constant Load Passenger Side
• T79LL-RH - 500kg Constant Load Driver Side

Important Notes

• Where LH and RH are noted select one of each to create a pair.
• We recommend fitting long travel shock absorbers with raised springs.
• Constant Load refers to weight that is added to the vehicle and will remain in/on the vehicle at all times.
• Fixed accessories such as a canopy, steel tray, draw system, fridge, tool boxes, rear bar or spare wheel carrier are considered Constant Load.
• It is important to select the most relevant spring rate to achieve the best results for load carrying, ride quality and ride height.

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: 40-50mm

T79C-LH - 0-300kg Light Load Passenger Side
T79C-RH - 0-300kg Light Load Driver Side
T79L-LH - 300kg Constant Load Passenger Side
T79L-RH - 300kg Constant Load Driver Side
T79LL-LH - 500kg Constant Load Passenger Side
T79LL-RH - 500kg Constant Load Driver Side

Sold Individually.
Where LH and RH are noted select one of each to create a pair.
