Toyota Hilux 4WD (1997-2005) Torsion Bar Front 10/1997-2005 Tough Dog T79L-RH Tough Dog Rear Leaf Spring
TD-T79L-RH

Leaf springs represent one of the most enduring suspension designs in automotive history, maintaining their relevance particularly in commercial vehicles due to their exceptional load-bearing capabilities. Engineered in Australia, these progressive rate leaf springs incorporate both primary and secondary stage leaves, ensuring that the vehicle's ride quality remains uncompromised under varying load conditions.

As the spring compresses under load, the secondary stage engages, effectively mitigating excessive sag and enhancing overall stability. The manufacturing process is meticulously designed to maximize durability, offering robust corrosion resistance and sag prevention, ensuring longevity in demanding environments.

These leaf springs are available in up to three distinct spring rate options for most applications, providing the flexibility necessary to tailor the suspension setup to your specific vehicle requirements. Each spring is precision mandrel and die-formed, oil quenched, hardened, and tempered to guarantee extended service life.

Standard features include military wrap across all part numbers, accurate heat treatment, and construction from high-grade spring steel. Many applications also incorporate anti-friction pads to enhance performance. The springs are pre-stressed to maintain optimal ride height and are rigorously load rate tested to ensure reliability.

For vehicles equipped with additional accessories, various spring rates are available to accommodate constant load scenarios. This includes fixed accessories such as canopies, steel trays, draw systems, fridges, toolboxes, rear bars, or spare wheel carriers, which are classified as constant load. It is crucial to select the appropriate spring rate to achieve optimal load carrying capacity, ride quality, and ride height.

Approximate raised height for these leaf springs ranges from 40-50mm, with specific models catering to different load capacities: T79C-LH and T79C-RH for light loads (0-300kg), T79L-LH and T79L-RH for constant loads (300kg), and T79LL-LH and T79LL-RH for heavier constant loads (500kg). When selecting, ensure to pair left-hand (LH) and right-hand (RH) options accordingly.

For enhanced performance, it is advisable to pair these raised springs with long travel shock absorbers. Selecting the most relevant spring rate is essential for achieving the best results in load management, ride comfort, and vehicle height.

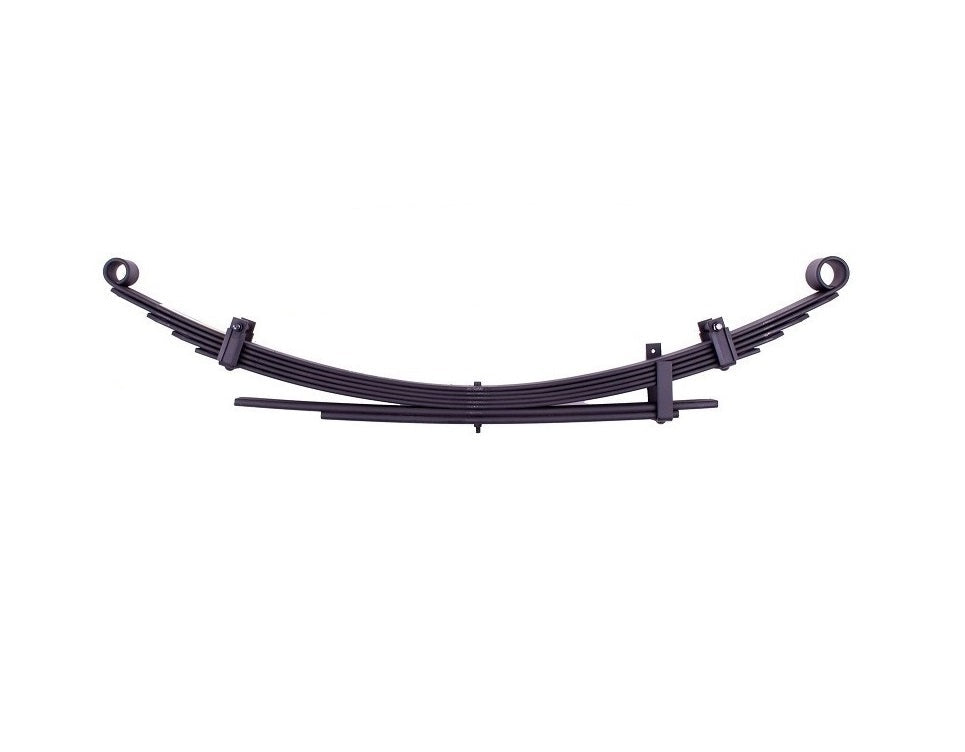

Please note that images provided are for representation purposes only and may not accurately depict the specific part number being viewed.

Leaf Spring Features

• Precision mandrel & die-formed
• Oil quenched, hardened & tempered to ensure longevity
• Military wrap is standard across all part numbers
• Accurately heat-treated
• Manufactured from high grade spring steel
• Anti-friction pads in most applications
• Pre-stressed to maintain ride height
• Diamond cut ends
• Load rate tested

Spring Rate Options

• T79C-LH - 0-300kg Light Load Passenger Side
• T79C-RH - 0-300kg Light Load Driver Side
• T79L-LH - 300kg Constant Load Passenger Side
• T79L-RH - 300kg Constant Load Driver Side
• T79LL-LH - 500kg Constant Load Passenger Side
• T79LL-RH - 500kg Constant Load Driver Side

Important Notes

• Where LH and RH are noted select one of each to create a pair.
• We recommend fitting long travel shock absorbers with raised springs.
• Constant Load refers to weight that is added to the vehicle and will remain in/on the vehicle at all times.
• Fixed accessories such as a canopy, steel tray, draw system, fridge, tool boxes, rear bar or spare wheel carrier are considered Constant Load.
• It is important to select the most relevant spring rate to achieve the best results for load carrying, ride quality and ride height.

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: 40-50mm

T79C-LH - 0-300kg Light Load Passenger Side
T79C-RH - 0-300kg Light Load Driver Side
T79L-LH - 300kg Constant Load Passenger Side
T79L-RH - 300kg Constant Load Driver Side
T79LL-LH - 500kg Constant Load Passenger Side
T79LL-RH - 500kg Constant Load Driver Side

Sold Individually.
Where LH and RH are noted select one of each to create a pair.
