Toyota Hilux Strut Front (03/2005-06/2015) Ute Diesel 3.0ltr TD Superior Engineering Superior 3 Way Adjustable 2.5 Monotube Remote Reservoir Shock Rear 2-4 Inch (50-100mm) Lift Suitable For Toyota Hilux 2005-15
PRODUCT DESCRIPTION
SKU: TAR6-4046P50S | PID: 57096
Please see compatibility tab to confirm fitment.
Description
3 Year and Unlimited Km's Warranty
Superior Engineering Adjustable 2.5 Monotube Remote Reservoir Shocks and Struts are covered by a 3 Year Unlimited Kilometer warranty. For full details, please see our warranty page or give us a call.
Fully Adjustable For Complete Control
The 8-Stage Compression Adjuster reservoir gives you the ability to precisely adjust compression from soft to firm with the simple twist of a knob. This allows you to soften the ride when cruising or firm up the compression when tackling rough terrain or carrying a load.
Heat Treated Alloy Steel Piston
Features race-inspired port configurations and variable rate shim stack technology to provide vehicle-specific damping performance and optimum ride quality. In addition, a composite Teflon wear band offers low internal resistance and high compressive strength, enhancing shock performance.

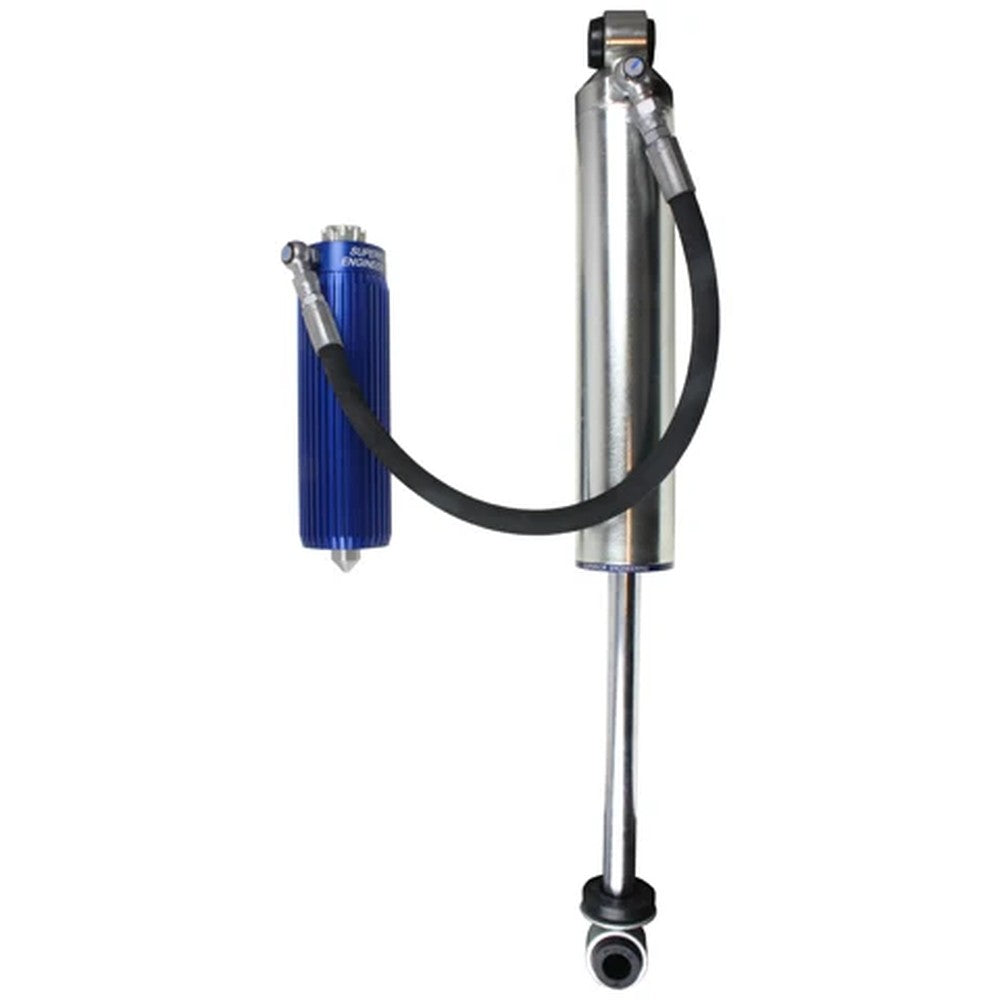

Remote Reservoir Canister
The remote reservoir canister provides increased oil volume and greater cooling capacity. The internal floating piston separates the shock oil and nitrogen, eliminating foaming or mixing of the oil and gas that produces shock fade.
Highest Quality Materials
CR3+ plated bored and honed cylinder tubes, aircraft-quality billet aluminium components, high-pressure hydraulic hose and seals are used throughout. The 22mm hard-chromed shafts are designed for maximum strength and durability in lifted and performance applications.
Fully Rebuildable For Long Life
These Superior Remote Reservoir Shocks are fully rebuildable, serviceable and upgradeable. Replacement parts are carried in stock, allowing the user to finely tune, adjust and service their shocks to achieve the longest possible service life from their suspension.
8-Stage Adjustment
The 8-Stage Compression Adjuster reservoir allows you to precisely control compression from soft to firm with a simple twist of a knob. This feature enables you to soften the ride for cruising or firm up the compression when navigating rough terrain or carrying a load.
60mm Piston
Our Superior 2.5 Remote Reservoir Shocks feature race-inspired port configurations and variable rate shim stack technology, delivering vehicle-specific damping performance and optimum ride quality.
The robust 60mm Teflon-coated piston is engineered for enhanced durability and smooth operation. It works in conjunction with a composite Teflon wear band that offers low internal resistance and high compressive strength.
The sophisticated velocity sensing valve stack automatically adjusts to changing driving conditions, ensuring improved ride quality and handling.
Remote Reservoir Design
The remote reservoir canister increases oil volume and enhances cooling capacity. The internal floating piston separates the shock oil and nitrogen, preventing foaming or mixing of the oil and gas and helping eliminate shock fade.
Shock Shaft
The 22mm steel shaft features a super-polish, chromium-plated finish specifically engineered for long-lasting durability and corrosion resistance. This ensures optimal performance and an extended lifespan, even under demanding conditions.
Nitrogen Gas Charged
Nitrogen gas charged to minimise cavitation during the high-speed oscillations encountered in off-road conditions, ensuring consistent performance and stability.
Features
- Suitable for the rear of Toyota Hilux models from 2005-15
- Suitable for 2-4 inch (50-100mm) lift applications
- 3 Year and Unlimited Km's Warranty
- 8-stage compression adjustment using the adjuster mounted on the remote reservoir
- 60mm piston with Teflon coating
- 22mm super-polished shaft
- 66mm outer body
- Floating piston inside the reservoir
- CR3+ surface finish
- Unique valving and piston design
- Long-travel remote reservoir design for the applicable lift height
- Supplied individually
Videos
WARNING: This shock absorber contains pressurised gas. Do not open, puncture, cut, heat, weld near or try to take the shock apart. Releasing the gas pressure the wrong way can cause serious injury. Servicing should only be done by a qualified shock technician with the correct equipment.
Shock Servicing
Regular servicing keeps your shocks damping the way they should and helps them last longer, especially after heavy touring, corrugations or long periods off-road. Superior Engineering offers shock servicing through our workshop. To find out what's involved and to book a service, visit our Shock Servicing page.
Compatibility
- Toyota Hilux Strut Front [03/2005 - 06/2015] Ute Petrol 2.7 & 4.0ltr
- Toyota Hilux Strut Front [03/2005 - 06/2015] Ute Diesel 3.0ltr TD
Shipping & Availability
Superior Engineering offer custom built suspension solutions, with unique adjustability and performance.
These kits are assembled to order to suit your requirements, with an average lead time that can vary between 1-3 weeks.
If you need a specific eta, please contact us before ordering and we will be sure to assist you.
Consolidated Freight Option
Consolidated freight allows PPD Performance to combine multiple orders onto a single pallet and transfer them together, reducing freight costs by sharing them across orders.
This option adds an additional 1–3 week delay on top of the standard 1–3 week supplier lead time.
If you require your item sooner, please contact us before or after ordering to discuss specific lead times or faster freight options.
