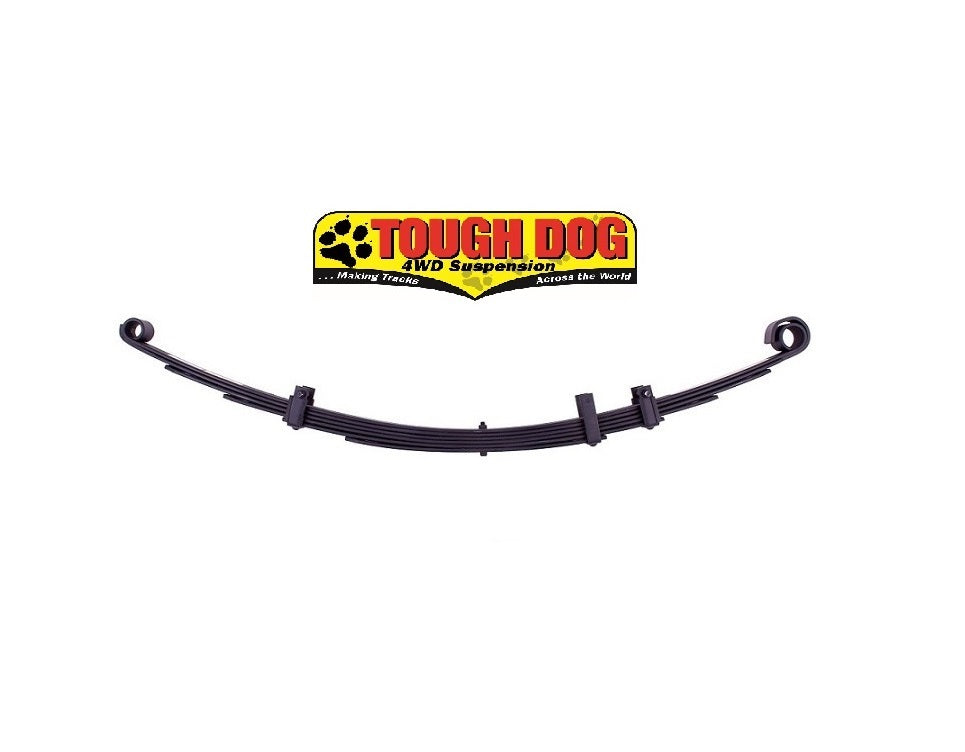

Toyota Landcruiser (1965-1984) 45 47 Series 1/1965-1984 Tough Dog BP-013 Tough Dog Front Leaf Spring 25mm Eyering
TD-BP-013

Leaf springs represent one of the most enduring suspension designs in automotive engineering, maintaining their relevance in commercial vehicles due to their exceptional load-bearing capabilities. Designed in Australia, these progressive rate leaf springs incorporate both primary and secondary stage leaves, ensuring that the vehicle's ride quality remains uncompromised under varying load conditions.

As the spring compresses under load, the secondary stage engages, effectively preventing excessive sag and maintaining optimal ride height. The manufacturing process is meticulously engineered to maximize durability, offering robust corrosion resistance and sag prevention, ensuring longevity in demanding environments.

These leaf springs are available in up to three distinct spring rate options for most applications, providing the flexibility to select the ideal spring rate tailored to your vehicle's specific setup. Each spring is precision mandrel and die-formed, oil quenched, hardened, and tempered to guarantee extended service life.

Standard features include military wrap across all part numbers, accurate heat treatment, and construction from high-grade spring steel. Many applications also incorporate anti-friction pads to enhance performance. The springs are pre-stressed to maintain ride height and are rigorously load rate tested to ensure reliability.

For vehicles equipped with additional accessories, there is no need for concern. These leaf springs are designed with varying spring rates to accommodate extra loads or constant load carrying. The approximate raised height achieved with these springs ranges from 40 to 50mm, with specific configurations available for different setups:

45 Series with 25mm Eye: BP-013 - Suitable for Steel Bar; BP-013H - Compatible with Steel Bar and Winch.

47 Series with 35mm Eye: BP-015 - Suitable for Steel Bar; BP-015H - Compatible with Steel Bar and Winch.

For optimal performance, it is recommended to pair these raised springs with long travel shock absorbers. Please note that images provided are for representation purposes only and may not accurately depict the specific part number being viewed.

Leaf Spring Features

• Designed in Australia
• Progressive rate leaf springs
• Primary and secondary stage leaves
• Prevents excessive sag
• Maximum life and corrosion protection
• Up to 3 spring rate options
• Precision mandrel & die-formed
• Oil quenched, hardened & tempered
• Military wrap standard
• Accurately heat-treated
• Manufactured from high grade spring steel
• Anti-friction pads in most applications
• Pre-stressed to maintain ride height
• Diamond cut ends
• Load rate tested

Spring Rate Options

• Approximate Raised Height: 40-50mm
• 45 Series with 25mm Eye
• BP-013 - Up to Steel Bar
• BP-013H - Steel Bar and Winch
• 47 Series with 35mm Eye
• BP-015 - Up to Steel Bar
• BP-015H - Steel Bar and Winch
• Recommendation: Fit long travel shock absorbers with raised springs

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: 40-50mm


45 Series with 25mm Eye
BP-013 - Up to Steel Bar
BP-013H - Steel Bar and Winch



47 Series with 35mm Eye

BP-015 - Up to Steel Bar
BP-015H - Steel Bar and Winch

Sold Individually.
