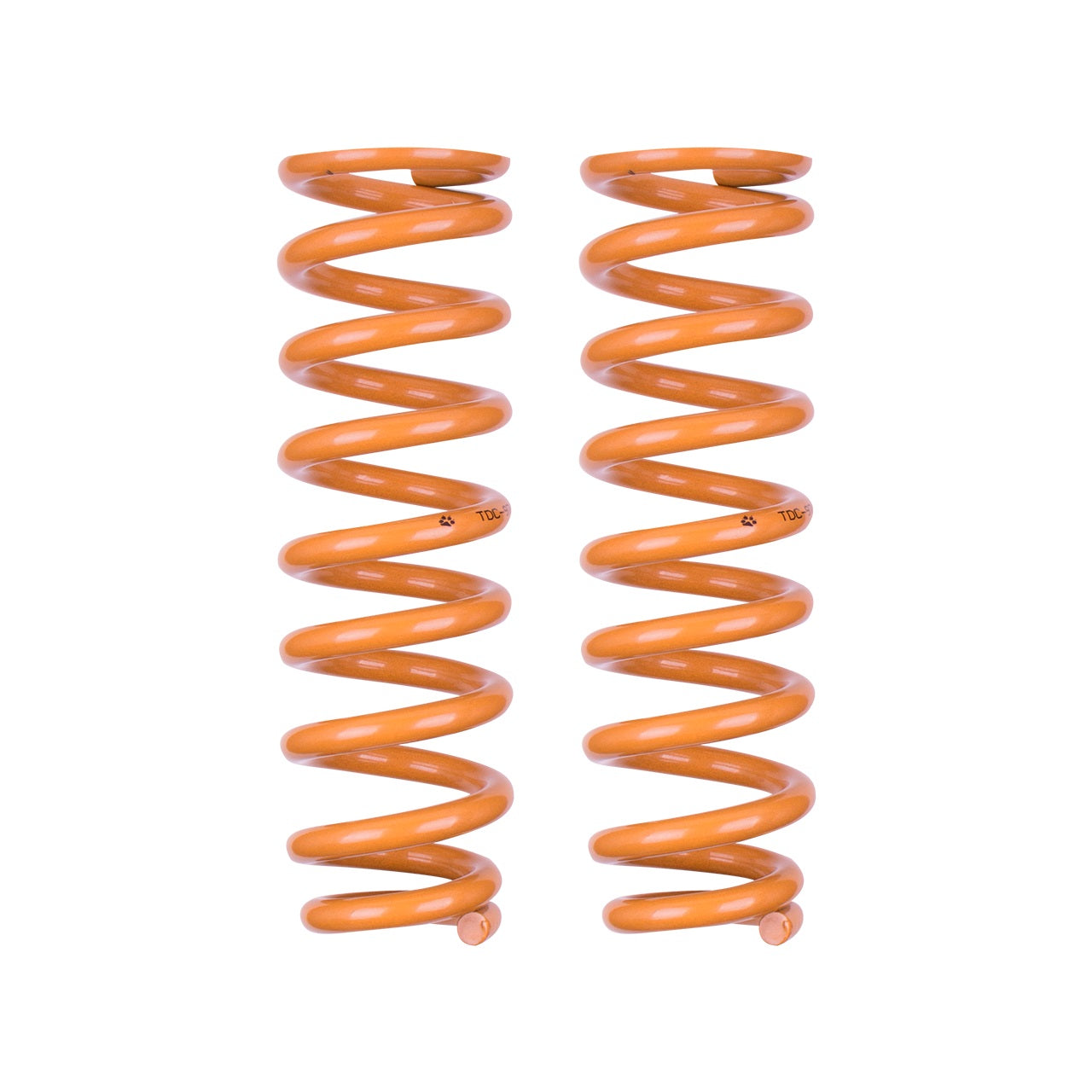

Toyota Landcruiser (1998-2007) 105 Series 03/1998-2007 Tough Dog TDC949L Tough Dog Rear Raised Coil Springs
TD-TDC949L

Designed and manufactured in Australia using high-quality German X5K spring steel, Tough Dog coils are engineered to optimize performance while utilizing less material. This innovative design ensures superior ride quality and exceptional load-carrying capabilities. The springs are crafted to retain their original memory even under heavy loads, resulting in a lighter and more durable coil that can withstand rigorous conditions.

Each coil undergoes a meticulous process that includes shot peening to relieve stress, scragging, and load testing to ensure reliability. The springs are formed on precision mandrels and hot-formed to maintain their spring memory, ensuring consistent performance over time. A powder-coated finish not only enhances the aesthetic appeal but also provides excellent corrosion resistance, making these coils suitable for various environments.

For vehicles equipped with additional accessories, Tough Dog offers a range of spring rates tailored to accommodate extra weight or constant load scenarios. Constant Load refers to weight that is permanently added to the vehicle, such as canopies, steel trays, draw systems, fridges, toolboxes, rear bars, or spare wheel carriers. Selecting the appropriate spring rate is crucial for optimizing vehicle setup and load management, ensuring the best performance and handling characteristics.

Approximate Lift Heights are as follows: 20-25mm Lift for TDC949SL (0-300kg Light Load), TDC949HSL (300kg Constant Load), and TDC949L (500kg Constant Load). For a 40-50mm Lift, options include TDC945S (No Load), TDC949L (0-300kg Light Load), TDC949HL (300kg Constant Load), and TDC945H (500kg Constant Load). It is advisable to pair these raised springs with long travel shock absorbers to maximize performance and comfort.

Images provided are for representation purposes only and may not accurately depict the specific part number being viewed.

Specifications

• Designed and manufactured in Australia
• German X5K spring steel
• Maintains superior ride quality
• Retains original memory after heavy loading
• Shot peened to relieve stress
• Scragged and load tested
• Formed on precision mandrels
• Hot formed to maintain spring memory
• Powder-coated for corrosion resistance

Load Carrying Options

• Constant Load refers to weight that remains on the vehicle
• Fixed accessories considered as Constant Load:
• Canopy
• Steel tray
• Draw system
• Fridge
• Tool boxes
• Rear bar
• Spare wheel carrier
• Important to select the option that best suits vehicle setup

Approximate Lift Height

• 20-25mm Lift
• TDC949SL - 0-300kg Light Load
• TDC949HSL - 300kg Constant Load
• TDC949L - 500kg Constant Load
• 40-50mm Lift
• TDC945S - No Load
• TDC949L - 0-300kg Light Load
• TDC949HL - 300kg Constant Load
• TDC945H - 500kg Constant Load
• Recommendation: Fit long travel shock absorbers with raised springs

Select the most appropriate spring rate option to suit the fixed accessories on the vehicle:

Approximate Lift Height: As noted
20-25mm Lift

TDC949SL - 0-300kg Light Load
TDC949HSL - 300kg Constant Load
TDC949L - 500kg Constant Load

40-50mm Lift

TDC945S - No Load
TDC949L - 0-300kg Light Load
TDC949HL - 300kg Constant Load
TDC945H - 500kg Constant Load

Sold as a Pair.
