SKU: SUP-78DIFF-DDLTC | PID: 48858
Please see compatibility tab to confirm fitment.

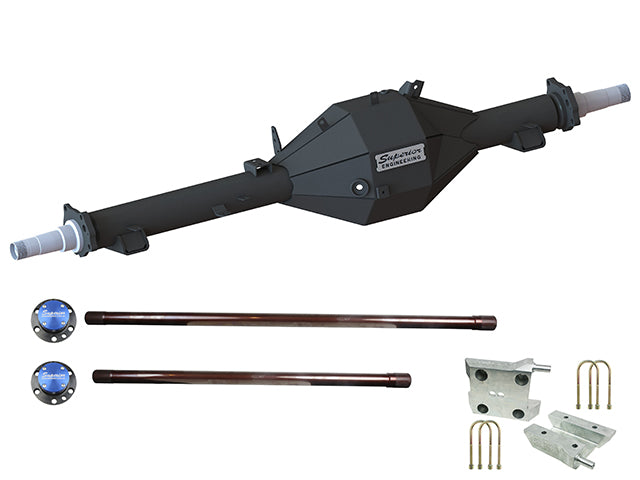

Superior Chromoly Diamond Diff Housing
Do you want the toughest Australian Made Track Corrected 70 Series diff housing option on the market in Australia today? Here it is - Superior Engineering’s CAD-designed, CNC Laser Cut and folded Chromoly Diamond Diff Housing, which is designed in-house to handle incredible loads and is manufactured right here in Brisbane, QLD.
KEY FEATURES & BENEFITS
Superior Engineering‘s Track Corrected Chromoly Diamond Diff Housing is one of the most affordable options on the market for a 70 Series Landcruiser, courtesy of our long list of features and standard inclusions, which our competitors charge extra for.
Description
Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housings are manufactured 100mm wider than your OE Diff Housing to bring the rear wheel track out parallel with the front diff in your 2007 to Current VDJ70 Series Landcruiser; including 76 Series Wagons, 78 Series Troop Carriers and 79 Series Single & Dual Cabs.
Australian Made by Australians, for Australians, Superior Engineering’s Leaf Sprung Track Corrected Diamond Diff Housing is the ultimate in functionality & strength – with a Load Rating of 3,150kg and covered by a Lifetime Warranty against bending or cracking.
But, the benefits of this housing do not stop there!
Building the strongest track-corrected diff housing on the market begins at the centre, with our unique 6mm thick/830mpa Chromoly wide-diamond centre section, which includes an additional 4mm welded armour plate that wraps from the back to the bottom of the housing.
Superiors Diff Centre Section is designed to accommodate your OEM diff centre, in both Locked or Un-locked variants, and boasts additional internal gussets to help hold the 90mm OD/13.5mm Thick Axle Tubes in place. The use of our 90mm Axle Tubes enhances the housing’s resistance to bending from loads or impacts.
Our large diameter/heavy wall axle tube, integrated into our wide diamond centre with additional internal gussets negates the need for any further external bracing..
This perfect combination is the basis for an incredibly strong diff housing that requires no additional external bracing for its strength, giving you a diff housing that is not only strong but with more ground clearance than our competitors.
Continuing the strength theme, Superior Engineering utilises 4140 Chromoly spindles at each end of the axle tubes, which have been designed with serviceability in mind and are 100% compatible with your OEM/Factory Supplied brakes & wheel bearings.
Brand New Toyota Genuine Diff Studs & Toyota Genuine Axle Seals are also compatible and supplied with the housing at no additional charge.
Understanding the importance of manufacturing a precision product for the demands of the Australian Climate, we CNC machine the required surfaces of the final product to ensure this housing is not only 100% Straight but that the axles also run true to the diff centre, ensuring years of trouble-free adventure in your Landcruiser.
Included with your housing is a pair of our 300m Axles manufactured exclusively for Superior Engineering by RCV in the United States, which are paired with our Billet 4340M Drive Plates.
RCV is known for producing the world's toughest axles, with their products found in Ultra4 race cars and off-road vehicles worldwide, giving us the confidence we need to offer a lifetime warranty against breakage on the axles as well.
Superior Engineering’s Bis 80 High Clearance U-Bolt plates are also supplied as standard with this housing, granting even more ground clearance & strength than competitors, free of charge.
To top it all off, Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housings come coated in a hard-wearing Sating Black powder coat with optional custom colours available at your request.
We are so confident in the overall design, manufacturing process and test results mentioned above means Superior Engineering can confidently offer our customers a lifetime warranty against bending or breaking on the axle housing itself.
This Warranty is supported by our Australia Wide Dealer Network offering full brand support wherever your travels take you.
Need more information? Contact your local Superior Engineering Stockist, or give our sales team a call at (07) 5433 1411
FAQ
“Will this housing suit my VDJ70 Series Landcruiser?”
Yes - Superior Engineering Track Corrected Chromoly Diamond Diff Housings are available for all VDJ70 Series Models including the 76 Series Wagons, 78 Series Troop Carriers and 79 Series Single & Dual Cabs from 2007 – Current, including all NON-VSC and VSC models.
“What is the benefit of fitting a Track Corrected Housing to the rear of my VDJ70 Series Landcruiser?”
From the factory, all VDJ70 Series Models (2007 to Current) have a significant track difference from front to rear, with the rear housing being 100mm narrower than the front. On the road, this track difference is not overly noticeable, but on soft/loose surfaces and in sand, this difference becomes more noticeable as the rear fights to stay in the wheel tracks cut by the front. By fitting a Superior Engineering Track Corrected Chromoly Diamond Diff Housing you are ensuring better vehicle stability and safer handling when Off-Road in your Landcruiser.
“Can I install this diff myself?”
Absolutely. Superior Engineering Track Corrected Chromoly Diamond Diff Housings can be installed by any individual with sound mechanical knowledge, and self-installation will not have an impact on having the modification approved. As part of your purchase, Superior Engineering will supply your vehicle certifier with the required LB2 documentation to approve legally the vehicle modification in your State or Territory once the housing has been installed.
“How long does installation take?”
Assuming none of your OE items needs to be replaced (Wheel Bearings, Brakes etc.) an installer with sound mechanical knowledge should be able to install this housing in 6-8 hours.
“Do you offer custom colour options?”
Superior Engineering offers the Track Corrected Chromoly Diamond Diff Housing in Black Powder Coat as standard but does offer a range of other colour options. Please contact our sales team for more information.
“I have an existing GVM Upgrade – Will this housing affect my compliance?”
No – The Superior Diff Housing features the industry’s highest 70 Series axle load rating at 3,150kg. This far exceeds the axle load requirements for all 4x4 LC70 GVM Upgrades on the market. Superior Engineering will supply your vehicle certifier with the required LB2 documentation required to approve legally the vehicle modification in your State or Territory.
“How do I go about engineering my diff housing upgrade?”
Once installed, your vehicle will require an engineering inspection and certification in your State or Territory. You will need to employ the services of a local Engineer or Vehicle Certifier, who will undertake the inspection of your vehicle on your behalf. Superior Engineering will supply the required LB2 documentation directly to your vehicle certifier who will then approve the modification.
“Will my insurance company void my policy with this diff housing installed?”
Insurance on your vehicle should not be an issue provided you have the installation/modification approved by an Engineer or vehicle certifier. Once the change has been legally approved, and the details of the modification lodged with your State Government transport authority, we recommend contacting your insurer to update your policy details.
“Being a custom housing, are parts hard to source?”
No - The Superior Engineering Track Corrected Chromoly Diamond Diff Housings has been designed with serviceability in mind and maintains the use of as many OEM components as possible including the Diff Centre, Brakes, Seals, Wheel Bearings and Hubs. Replacements of these components can be easily sourced from your local Toyota Dealer or an Automotive Parts store.
“What happens if I break an axle?”
The RCV 300M Axles supplied with the Superior Engineering Track Corrected Chromoly Diamond Diff Housings are the strongest option available on the market and are covered by a lifetime Warranty against breakage. In the unlikely scenario that you break an axle, simply contact your local Superior Engineering Stockist, or call our sales team on (07) 5433 1411 to arrange a replacement under Warranty. We ship worldwide.
FITTING NOTES
Installation of the Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housing is relatively simple and should only take a competent installer 6-8 Hours pending the condition/serviceability of your vehicle. Using your vehicle workshop manual remove the factory housing as instructed and replace it with the new Superior Engineering housing. The supplied 300M axles and drive plates replace the original axle assemblies. You will retain your factory diff centre (locked or unlocked) and all your factory brake assemblies.
CONSUMABLE ITEMS REQUIRED FOR INSTALLATION
TECH SPECS
| DIFF HOUSING MATERIAL | Chromoly 830 MPA 6mm plate and 13.5mm wall tube |
|---|---|
| DRIVE PLATES MATERIAL | Billet 4340 |
| AXLE MATERIAL | 300m |
| SPINDLE MATERIAL | 4140 Chromoly |
| UBOLT PLATE MATERIAL | Bis 80 |
| RATED LOAD | 3150kg |
| FINISH | Black (Standard), Signal Red, Blaze Blue, Superior Silver or Sandy Taupe Powder Coat |
WHAT'S INCLUDED
Superior Engineering offer custom built suspension solutions, with unique adjustability and performance.
These kits are assembled to order to suit your requirements, with an average lead time that can vary between 1-3 weeks.
If you need a specific eta, please contact us before ordering and we will be sure to assist you.
