PRODUCT DESCRIPTION

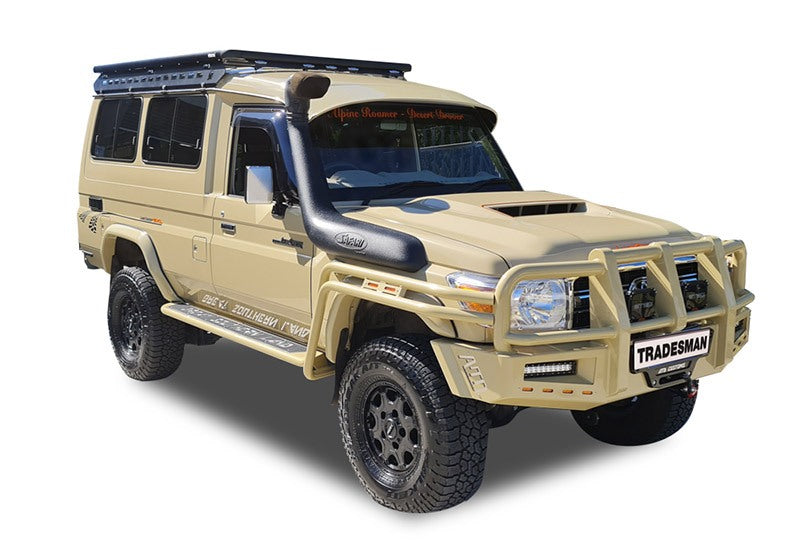

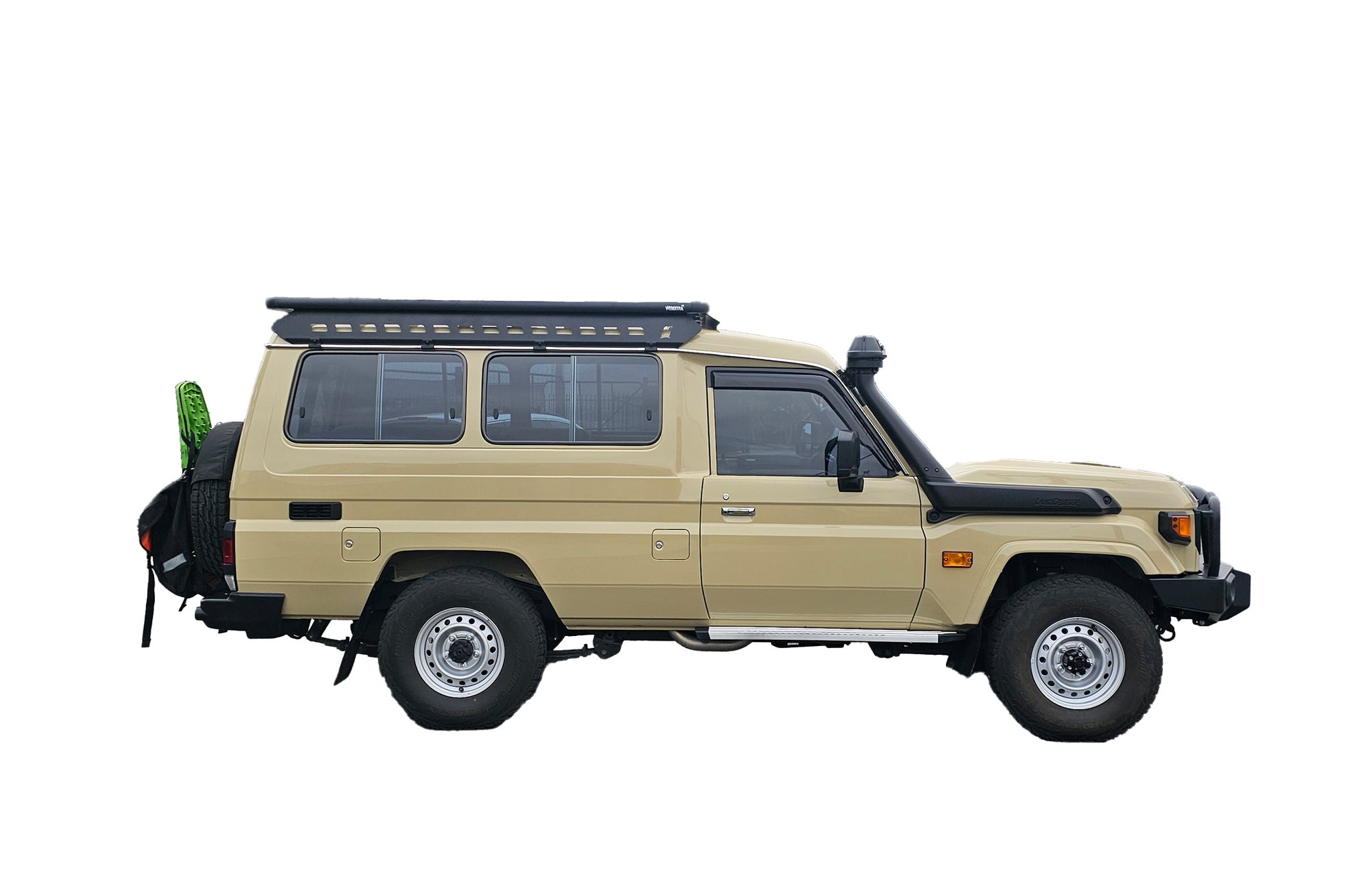

Toyota Landcruiser 78 Series Troop Carrier Wedgetail Platform Roof Rack

Name: Toyota Landcruiser 78 Series Troop Carrier Wedgetail Platform Roof Rack
Brand: wedgetail
SKU: WT-T70T-2214
Price: 2133.03 AUD
Availability: InStock

OUR TOUGHEST 70 SERIES TROOP CARRIER ROOF RACK

Wondering how to make your 70 Series Troopie the toughest in the street? Why not take a look at the all-new Wedgetail rack? The Wedgetail rack is a new generation roof rack combining the aesthetics and functionality of the new generation composite style assembled rack with the traditional strength and proven identity of an Australian manufacturer. Wedgetail roof racks integrate the all-new Wedge-lock glass reinforced corners that significantly increase the strength of this design, allowing us to offer you a full offroad rating regardless of what road you travel. All Wedgetail racks are manufactured here in Melbourne and Sydney Australia by longstanding industry veteran, Tradesman Roof Racks.

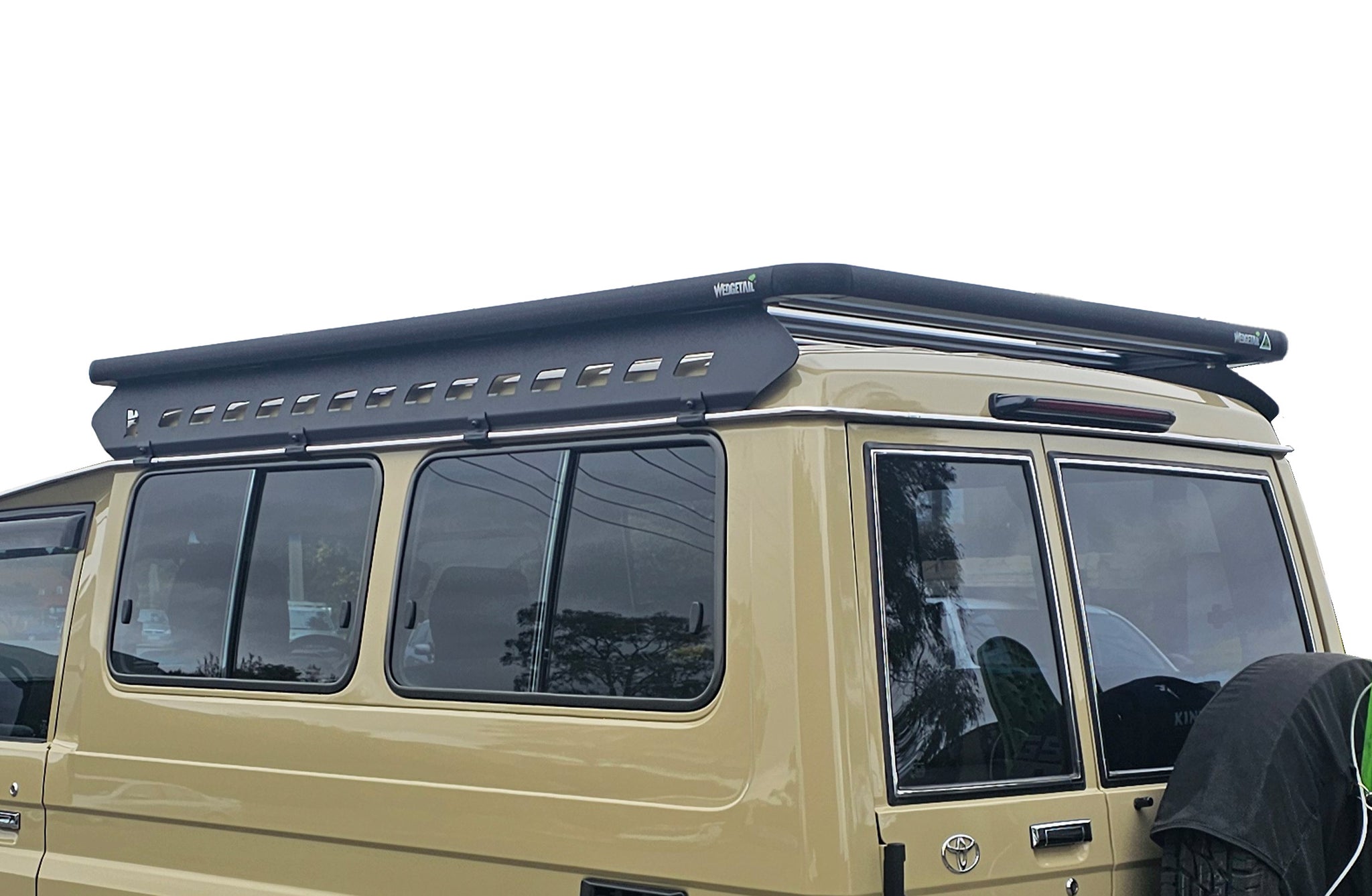

Rear corner view of the Wedgetail rack on the Troopie showing the one piece mounting rail held in place in the roof gutter by fixing clips that bolt through the mounting rails.

High view across a Wedgetail rack showing the cross bars with channels in them to allow the fitting of accessories.

HOW DOES IT FIT?

The Wedgetail roof rack to suit the 70 Series Troopie fits by securing our Wedge-wing one piece mounting kit to the cabin roof gutter sills using four gutter clips on each side and then bolting the Wedgetail platform to the mounting kit. The advantages of this kind of mounting system don't just stop with a higher load rating and improved aesthetics, but it also allows for easy removal. The Wedgetail is removed from the vehicle by removing the eight gutter clips.

HOW DO ACCESSORIES ATTACH?

The Wedgetail platform uses sturdy crossbars that run to the left and right of the vehicle. This crossbar incorporates a heavy-duty channel top and bottom. These channels allow any Wedgetail accessories to be quickly locked in or out; this also means that a large variety of alternative accessories can easily be fitted to the Wedgetail rack if necessary.

WIND NOISE?

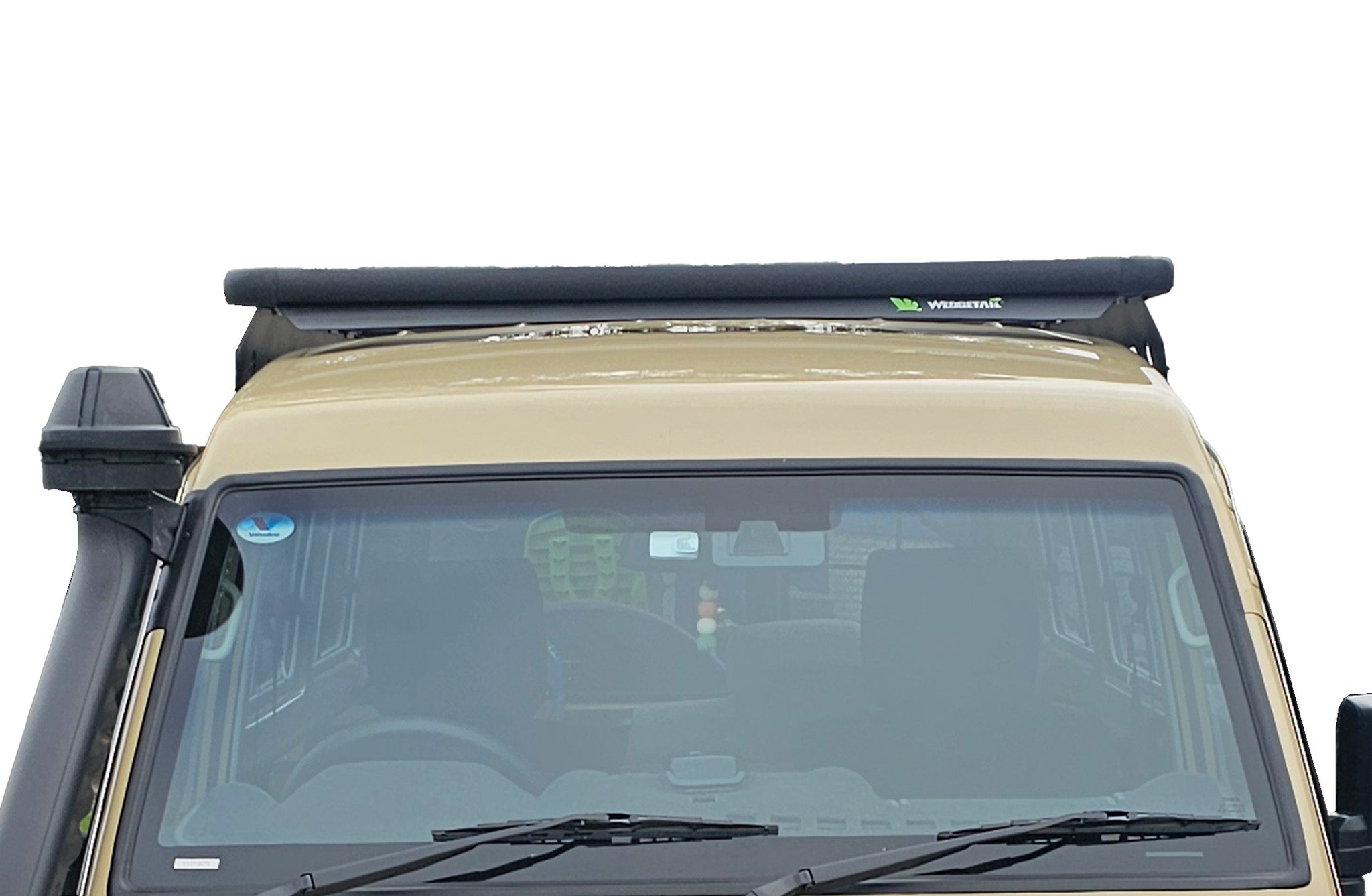

All Wedgetail Racks come standard with a wind deflector to minimise wind noise as much as possible. As well as this Wedgetail racks also include our unique Wedge-flow crossbar design which is the culmination of years of design experience in minimising wind noise. The Wedgetail rack to suit the 70 Series Troopie is no different; we understand how frustrating a noisy roof rack can be and have put every effort into ensuring that the Wedgetail rack is as quiet as it can be.

LOAD RATING?

One thing you can be sure about with a Wedgetail rack is that no matter what road you are on in this country our full load rating will apply. Wedgetail racks do not need to be de-rated in offroad conditions due to the design and construction methods used, including our wedge-lock corners. The load rating for the Wedgetail rack fitted to a Toyota LandCruiser 70 Series Troop Carrier is 150 kg. However, you must be aware of your vehicle's roof loading. This information will be available from Toyota. It is essential that you take the weight of the Wedgetail platform off your roof rating, and this will give your legal carrying capacity (the reason we don't list this on the website is that it can vary between model variants).

Features

The Wedgetail platform roof rack has been developed to fill the need for a new generation composite assembly platform roof rack with the strength to maintain its full load rating on the toughest of off-road tracks.

Built to fit a wide range of 4x4 utes and wagons and selected vans, the Wedgetail platform roof rack is fitted onto a set of mounting rails that are bolted to mounting lugs connected into the sub-structure of the roof or onto the roof gutters and held in place by bolt-on clips.

These mounts spread the weight of the roof rack and its load over the whole mounting system and have the strength to cope with extended periods of off-road use.

Exploded view of the front corner of a Wedgetail rack showing the components that make up the rack with names and descriptions placed on each component.

FRAME AND CROSSBARS

Manufactured using 6060 grade aluminium and extruded in Australia to custom profiles for use as frame components or as crossbars. The frame components are designed for maximum dynamic strength while the crossbars are designed to withstand the direct downwards pressures generated by the weight of items carried on the rack or by accessories fitted on the crossbars.

The frame bars are pre-punched with holes at between 250 and 310 mm spacing for locating of crossbars and fixing of wind deflectors.

All bar components are powder coated in matt black.

A frame rail with a hole punched in the bottom flange which will be used to bolt in a crossbar.

WEDGE-LOCK CORNER UNITS

The corner units are moulded using a composite of nylon and glass-reinforcing mixed with other strengthening substances. Once cast the corner units are machined to remove surplus materials and mounting holes are drilled.

The Wedge-lock corner units have a flanged nut inserted into the outside of the bolt hole. The ends of the corner units are fitted into the frame rails and 8 mm stainless steel bolts are used to fix them in place, creating a strong joint.

A Wedge-lock corner unit is fitted with a nut and then inserted into the frame rail before being fixed in place with a 8 mm stainless steel bolt.

Specifications

Part Number: WT-T70T-2214

Included: WTP-2214
& WTM-T70T-2214

Width: 1450 mm

Length: 2200 mm

Weight: 42 kg

Fit time: 60 minutes

Fitting instructions
