Toyota LandCruiser (2016-On) 76 Series Tough Dog 3″ Lift Kit with BMX 9 Stage Adjustable Shocks

Upgrade your Toyota LandCruiser 76 Series with this complete 3″ (75mm) suspension lift kit, built around Tough Dog components. Designed for touring, towing and serious off-road work, it's supplied and supported by the suspension specialists at PPD Performance.

Vehicle Compatibility

Engineered to fit the Toyota LandCruiser 76 Series. Confirm your exact build year and chassis against the Compatible Vehicles tab before ordering, or contact our team for a fitment check.

Key Features

This kit is a complete suspension kit with Tough Dog BMX 45mm 9 Stage Adjustable shocks and all required fitting components. Tough Dog BMX 45mm 9 Stage Adjustable Shocks feature an external adjuster dial at the base of the shock to alter the shock damping. Adjustments can be made to suit your personal preference or terrain by simply turning the dial to a softer or firmer setting. As well as being fully adjustable, these shocks are equipped with Tough Dog Foam Cell technology, minimising aeration and cavitation to maximise the shocks ability to resist fade, and perform reliably in harsh and demanding conditions. Raised Coil Springs are designed and manufactured in Australia to exacting standards to stand up to some of the harshest conditions found anywhere in the world.

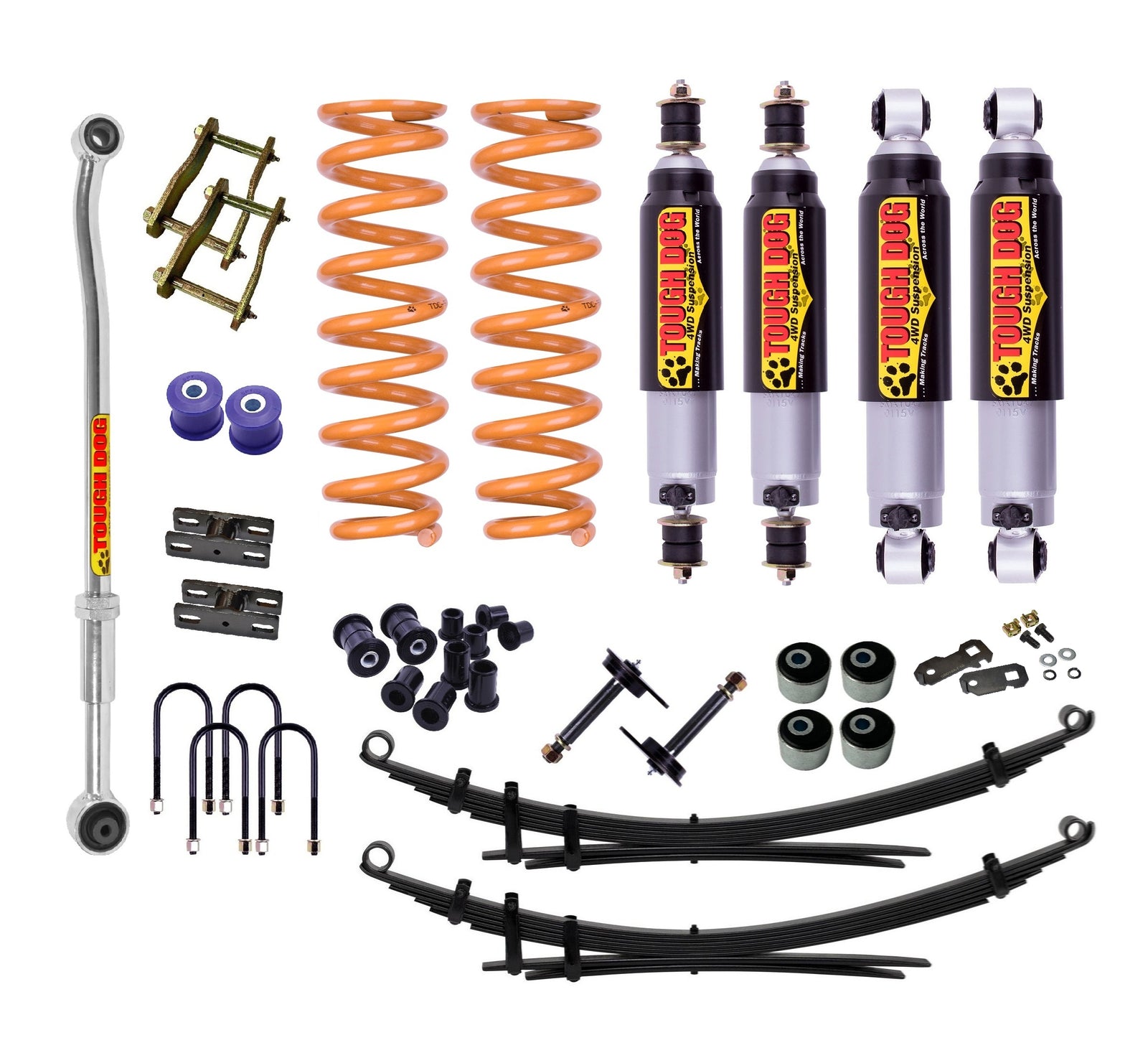

Kit Inclusions

• 1 Pair Tough Dog BMX 9 Stage Adjustable Front Shocks
• 1 Pair Tough Dog BMX 9 Stage Adjustable Rear Shocks
• 1 Pair Front Raised Coils
• 1 Pair Tough Dog Rear Raised Leaf Springs
• 1 Tough Dog Front Adjustable Panhard Rod
• 1 Tough Dog Rear Spring Bush Kit
• 1 Pair Extended Greasable Shackles
• 1 Pair Greasable Pins
• 1 Pair Front Sway Bar Extension Brackets
• 1 ABS Wire Relocation Bracket
• 1 Tough Dog Radius Arm to Diff Mount 2 Degree Caster Offset Bush Kit
• 1 SuperPro Radius Arm to Chassis Mount Offset Bush Kit
• 4 U-Bolts

Ride Height Increase

This setup provides approximately 3″ (75mm) of lift. Final height varies with vehicle age, fitted accessories and constant load.

Spring & Load Options

Choose the spring rate to match how your vehicle is set up. Constant Load refers to permanently fitted weight — a steel tray, canopy, drawers, or a bar and winch — and heavier constant-load springs keep ride height and handling correct under that weight.

Not sure which spring rate suits your setup? Read our Spring Selection Guide or contact PPD Performance for personalised suspension recommendations.

Touring & Towing

Load-rated springs and quality damping support touring and towing — a controlled, level ride when fully loaded or towing a heavy trailer, with the stability to match.

Off-Road Performance

Increased ride height and wheel travel deliver the clearance and control needed for serious off-road and 4x4 touring conditions.

Supply & Fit at PPD Performance

As suspension specialists and a fully equipped workshop, PPD Performance can supply this Australia-wide and professionally install and align it to your Toyota LandCruiser 76 Series. Talk to our team for expert advice on the right setup for your touring, towing and off-road needs.

Compatible Vehicles:

• Toyota Landcruiser 76 Series 2.8L 4Cyl 09/2022-On
• Toyota Landcruiser 76 Series V8 (DPF) 11/2016-08/2025
