Ford Ranger (2018-2022) PX3 4WD EXCLUDING RAPTOR West Coast Suspension Kit
PRODUCT DESCRIPTION
West Coast Suspension Kits
West Coast Suspension kits are a proven upgrade for drivers wanting improved ride height, handling, load support and off-road capability without sacrificing everyday comfort.
Backed by more than a century of suspension experience, WCS components are designed in-house and field-tested to deliver controlled on-road performance, dependable off-road articulation and long-term durability in demanding Australian conditions.
At PPD Performance, we take the guesswork out of choosing your suspension by matching the kit and spring rates to your:
- Vehicle
- Fitted accessories
- Constant load
- Towing requirements
- Intended use
Whether you need a comfortable daily-driven lift, a touring setup or a heavier-duty work-vehicle package, PPD can supply the correct West Coast Suspension solution — with expert advice and professional installation available.

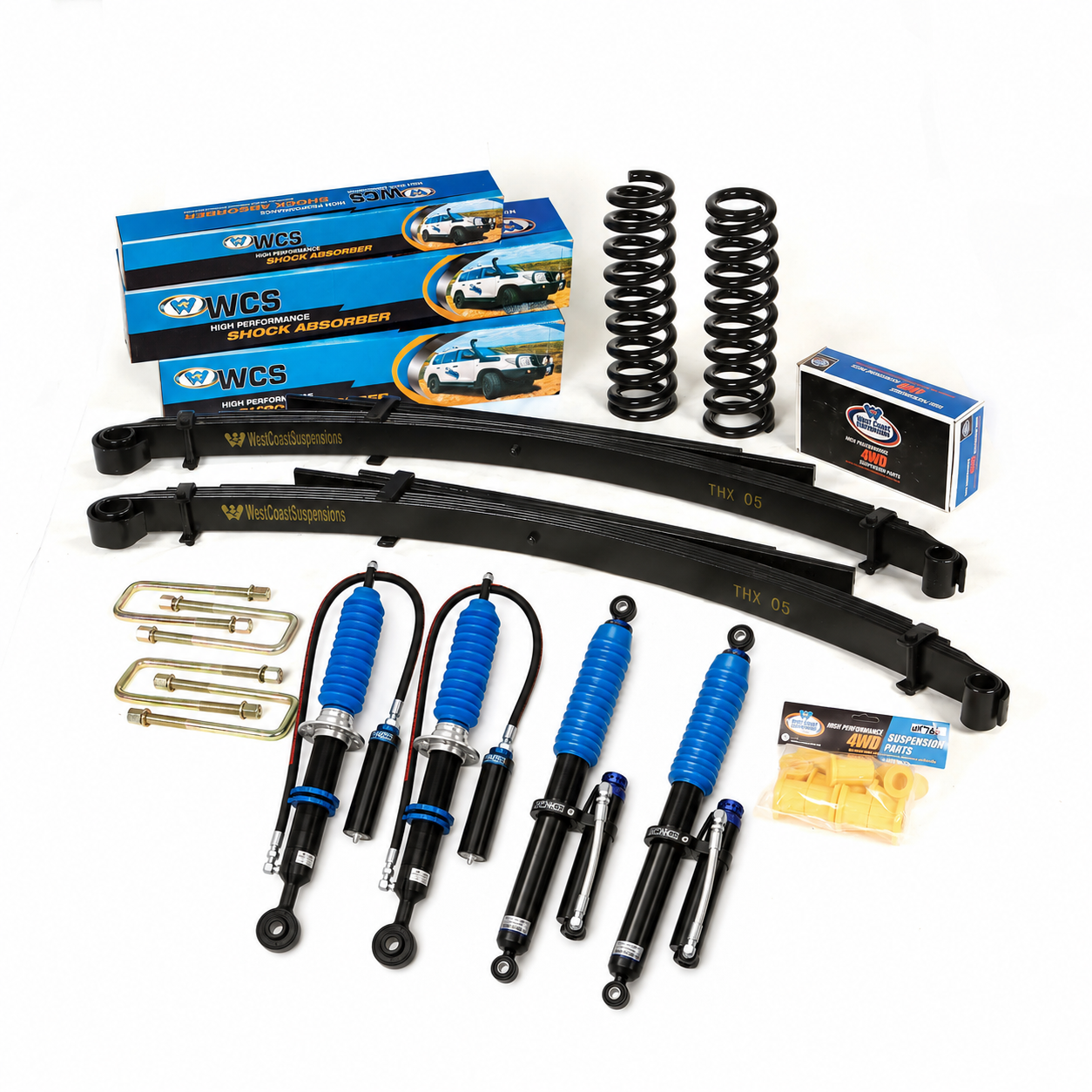

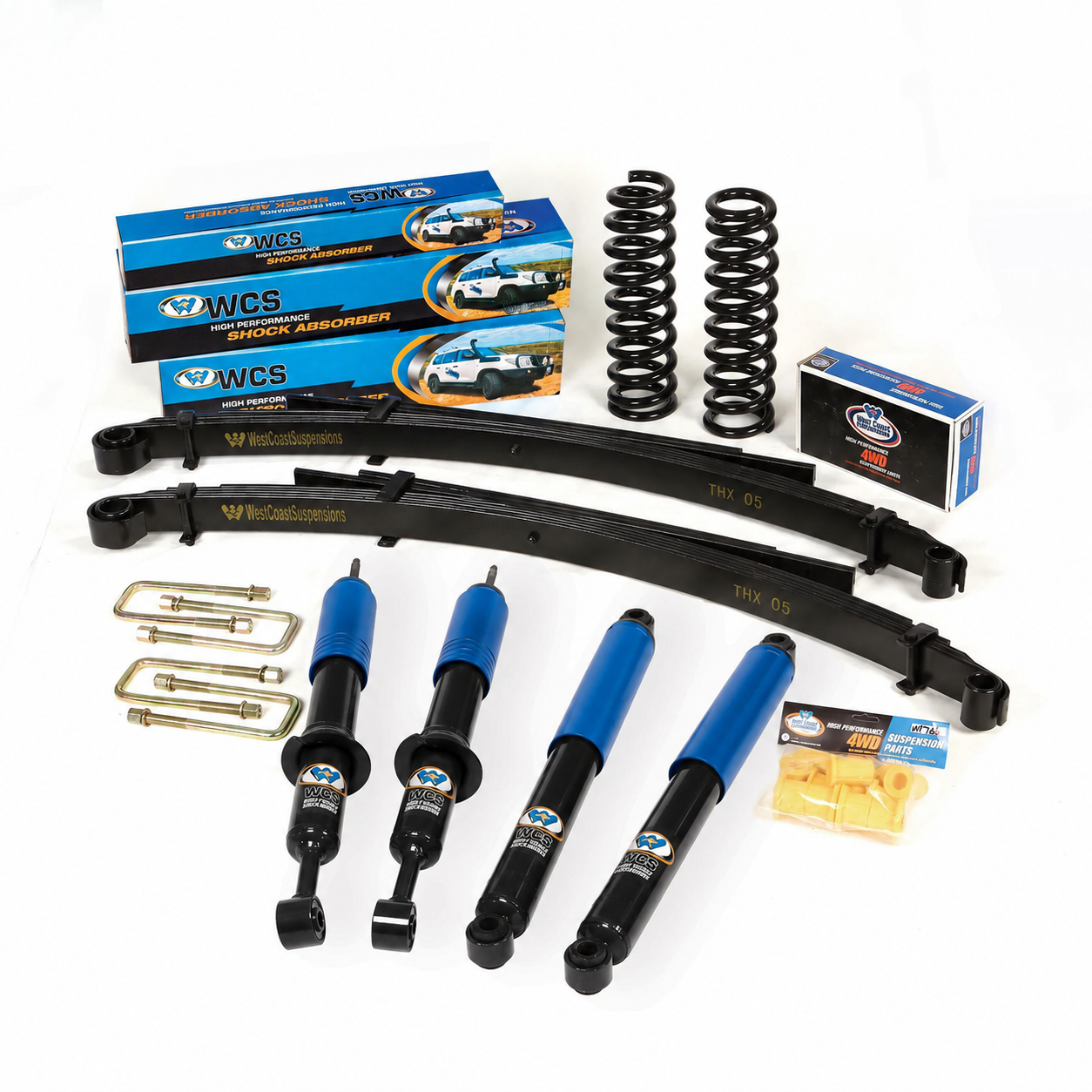

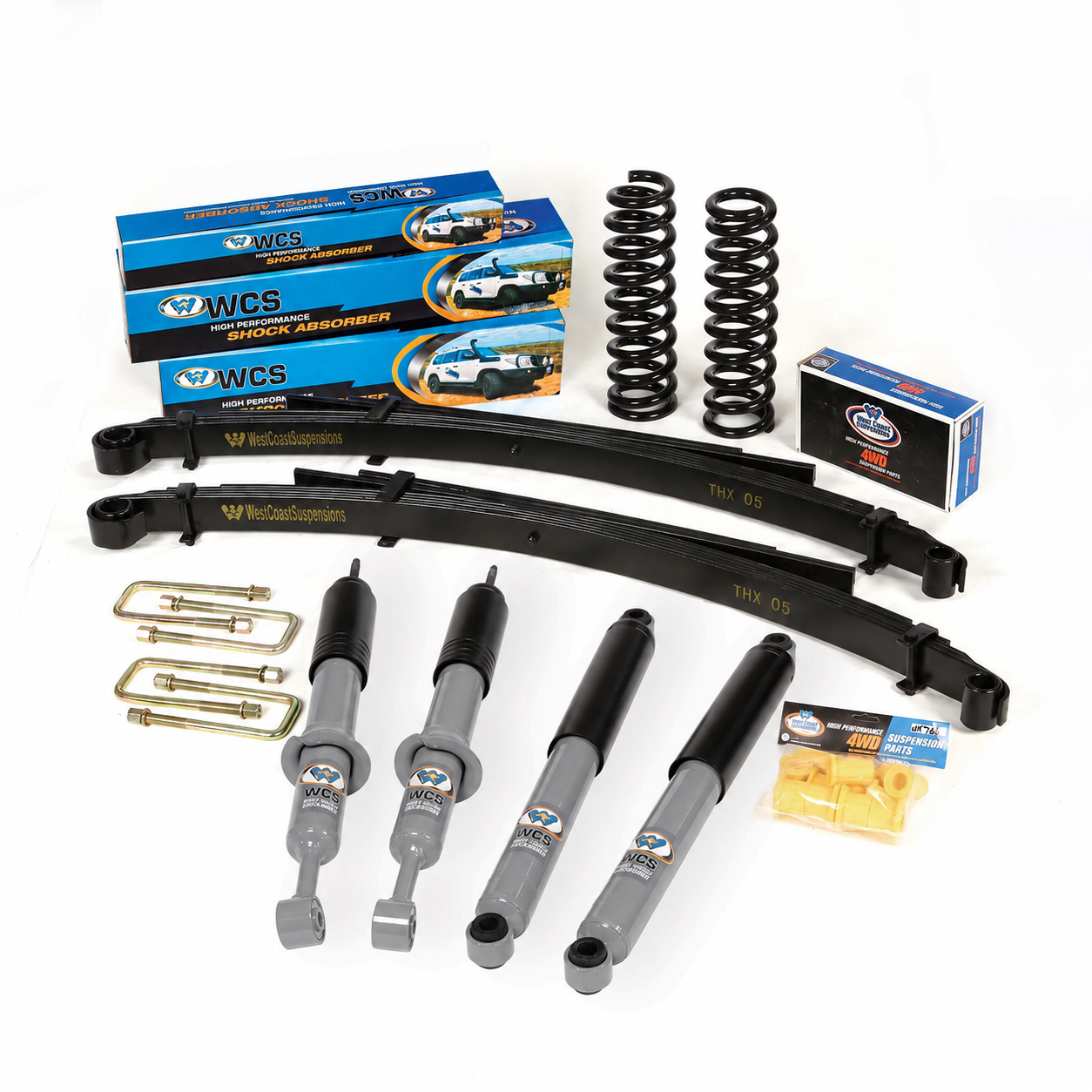

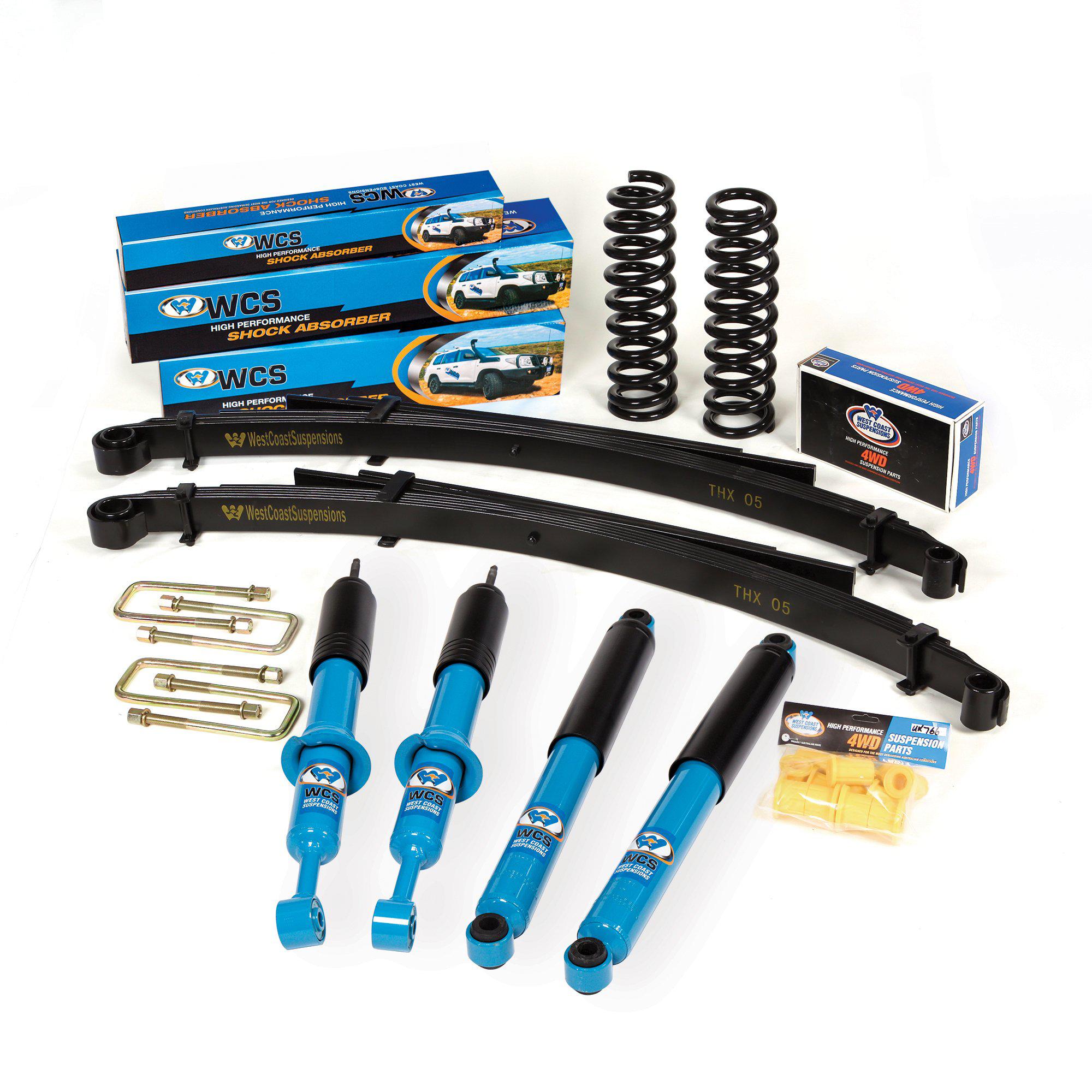

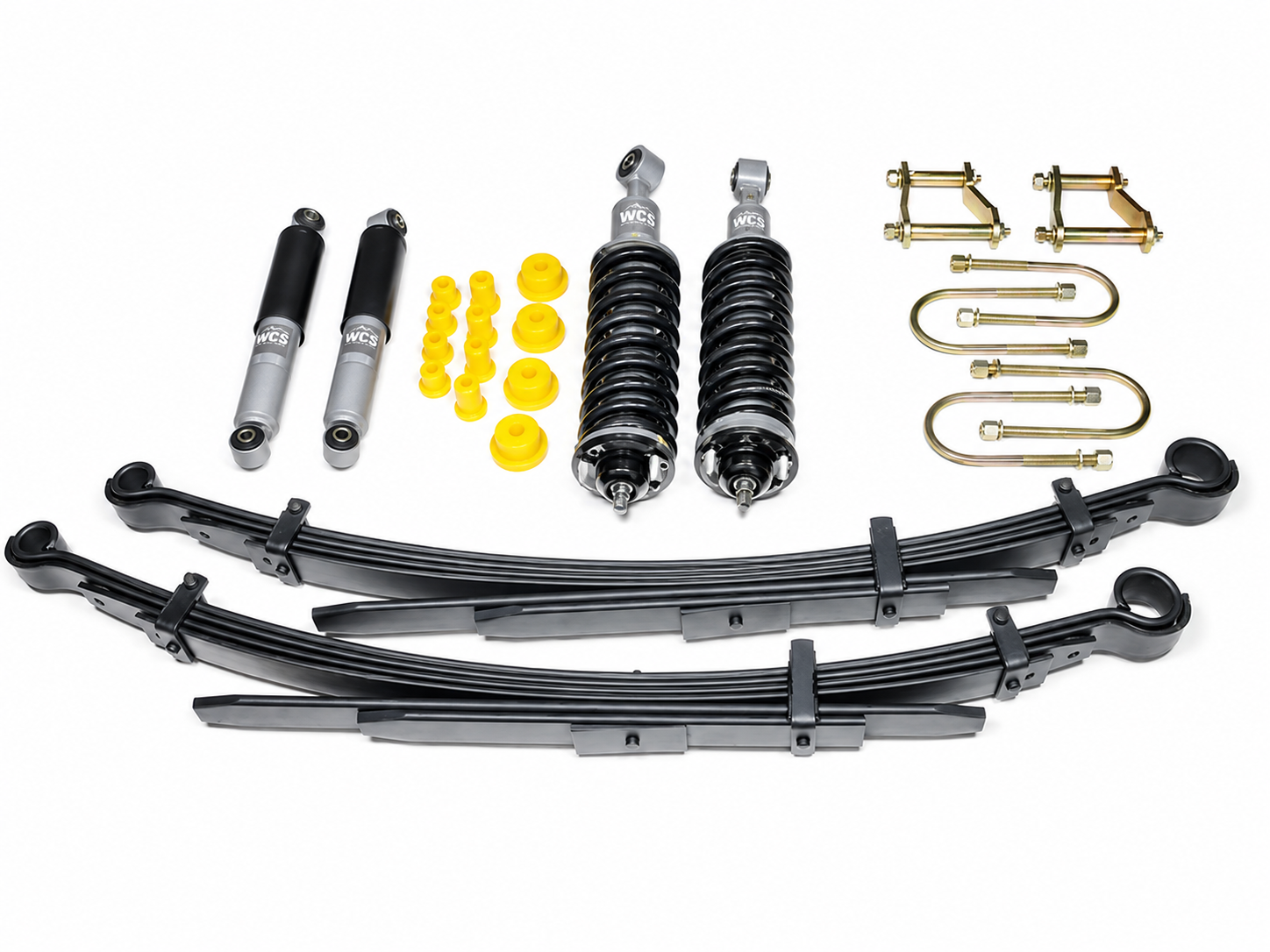

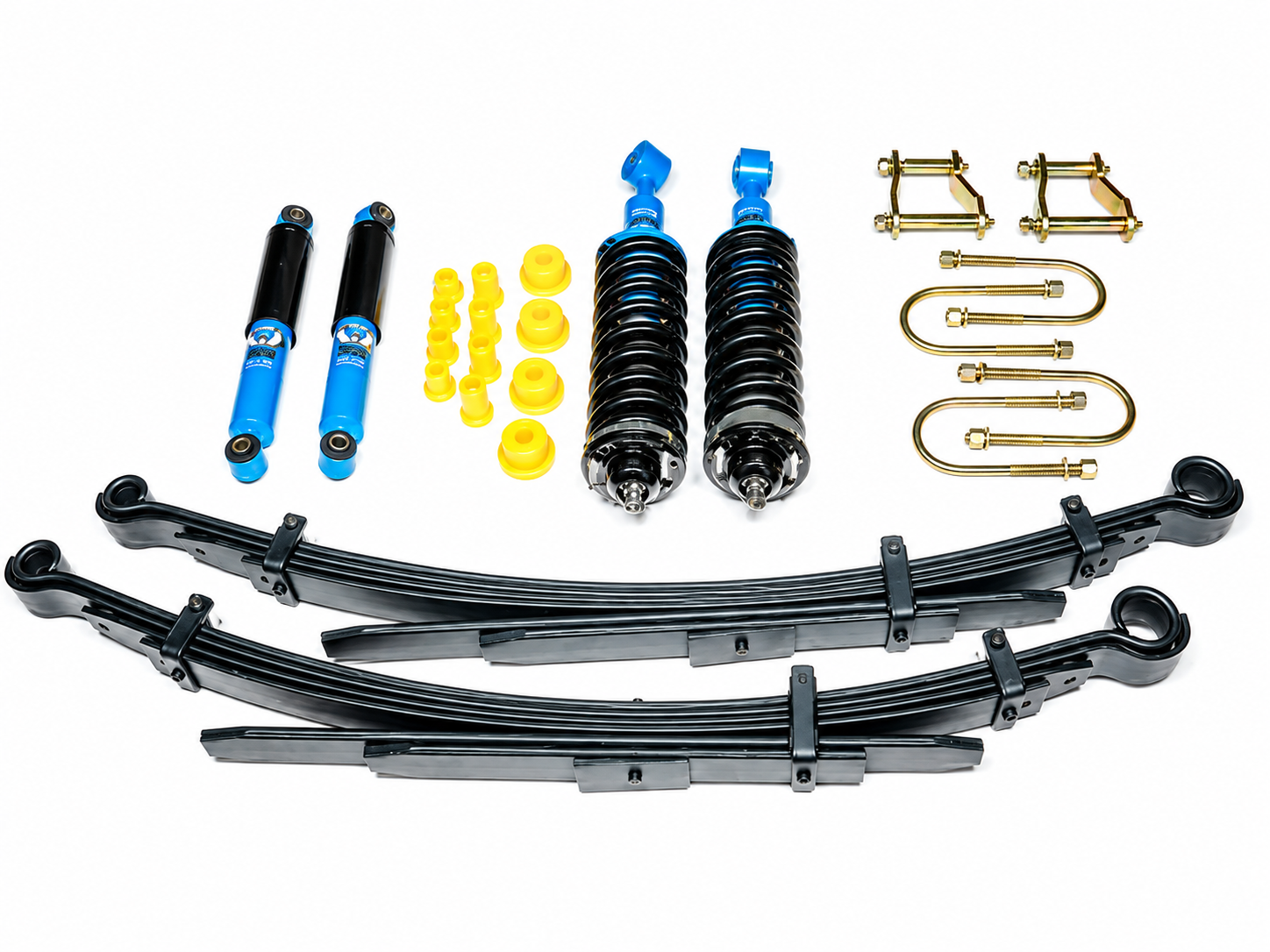

West Coast Suspension complete suspension kit for the Ford Ranger PX3 4WD (Excluding Raptor) (2018-2022), proudly supplied and fitted by PPD Performance. This kit includes every component listed below — choose your spring/shock options where offered.
| Description | Qty | Notes |
|---|---|---|
| Included — Front Suspension | ||
| Strut Cap | 2 | Replacement strut top cap |
| Strut Spacer | 2 | 6mm thick for trimming or raising vehicle |
| Upper Control Arms | 1 | |
| Included — Rear Suspension | ||
| Bush Kit | 1 | Urethane bush |
| Fixed Pin | 2 | 14mm pin |
| Shackle | 2 | Greasable shackle |
| U/Bolt | 4 | Round top U-bolt |
| Centre Bearing Spacer | 1 | Helps reduce tail shaft vibration |
| Choose one — Front Spring | ||
| Coil Spring (Up to 55kg constant) | Up to 55kg constant | |
| Coil Spring (55kg - 85kg constant) | 55kg - 85kg constant | |
| Choose one — Rear Spring | ||
| Leaf Spring (6 (4+2) leaf constant 300kg) | 6 (4+2) leaf constant 300kg | |
| Leaf Spring (7 (5+2) leaf constant 500kg) | 7 (5+2) leaf constant 500kg | |
| Leaf Spring (3 (2+1) leaf parabolic 250kg) | 3 (2+1) leaf parabolic 250kg | |
| Choose one — Shock | ||
| Shock Absorber - Gas Charged | strut / Bump stop kit / Gas charged | |
| Monotube Shock Absorber | High Performance 46mm gas charged / High performance 46mm gas | |
| Monotube Remote Reservoir Shock Absorber | Left side / Right side adjustable / Left side piggy back / Right side piggy back | |
Shock options explained
- Shock Absorber – Gas Charged: our entry-level upgrade and the right choice for most drivers. Twin-tube, nitrogen gas-charged shocks deliver consistent, fade-resistant damping and a comfortable, controlled ride for daily driving, touring and general 4WD work — proven, reliable and outstanding value.
- Monotube Shock Absorber: a performance step up. The monotube design runs a larger 46mm piston in a single high-pressure tube, shedding heat faster and resisting fade under sustained hard use — firmer, more precise control that suits heavier loads, towing and more aggressive off-road driving.

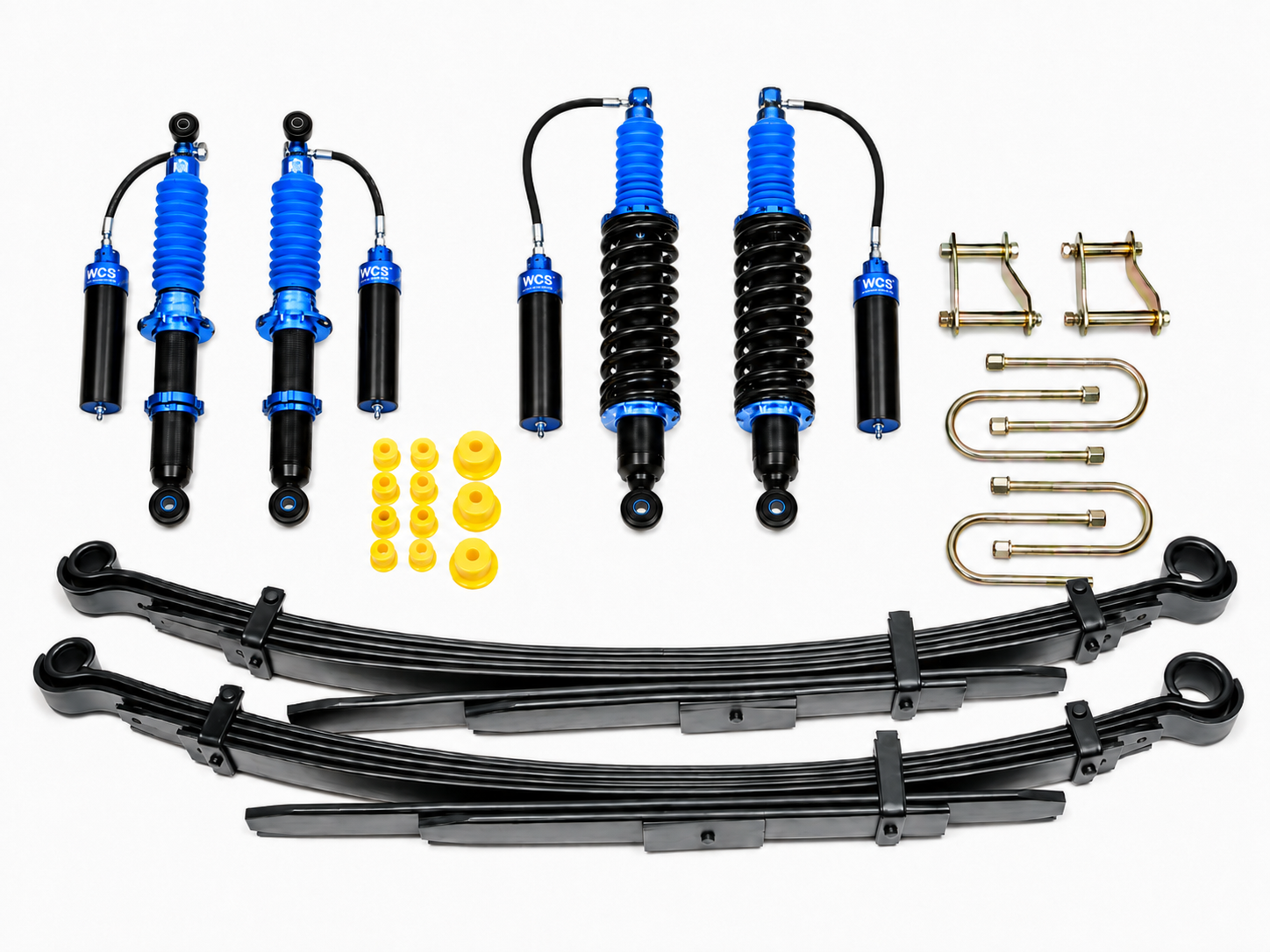

- Monotube Remote Reservoir Shock Absorber: our flagship touring and off-road shock. A monotube body paired with a remote (piggy-back) reservoir adds oil capacity and superior heat management for extreme, prolonged use, while external multi-stage adjustment lets you dial the damping to your load and terrain. Built for serious off-road, corrugations, high-speed dirt and competition.
Shipping Policy
Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKLIFT is provided on checkout. We can provide door to door delivery options for an extra fee, Please contact our sales team on 1300 773 494 or sales@ppdperformance.com.au within 24hrs of the order being placed if you would like us to quote this option for you.
Factory-assembled option available (+$120). This kit includes a strut top, so we can supply the struts and coils pre-assembled — tick the Assembled option at checkout to add assembly for $120.
