A SHOCK THAT GOES THE DISTANCE

The uniquely bulged tube design is one of the features that sets this shock apart from the rest. Specifically designed to create more surface area and carry more of the all-important oil, this shock can dissipate heat from friction more easily. Because it can hold much more oil than a regular shock or a gas shock, the foam cell shock is a popular choice for long-distance 4WD trips across Australia.

FOAM CELL TECHNOLOGY

Ever wondered what exactly this talk about foam cells is and what it is they do? Well, what basically looks like just an ordinary piece of foam is actually foam of the highest quality available. It is specifically designed to withstand long periods of intense heat without suffering damage or deterioration. Each piece of foam is filled with thousands of tiny gas bubbles in order to maintain even pressure levels within the shock absorber itself. The foam insert itself acts as a divider between oil and gas inside the shock to prevent the formation of bubbles also known as cavitation. Because the gas never actually comes into contact with the oil, foam cell shocks are far less likely to suffer from shock fade.

TOUGH DOG FOAM CELL SHOCKS SPECS

• Large internal bore
• Twin tube design
• Foam Cell Insert
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

Select the required shock:
FC43069 – Suits up to 40mm Lift – use with 0-300kg Light Load or 300kg Constant Load Rear Leaf Springs
FC43070 – Suits up to 40mm Lift – use with 500kg Constant Load Rear Leaf Springs

Click Here for Warranty Information

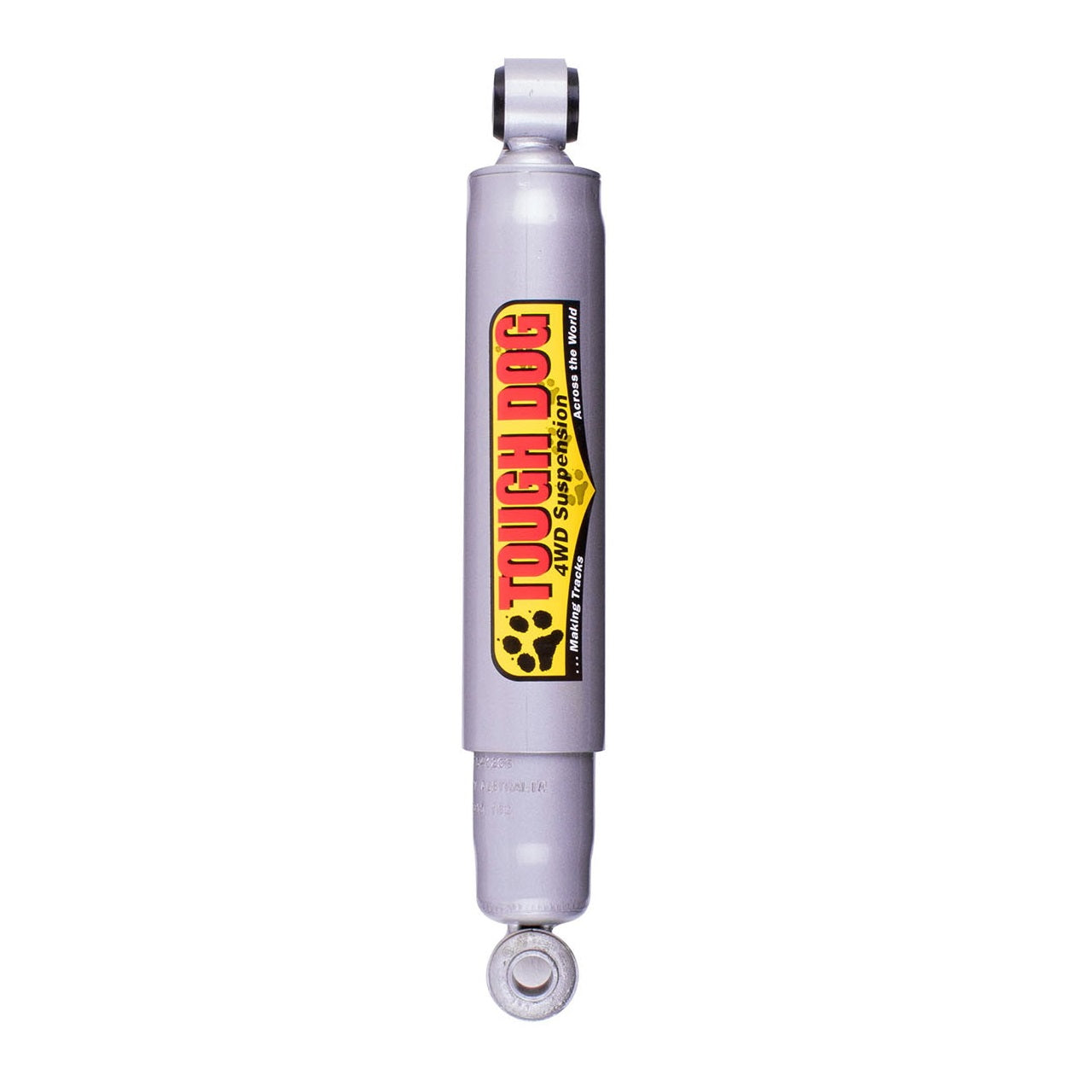

Please note images are only a representation of the parts and may not necessarily be the image of the part number you are viewing.
