Toyota Hilux (2025-2030) N90 40mm Suspension Lift Kit - Tough Dog Adjustable

Toyota Hilux (2025-2030) N90 40mm suspension lift kit - Tough Dog Adjustable

This kit is a complete Tough Dog Suspension Lift Kit with 40mm 9 Stage Adjustable Shocks, Raised Springs and required fitting components.

Tough Dog 9 Stage Adjustable Shocks feature an external adjuster dial at the base of the shock to alter the shock damping. Adjustments can be made to suit your personal preference or terrain by simply turning the dial to a softer or firmer setting. As well as being fully adjustable, these shocks are equipped with Tough Dog Foam Cell technology, minimising aeration and cavitation to maximise the shocks ability to resist fade, and perform reliably in harsh and demanding conditions.

Tough Dog coil springs are designed and manufactured in Australia to exacting standards to stand up to some of the harshest conditions found anywhere in the world. Made from X5K spring steel, coil springs are designed with less material while maintaining superior ride quality & load carrying characteristics. The spring retains its original memory even after heavy loading. THE RESULT? A lighter, tougher coil that can handle just about anything you can throw at it.

Tough Dog progressive rate leaf springs feature primary and secondary stage leaves to ensure that the vehicles ride remains uncompromised. As the spring is compressed under load, the heavier second stage is engaged to prevent excessive sag. The production process ensures maximum life, corrosion protection and prevention against sag.

Additionally greasable pins, shackles, urethane spring bush kit and U-bolts make this an all-inclusive package.

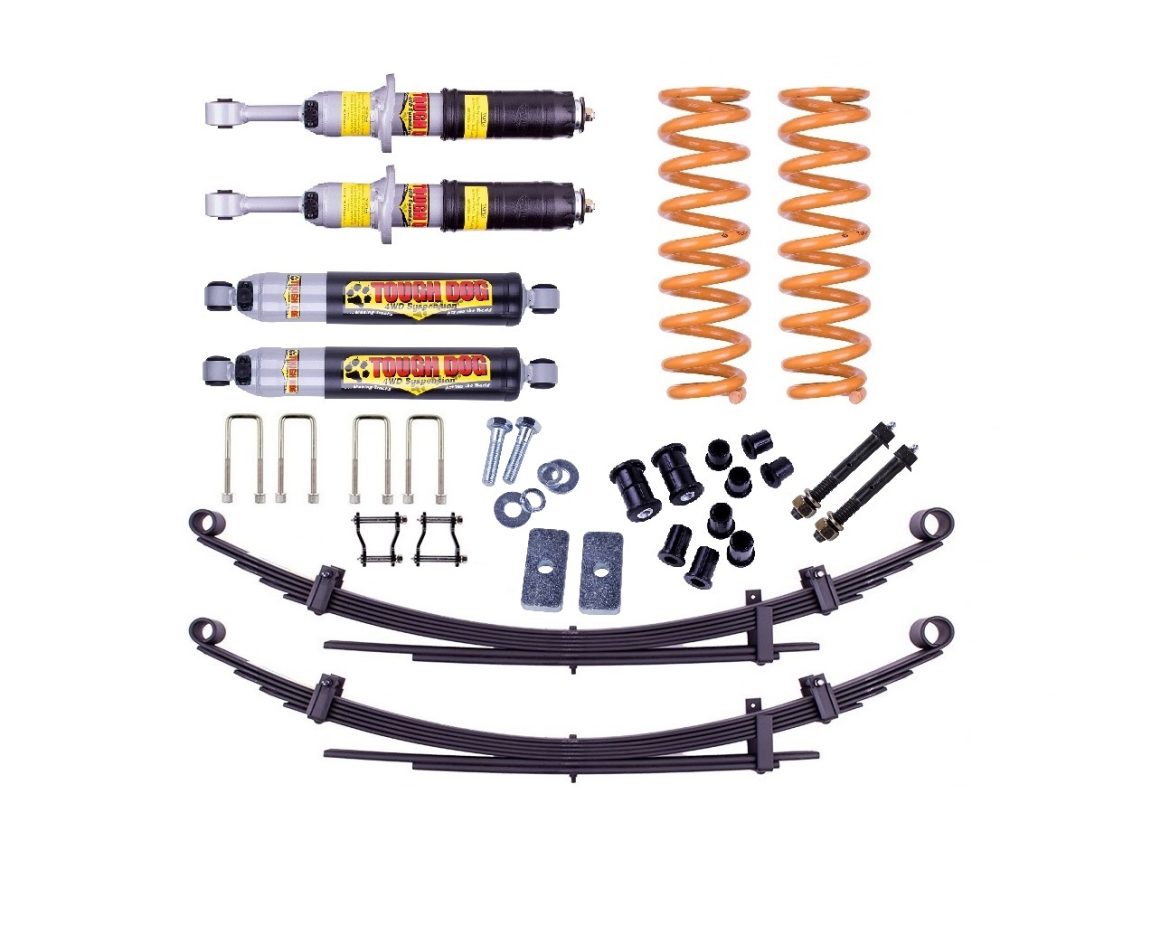

This complete suspension lift kit comprises of the following products:

1 Pair Tough Dog 40mm Adjustable Front Struts

1 Pair Tough Dog 40mm Adjustable Rear Shocks

1 Pair Front Raised Tough Dog Coils

1 Pair Rear Raised Tough Dog Leaf Springs

1 Tough Dog Spring Bush Kit

1 Pair Tough Dog Greasable Shackles

1 Pair Tough Dog Greasable Pins

1 Tough Dog Driveshaft Spacer Kit

1 Tough Dog Front Sway Bar Spacer

4 Tough Dog U-Bolts

Approximate Lift Height: 50mm

Select from the Front Accessories & Rear Load options to select the most appropriate spring rate for your vehicles setup.

Constant Load refers to fixed accessories that will remain on the vehicle at all times such as a steel tray, canopy, rear draws, rear bar with spare wheel carrier and alike. Constant Load springs are designed to be used with the minimum constant load rating on the vehicle at all times.

Product Notes:
Degree of raised height may vary depending on life and/or age of the vehicle, accessories fitted, material used for accessories and some factory options.
